Noctua NF-A12x25 PWM
120 mm, 1 xFree shipping from 50.–
tonight with flash delivery
to check if flash delivery is available to you.
Colour
Product details

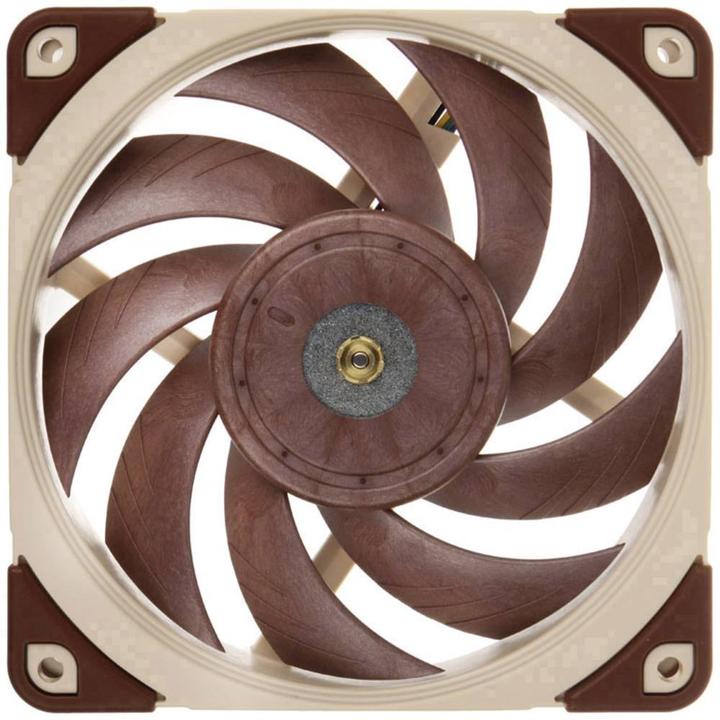

The NF-A12x25 is a highly optimized 120mm fan of the next generation, integrating Noctua's latest innovations in aerodynamics to achieve previously unmatched cooling performance. It utilizes cutting-edge technologies such as the Advanced Acoustic Optimization frame and Flow Acceleration Channels, combined with a record peak gap of just 0.5 mm. This is made possible by the use of the novel Sterrox liquid crystal polymer (LCP) as well as a metal-reinforced motor hub and shaft for maximum precision. Following the Noctua A-series approach, the NF-A12x25 is a true all-rounder that delivers excellent results across all types of applications, whether they are low-resistance, airflow-oriented tasks like case cooling or high-performance applications. It is also suitable for pressure-demanding scenarios such as on heatsinks and water coolers. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a low-noise adapter to reduce the maximum speed from 2000 to 1700 RPM. Equipped with exceptional smooth operation, Noctua's SSO2 reference bearing, a rich accessory package, and a 6-year manufacturer’s warranty, the NF-A12x25 is a premium quality product through and through. Its superior efficiency, state-of-the-art design, and groundbreaking materials make it an elite choice for the highest demands.
Fan dimension | 120 mm |
Items per sales unit | 1 x |
power connector | 4-pin PWM |
Airflow | 102.10 m³/h |
Max. noise level | 22.60 dB |
LED colour | without LED |
Item number | 9161307 |
Manufacturer | Noctua |
Category | PC fans |
Manufacturer no. | NF-A12x25 PWM |
Release date | 2.8.2018 |
Sales rank in Category PC fans | 11 of 2155 |
External links |
Colour | Beige |
Exact colour description | Beige, Brown |
Fan dimension | 120 mm |
PC fan type | PWM fan |
Fan type | Standard |
Max. Speed | 2000 RPM |
Max. noise level | 22.60 dB |
Airflow | 102.10 m³/h |
Static pressure | 2.34 mmH20 |
LED colour | without LED |
power connector | 4-pin PWM |
Power consumption (active) | 1.68 W |
input voltage | 12 V |
Cable length | 0.50 m |
Electric current | 0.14 A |
Items per sales unit | 1 x |
Scope of delivery | 4-pin adapter, Push Pins, Screws, Y-split cable |
CO₂-Emission | |
Climate contribution |
Length | 120 mm |
Width | 120 mm |
Height | 25 mm |
Weight | 360 g |
Length | 21.20 cm |
Width | 15.50 cm |
Height | 4 cm |
Weight | 368 g |
