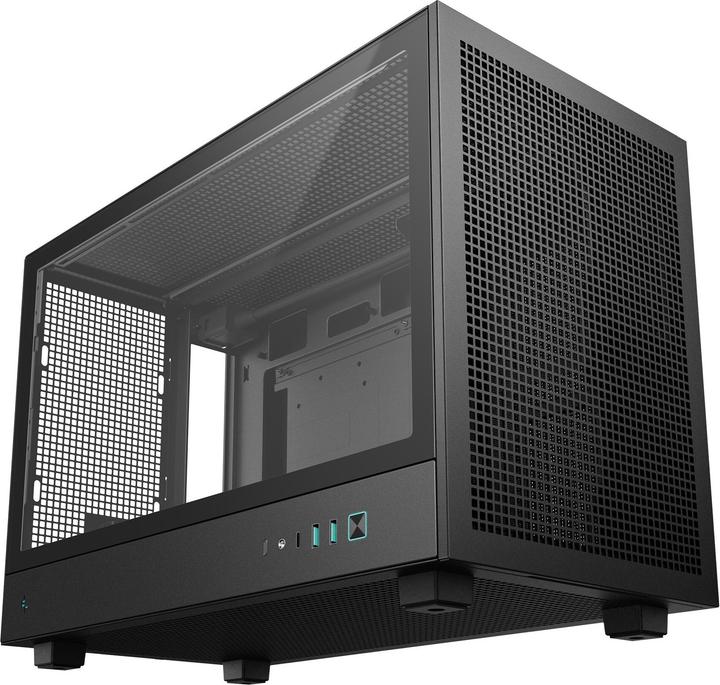

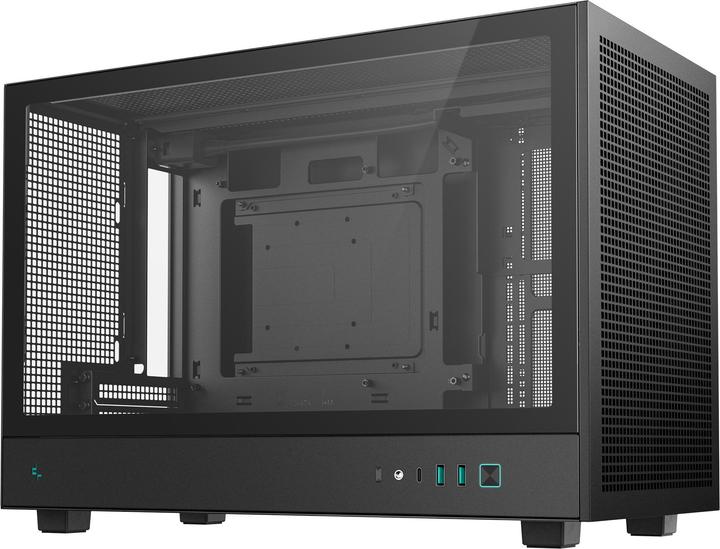

Deepcool CH260

mATX, Mini-ATX, Mini-ITX
free shipping
Ratings
BrandMore from Deepcool
Pre-order without confirmed delivery date

Colour

Product details

The CH260 is an extended version of the classic DeepCool ITX case CH160, it can accommodate up to an M-ATX motherboard and inherits the high airflow heritage thanks to the all-steel mesh panel.

The Micro Form Factor CH260 features a tempered glass side panel to showcase the modern internal components, while the perforated top and front panels can be complemented with PIXEL rubber pieces. The case also fulfils the increasing requirements for motherboards with rear connectors with a larger clearance of 29.6 mm in the rear panel.

The CH260 offers multiple options for major component compatibility and supports full-size GPUs up to 388mm in length or even longer at 413mm without front fan placement. An ATX PS2 power supply can also be installed in the chassis, which features a removable mounting bracket to make room for easy cable management.

Key specifications

PC case design
Midi Tower
Max. length graphics card
413 mm
Front connectors
2x USB 3.0, Audio in/out, USB Type C
PC case features
Side windows
Max. height CPU cooler
174 mm
Item number
53689559

General information

Manufacturer
Deepcool
Category
PC case
Manufacturer no.
R-CH260-BKNGM0-G-1
Release date
18.12.2024
Sales rank in Category PC case
509 of 2665

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Glass, Metal, Plastic
Material
Acrylonitrile butadiene styrene (ABS), Spcc, Tempered Glass

PC case properties

PC case design
Midi Tower
Form factor
Micro ATX (mATX), Mini-ATX, Mini-ITX
"Number of 2.5"" drive slots"
1 x
Number of expansion card slots
4 x
Max. length graphics card
413 mm
Max. height CPU cooler
174 mm
Max length of power supply
150 mm
PC case features
Side windows

Connections

Front connectors
2x USB 3.0, Audio in/out, USB Type C

Cooling properties

Number of fan slots
6 x
Fan location
Front side, Rear side, Top side
Radiator locations
Rear side, Top side
Cooling properties
Water cooling possible

Front side

Fan mount locations
2x 120mm

Rear side

Fan mount locations
1x 120mm
Radiator mount locations
1x max. 120mm

Top side

Fan mount locations
3x 120/140 mm
Radiator mount locations
1x max. 120/240/280/360mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
31.25 cm
Length
43.80 cm
Width
22.50 cm
Weight
5.30 kg
