Best selling Water cooling reservoirs from Alphacool

On this page you’ll find a ranking of the best Water cooling reservoirs from Alphacool. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

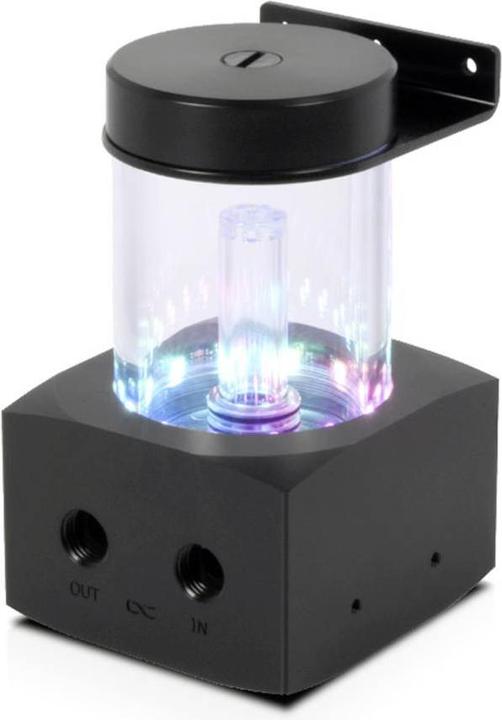

1. Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm inkl. VPP Apex D5

The Alphacool Eisbecher Aurora reservoir features an integrated pump top designed for powerful D5 pumps and comes with a VPP Apex pump. The reservoir tube is made of glass, while the D5/VPP pump top and the lid are made of acetal. This combination of materials gives the reservoir a distinctive and elegant appearance. The wow factor is provided by 12 digitally addressable RGB LEDs in the pump top, along with the Lighttower water effect inside the glass tube.

Extensive mounting options:
Mounting option 1: The package includes stand feet that allow for mounting the reservoir at the bottom of the case.
Mounting option 2: The package also includes 120mm/140mm mounting brackets, which enable the Eisbecher Aurora reservoir to be attached to available fan slots, radiators, or directly to the fans on radiators.

Digitally addressable RGB lighting: 12 digitally addressable RGB LEDs illuminate the glass tube.

2. Alphacool PUM Core 200 Aurora D5/VPP Balance Tank Acetal/Acrylic with VPP655 PWM Pump

The Alphacool Core 200 Aurora D5/VPP reservoir is a high-quality solution for the water cooling of computer systems. It combines an elegant design with powerful functionality. The reservoir is equipped with a VPP655 PWM pump, which ensures efficient coolant circulation. The tube of the reservoir is made of robust acrylic, while the pump top and lid are made of acetal, providing both stability and an appealing appearance. A special highlight is the 12 digitally addressable RGB LEDs integrated into the pump top, which create impressive lighting effects. These LEDs allow for individual customization of the lighting effects and enhance the visual appeal of the system. The reservoir also offers versatile mounting options, enabling flexible integration into various case configurations.

- Integrated VPP655 PWM pump for efficient cooling
- Robust acrylic tube with external threads for increased stability
- 12 digitally addressable RGB LEDs for customizable lighting effects
- Versatile mounting options with stand feet and mounting frame
- G1/4" internal threads for easy connection options.

Alphacool PUM Core 200 Aurora D5/VPP Balance Tank Acetal/Acrylic with VPP655 PWM Pump
Water cooling reservoirs
CHF149.–

Alphacool PUM Core 200 Aurora D5/VPP Balance Tank Acetal/Acrylic with VPP655 PWM Pump

3. Alphacool ES 4U reservoir with D5 top

The Alphacool ES 4U reservoir with D5 top is a development for the Enterprise Solutions series. It features an integrated pump top for powerful D5 pumps. The combination of the pump top and reservoir is designed to be mounted directly in the front of 4U servers. The positioning of the reservoir in the case and the use of an acrylic cover significantly facilitate the maintenance and monitoring of the water circuit.

The ES 4U reservoir has a total of 3 inlets and one outlet. All connection options use a G1/4" thread. Two inlets are located on the acrylic cover at the front. These inlets allow for perfect filling or draining of the reservoir. The inlet and outlet for integrating the reservoir into the water circuit are located on the back of the reservoir.

The ES reservoir is mounted in the front of a 4U server rack. The acrylic cover allows for visual monitoring of the coolant level. The G1/4" inlets in the cover enable easy filling, draining, and bleeding of the water circuit.

The ES 4U reservoir features an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump holder, a pump O-ring, and all screws are included in the delivery.

Technical specifications:
L x W x H: 121.6 x 101.2 x 70 mm
Pump compatibility: D5
Housing material: Acetal
Cover material: Acrylic
Connections: 4x G1/4" internal thread
Maximum operating temperature: 60 °C
Pressure tested: 0.8 Bar
Weight: 674 g
Color: black.

Alphacool ES 4U reservoir with D5 top
Water cooling reservoirs
−11%
only 2 of 2 remaining on sale
CHF93.50 was CHF105.–

Alphacool ES 4U reservoir with D5 top

4. Alphacool AGB Core 120mm Reservoir VPP/D5

The Alphacool Core 120mm Reservoir VPP/D5 is a high-quality expansion tank for water cooling systems, impressing with both its functionality and appealing design. With a compact construction, the reservoir is ideal for use in small cases without sacrificing performance. The integrated aRGB lighting provides an attractive look and can be harmoniously integrated into various system configurations. The reservoir is made entirely of robust acrylic, which not only ensures appealing transparency but also supports the product's durability. Installation is simple and user-friendly, as the Core Push Mounting Kit is included, allowing for tool-free setup. The special G1/4" connections made of chrome-plated brass are designed to minimize the risk of leaks while offering a clear, functional appearance.

- Integrated aRGB lighting for customization
- Robust acrylic construction for durability and transparency
- G1/4" connections made of chrome-plated brass to prevent leaks
- Easy, tool-free installation with the Core Push Mounting Kit.

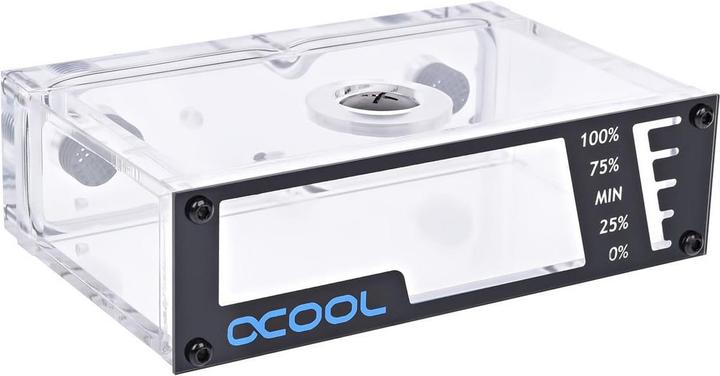

5. Alphacool Icebox - Single Laing D5

The craftsmanship is of very high quality. The brushed metal that surrounds the container creates a visually cohesive overall appearance. The front is finished in matte black and features a scratch-resistant soft-touch surface. The ice compartment is installed in two of the front 5.25" bays, allowing for a view of the container and enabling the fill level to be read through the backlit viewing window. The Alphacool logo on the front can also be illuminated when the 3-pin connector is connected to a power source.

For initial filling, there are two 1/4" openings available on the top. To refill the coolant, the filling nozzle on the front can be unscrewed and pulled out. To drain the liquid, there are also two 1/4" openings located on the bottom. On the right side at the back, two lighting modules for 5mm LEDs are placed behind the viewing window, allowing for a unique look and illumination. On the left side, there are also two openings for filling or draining the liquid. The last two 1/4" threads are designated for the inlet and outlet. A bubble down module has been installed behind the inlet to prevent turbulence that could introduce air into the water circuit.

6. Alphacool 120/140mm holder for ice cream tubs - 2 pieces

With the mounting bracket, all Alphacool Eisbecher expansion tanks can be mounted on all standard radiators with 120 and 140 mm fans. This maximizes your mounting options. The installation is incredibly simple. Just remove the bracket included with the Eisbecher and replace it with the new one. Each bracket is held in place by two small screws. The inner elongated mounting holes are designed for 120 mm fan positions, while the outer ones are for 140 mm fan positions. With this mounting kit, the Eisbecher expansion tanks can be installed space-saving and easily in most cases. For example, if you have a radiator mounted at the front with intake fans, you can mount the Eisbecher at the back without affecting the airflow. Of course, you are free to explore additional mounting options. Key features: Type mounting kit, material stainless steel, product color black, supported processor sockets.

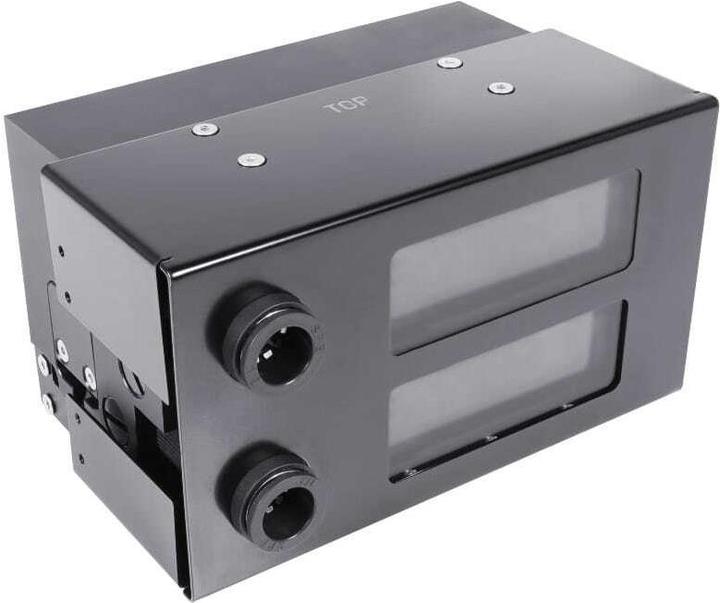

7. Alphacool AGB ES 2U Reservoir VPP with flow/temperature sensor

The Alphacool ES 2U Reservoir is a versatile expansion tank optimized for use in 2U server cases. The quick-release fittings on the front facilitate fast and easy maintenance. With the integrated flow and temperature sensors, the cooling system can be continuously monitored. The illuminated viewing window allows for easy reading of the fluid level at any time.

Optimized for servers, the Alphacool All-in-One expansion tank has been specifically designed for 2U server cases. The device is compactly built to take up minimal space in the server case. Thanks to the quick-release fittings on the front, the cooling system can be filled and bled quickly and easily. The illuminated viewing window enables constant monitoring of the fluid level in the system. The Alphacool ES 2U Reservoir is compatible with D5 format pumps, such as the Alphacool VPP Apex.

The reservoir features a temperature sensor with a measurement range of -40 to 125 °C, which connects to the motherboard via a 2-pin connector. Additionally, a flow sensor, connected via a 3-pin connector, allows for continuous monitoring of the water flow in the cooling system.

Technical specifications:
Dimensions (L x W x H) (without pump): 146.00 x 99.66 x 83.90 mm
Material: Metal, Acetal
Weight: 1500 g
Connections (front): 2x quick-release G1/4"
Connections (back): 1x G1/4" In | 1x G1/4" Out
Flow sensor connection: 3-Pin
Temperature sensor connection: 2-Pin
aRGB connection: 3-Pin 5V
Pump compatibility: D5/VPP
Maximum operating temperature: 60 °C
Pressure tested: 0.8 bar
Color: black.

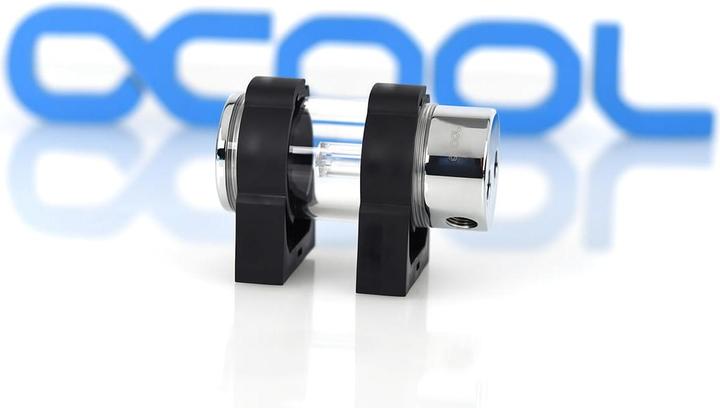

8. Alphacool single for DC-LT pumps

The optimal addition to the Alphacool DC-LT Plexi attachment, including the Alphacool DC-LT Ceramic 12 Volt pump. The Alphacool expansion tank for DC-LT pumps is another module for expanding and enhancing the Alphacool DC-LT Ceramic 12 Volt pump. This is based on the already modified pumps with an Alphacool DC-LT Plexi attachment. These can now be equipped with an expansion tank with just a few simple steps. Just place the tank on the attachment using the included gasket, tighten the four supplied screws at the corners, and you're done! Additionally, a 1/4" threaded opening has been incorporated on the side. This can be used as an inlet or for a lighting module.

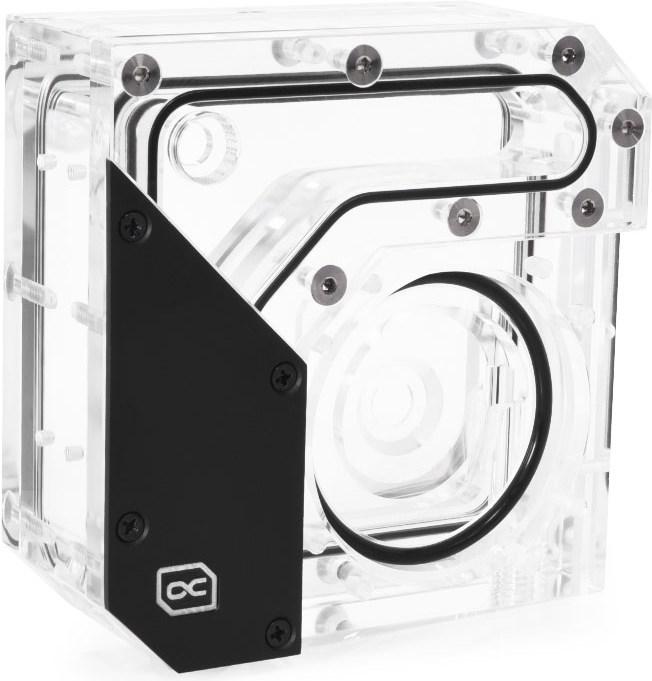

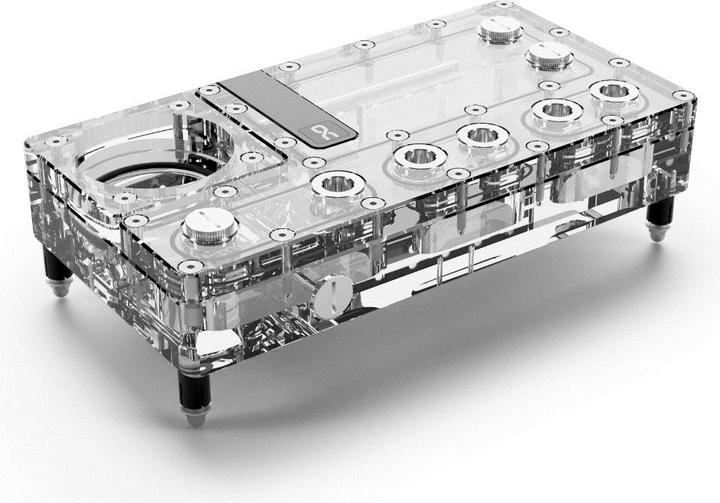

9. Alphacool Core Distro Plate 240 Right VPP/D5

The Core Distro Plate 240 from Alphacool is an innovative reservoir specifically designed for performance-oriented custom water cooling systems. It significantly simplifies the planning, construction, and maintenance of complex water circuits. The thoughtful design features chrome-plated G1/4" brass fittings that are not screwed into the acrylic to minimize the risk of leaks. Instead, the fittings are two-part and equipped with O-rings, ensuring optimal sealing. The installation of the Distro Plate is straightforward and tool-free, using the included Core Push Mounting Kit, which allows for secure attachment to the case panel or on a radiator. These features make the Core Distro Plate an ideal choice for anyone who values reliable and aesthetically pleasing water cooling.

- Chrome-plated G1/4" brass fittings for high sealing efficiency
- Two-part fittings with O-rings to prevent leaks
- Easy and tool-free installation with Core Push Mounting Kit
- Optimal planning and maintenance of complex water circuits
- High-quality acrylic material for a clear and functional appearance.

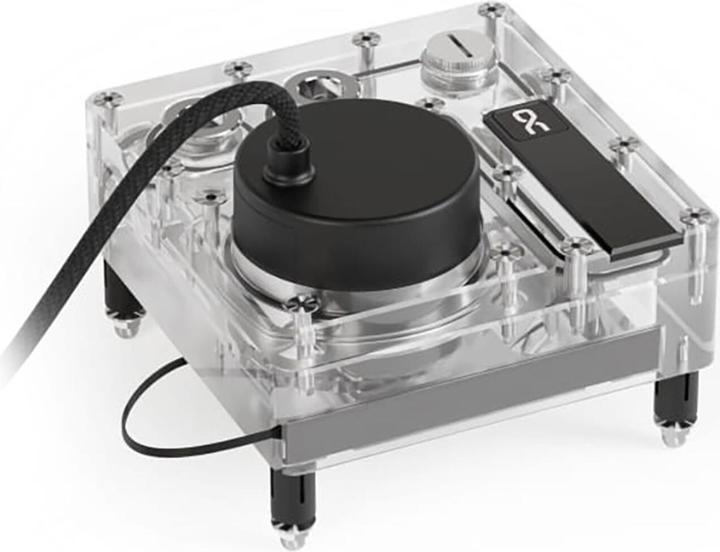

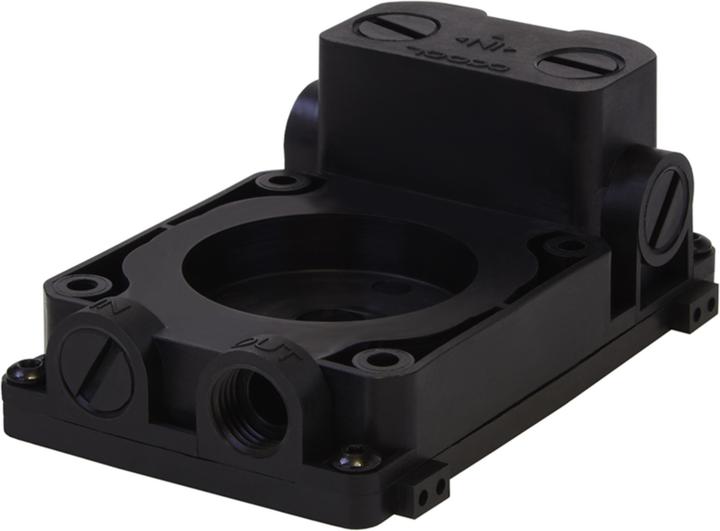

10. Alphacool ES Reservoir 1U

The Alphacool ES Reservoir 1U is a highly advanced expansion tank for water cooling systems, specifically designed for use in compact environments such as 1U server racks. With an extremely compact design, this reservoir provides an optimal solution for cooling hardware without taking up valuable space. It features an integrated pump top for DDC pumps, making installation and integration into existing cooling systems easier. The seven G1/4 inch connections allow for flexible arrangements and simple integration into the water cooling circuit. Additionally, radiators can be mounted directly on the reservoir, reducing the need for additional tubing and increasing system efficiency. The reservoir is made from high-quality materials and offers reliable performance for demanding applications.

- Integrated pump top for DDC pumps for space-saving
- Compatible with 1U server racks for optimal integration
- Seven G1/4 inch connections for flexible installation
- Direct mounting of radiators on the reservoir possible
- Easy attachment to 2.5 inch drive slots.
