WaveShare ESP32-S3 development board

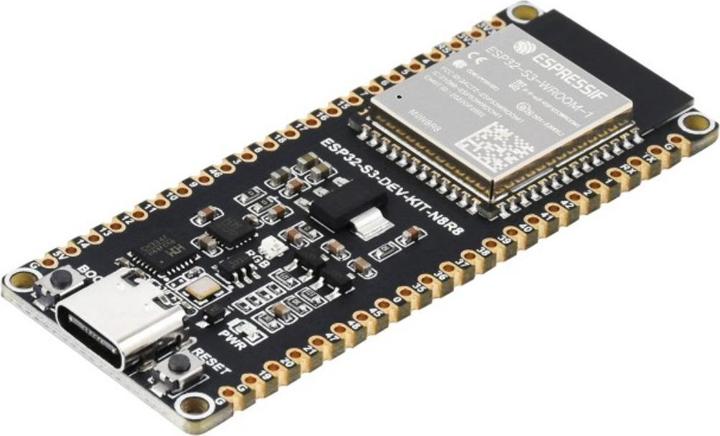

The ESP32-S3-DEV-KIT-N8R8 is a compact microcontroller development board with a variety of interfaces. It features the powerful ESP32-S3-WROOM-1-N8R8 module, which includes a 240MHz Xtensa 32-bit LX7 dual-core processor, 512KB SRAM (TCM), and 8MB PSRAM. The board is also equipped with a CH343 serial port and a CH334 USB HUB dual-chip, allowing for simultaneous USB and UART usage. With its compatibility with the ESP32-S3-DevKitC-1 development board and the ability to connect a wide range of peripherals, it offers convenient development and application options. Additionally, it supports development environments such as ESP-IDF, Arduino, and MicroPython, enabling a quick start in development and customization for various products.

Features:

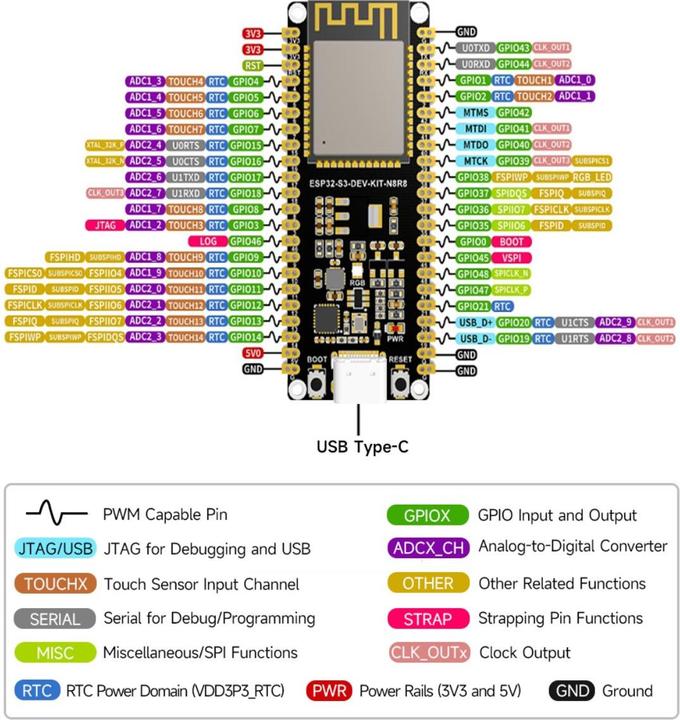

The ESP32-S3-DEV-KIT-N8R8 is compatible with the pin layout of the ESP32-S3-DevKitC-1 development board.

Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 24363
Onboard Module: ESP32-S3-WROOM-1-N8R8
Processor: Xtensa 32-bit LX7 Dual-Core
Processor Clock Speed: 240MHz
SRAM: 512KB
ROM: 384KB
PSRAM: 8MB
Flash Memory: 8MB
Connectivity: 2.4GHz Wifi, Bluetooth 5 LE, Bluetooth Mesh
Connections: 1x USB Type-C
USB/UART Chips: CH343, CH334
Supported Software: ESP-IDF, Arduino, MicroPython
Dimensions: 63.30 x 25.40 x 4.8mm
Weight: 14.3g

Included in the package:
1x ESP32-S3-DEV-KIT-N8R8
2x 40PIN male header strips.
