WaveShare 800×480 7.5inch 3-colour E-Ink Display Raspberry Pi HAT

This is an XXL 3-colour E-Ink / ePaper display module 7.5inch with 800×480 pixel resolution, with integrated controller communicating via SPI interface. The extremely low power consumption makes it super suitable for battery powered applications. These displays are also used in retail as price tags, where they run on a battery for several years. The display has a very good viewing angle and can be read very well even in sunlight. Since this display is operated in 3 colours, it takes approx. 31 seconds to build up the image. This means that it is not intended for applications where the display has to be updated every 1 second.

Features 3-colour Raspberry Pi eInk display:
Onboard level converter therefore compatible with 3.3V and 5V microcontroller
Images on the display remain even without power supply
Ultra low power consumption
Basically power is only needed for refreshing
SPI interface for connection to controller boards such as Raspberry Pi, Arduino, ESP8266 or ESP32

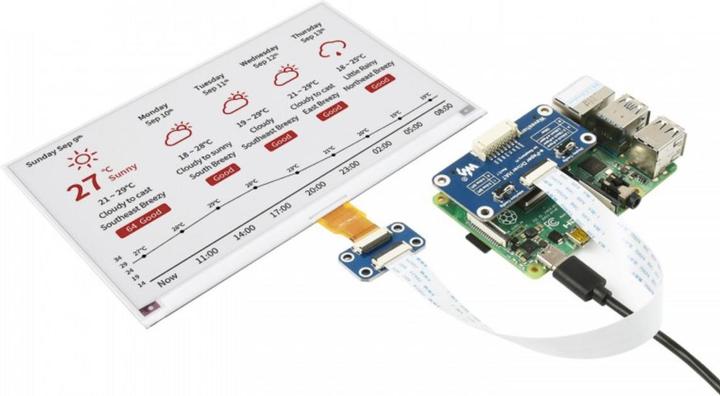

Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
Good documentation and sample code available at Waveshare Wiki
Programming examples available for the following controllers: Arduino, stm32 and Raspberry Pi

Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 13505
SKU: 13505
Part Number: 7.5inch e-Paper HAT (B)
Operating voltage: 3.3V / 5V
Interface: SPI
Outer Dimension: 170.2mm × 111.2mm
Display Dimension: 163.2mm × 97.92mm
Pixel size: 0.205mm × 0.204mm
Resolution: 800×480
Display Colour: Black, White, Red
Grey Level: 2
Full Refresh Time: 16s
Refresh Power: 38mW(typ.)
Standby Power: <0.017mW
Viewing Angle: >170
Weight: 180g

Included in delivery:

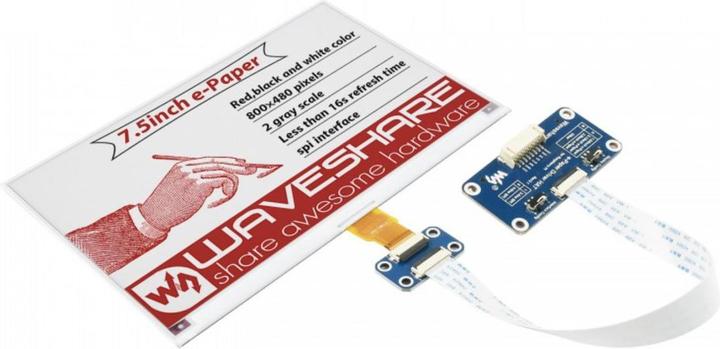

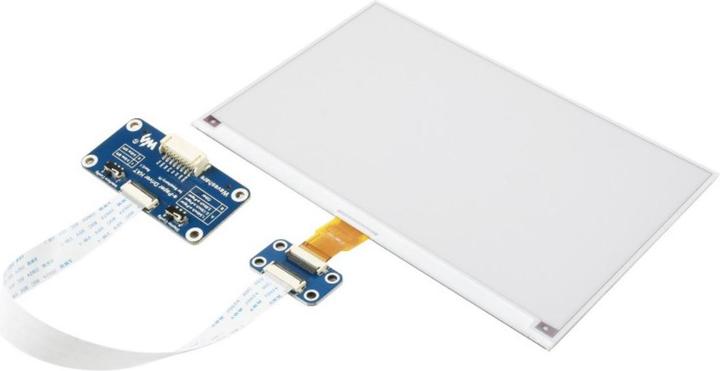

1x 800×480 7.5inch 3-colour e-ink display Raspberry Pi HAT
1x e-Paper Driver HAT
1x mounting material for Raspberry Pi
1x PH2.0 8-pin 20cm cable for Arduino or alternative microcontroller.
