WaveShare 240x280 1.69inch LCD Display Module

Ratings
Delivered between Tue, 29.4. and Wed, 30.4.
More than 10 items in stock at third-party supplier
Supplied by

Product details

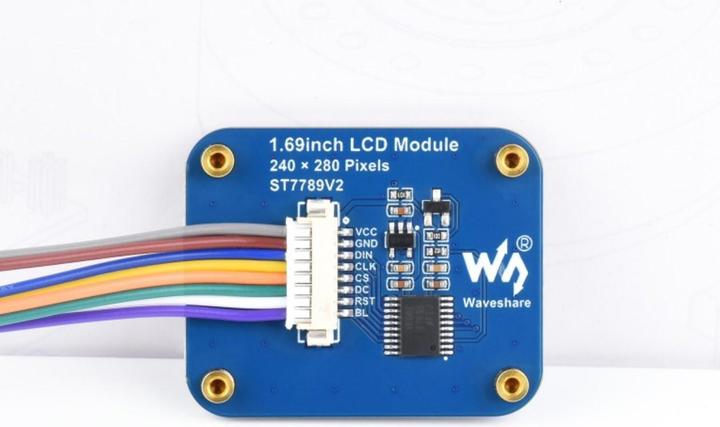

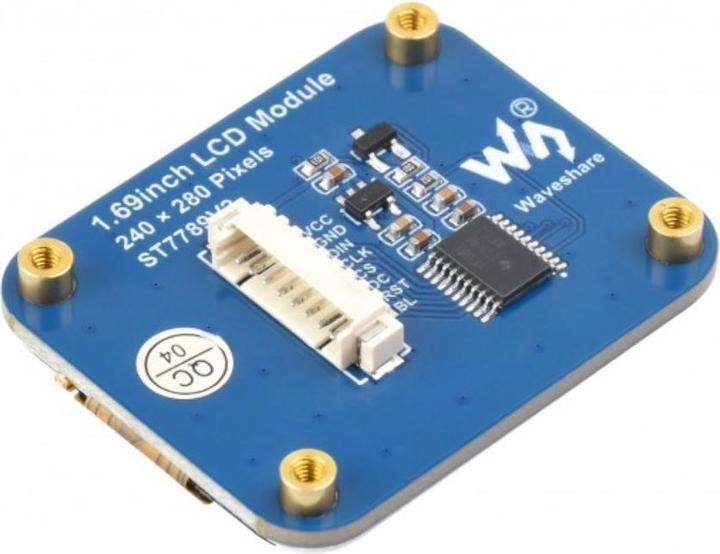

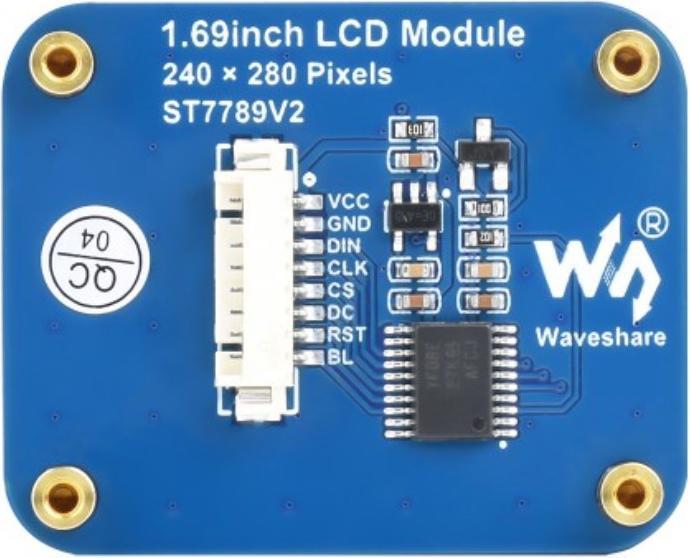

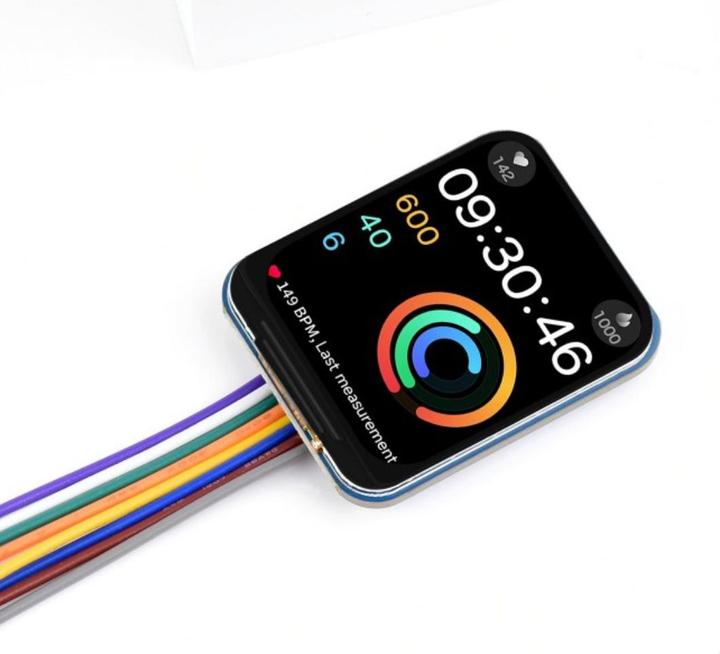

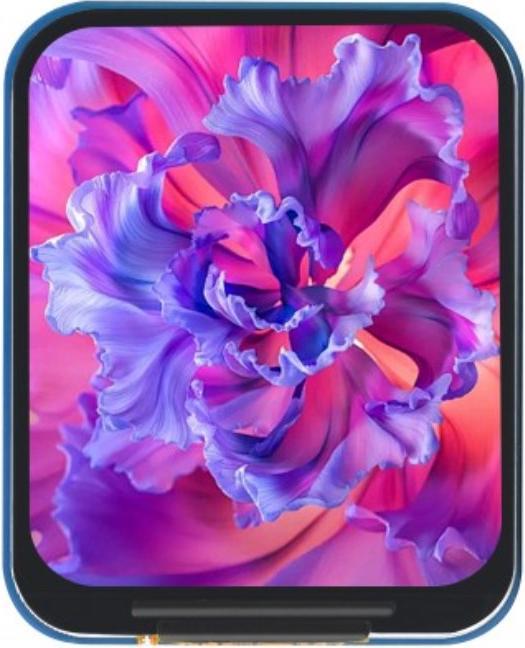

The 240x280 1.69 inch LCD display module is a small display that can be easily controlled via an SPI interface with a Raspberry Pi, Arduino, or STM32. The display also features a built-in voltage converter and uses the ST7789V2 control chip. It has a resolution of 240x280 and can display 262,000 colors on each of those pixels. Thanks to the SPI interface and the size of the display, the module is ideal for mobile projects and beginners.

Features:

  • The module has an SPI interface, minimizing the number of required IO pins.
  • It supports controller boards such as Raspberry Pi, Arduino, and STM32.
  • It includes an onboard voltage converter for 3.3V/5V microcontrollers.

Technical Details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 24382
  • Operating Voltage: 3.3V/5V
  • Display Size: 27.972 x 32.634 mm
  • Display Diagonal: 1.69 inches
  • Communication Interface: SPI
  • Display Panel: IPS
  • Control Chip: ST7789V2
  • Resolution: 240x280 pixels (RGB)
  • Colors: 262,000
  • Display Viewing Angle: 4-R5 (mm)
  • Pixel Pitch: 0.11655 x 0.11655 mm
  • Dimensions: 31.5 x 39.0 x 7.2 mm
  • Weight: 19 g

Package Contents:

  • 1x 240x280 1.69 inch LCD display module
  • 1x 8-pin GH1.25mm to female Dupont cable, 20 cm.

Key specifications

Item number
36641475

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
23.6.2023

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 240x280 1.69inch LCD display module, 1x 8pin GH1.25mm to female dupont cable 20cm

Product dimensions

Length
39 mm
Width
31.50 mm
Height
7.20 mm
Weight
19 g
