Votronic 1430 Bluetooth Connector S-BC incl. Energy Monitor App

Bluetooth Connector S-BC by Votronic

The Votronic Energy Monitor consists of a special communication module (Bluetooth Connector S-BC) that, when used with a Votronic solar charge controller (from 2014 serial number 14Vxx.xxxxx) and/or the LCD Solar Computer S and/or the LCD Battery Computer S or VPC Jupiter with Smart Shunt, transmits the values displayed on the corresponding screen to a mobile device via Bluetooth. The required app for Android or iOS is available for free in the Google Play Store and iOS App Store.

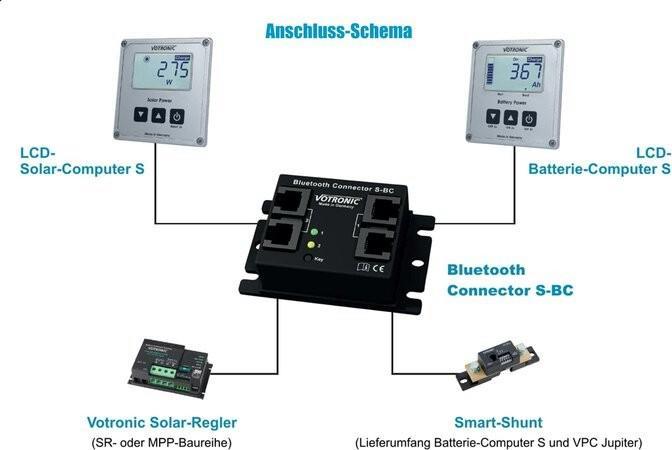

Connecting the Bluetooth Connector S-BC is incredibly simple. It is connected using the modular cable included in the package between the Votronic solar charge controller and the LCD Solar Computer S or between the Smart Shunt and the LCD Battery Computer S or VPC Jupiter. The device has 2 inputs and outputs each, allowing one solar controller with LCD Solar Computer and one Smart Shunt with LCD Battery Computer or VPC Jupiter to be connected to a single communication module.

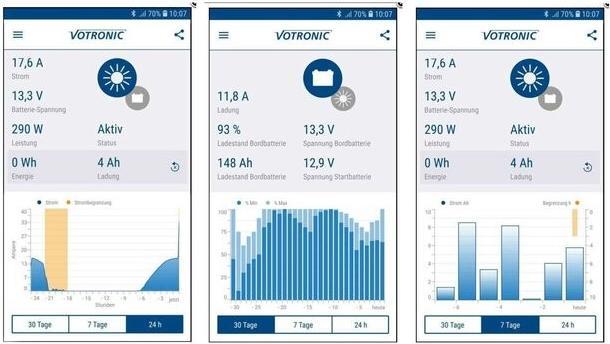

This way, all information about the onboard battery, such as voltage, charge and discharge currents, and remaining capacity, as well as all data from the solar system, can be conveniently read via a mobile phone or tablet. Additionally, the most important data is logged, presented graphically, and stored for an extended period. It is even possible to export the data as a CSV file for personal analysis purposes. Of course, the Bluetooth Connector S-BC can also be installed later at any time.

Technical specifications:

• Connection via Bluetooth 4.0 (2.4 GHz)
• Range up to 50 m outdoors
• Compatible with Votronic solar controllers, VBCS Triple Charger, LCD Battery Computer, and VPC Jupiter
• Dimensions HxWxD in mm: 75 x 47 x 24
• Weight: 37 g
• Certification: CE, E-testing (EMC/Automotive Directive)

Scope of delivery: Votronic Bluetooth Connector S-BC (MPN 1430), user manual, 2 x control cables.
