Tamiya TT-02D Drift Spec Chassis

The Tamiya TT-02D chassis in drift configuration ensures impressive drifts and is easy to assemble. Its electric drive with the extra powerful Sport Tuned motor type RS-540 makes the model a sideways driver. The kit is based on the 1:10 scale TT-02 chassis, which features multiple adjustable wheelbase, ground clearance, track width, and gear ratio. The 4WD drive with a central shaft, double wishbones, and oil pressure shock absorbers on all four wheels are standard. The chassis underside is designed to be extra smooth, and the battery compartment accommodates all common battery types. Visual highlights include the wheel hubs, which have attached brake disc replicas, as well as the blue chrome battery holder.

Required accessories:
Body, drive battery with charger, and RC system with servo and transmitter batteries, speed controller.

Technical details:

• TT-02D bathtub frame chassis
• 4WD all-wheel drive
• central drive shaft
• cone differential front/rear with four bevel gears
• double wishbones front/rear
• fully ball bearing equipped
• adjustable track width, front
• independent wheel suspension

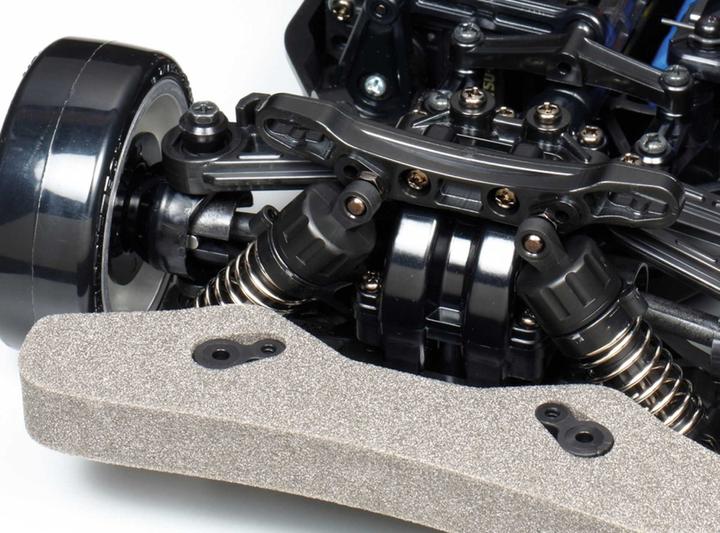

• CVA Mini oil pressure shock absorbers (Super Mini)
• Electric motor type RS-540 Sport Tuned

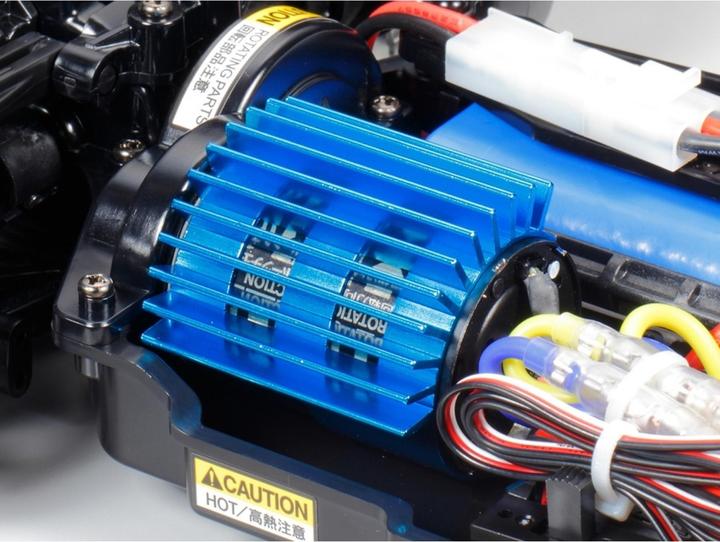

• aluminum motor cooler
• battery compartment suitable for all battery types
• gear ratio adjustable in 10 steps
• variable wheelbase: normal 258 mm/short 252 mm
• Super Drifttech tires (24 mm wide)

Tamiya TT-02D Drift Spec chassis, kit, 1:10 scale, 4WD, without RC system, servo, body, wheels, controller, battery, charger.
