Product details

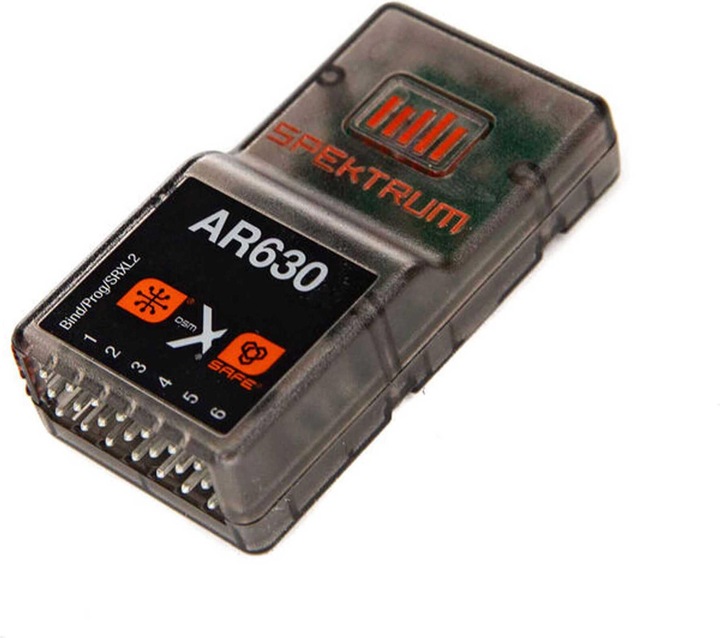

The Spektrum AR630 AS3X telemetry receiver is a DSM2 and DSMX capable receiver. Its compact footprint is designed to fit in a wide range of aircraft models, including park flyers and larger sport models. The AR630 is a full range 6-channel receiver with built-in AS3X and SAFE stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limits on control throws. You’ll simply feel like you’re flying an expertly tuned model that does exactly what you want.
The AR630 features fly-by range telemetry and a bind button that makes it easy to bind with no plugs necessary. It offers both SmartSafe technology and Hold Last, as well as preset failsafe types set through forward programming. The AR630 also supports Smart telemetry.
With Smart technology, the normal servo connector delivers the throttle signal to the ESC, and the ESC can send telemetry data like voltage and current back to the receiver. The AR630 receiver throttle port (Channel 1 port only) will automatically detect when a Smart compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible with the AR630 receiver for Smart technology features.
For Smart to function, you must have a Smart ESC paired with a Smart telemetry receiver and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. If a standard ESC or servo is plugged into the throttle port on the AR630 receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.
