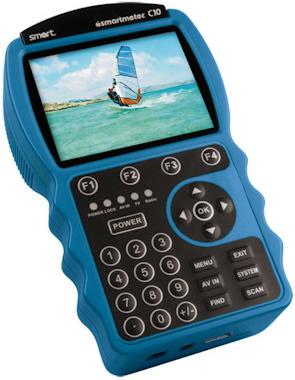

smart metre C10

Cable Measuring Device

With its compact and ergonomic design, the C10 allows for measurements even in the tightest spaces.

The Smartmeter C10 makes it easy to capture TV signals transmitted via DVB-C, monitor them through signal surveillance, and display them directly on a user-friendly 3.5-inch TFT-LCD screen. Installing complex home systems has never been easier.

The familiar simple operating concept from the Smart measuring devices for DVB-S and DVB-T is also present in the Smartmeter C10: thanks to its minimalist user interface and clear menu structure, all necessary information for adjusting even the most customized reception systems can be obtained with just a few button presses.

For evaluating the audio and video from external devices, the Smartmeter C10 features a separate audio and video input.

Screenshots of current screen content can be archived directly onto a USB storage device with the push of a button, and even the data from TV and radio channels can be conveniently recorded onto an external storage device via USB connection.

High-resolution 3.5” TFT-LCD screen
Software update of the measuring device via PC (via USB)
Li-ion battery (quick charger)
Operating time: approx. 8 hours on battery power
Display of signal strength numerically and as a bar graph
Frequency range: 50 - 858 MHz
Signal quality: Spectrum analyzer for all channels
Measurement of BER and C/N
Li-Polymer battery with 2700 mA
Save screenshots to USB with one button press
Accessories: Carrying case, 12V car adapter cable, plug-in power supply, F-adapter, user manual
Weight 470 g
Dimensions (W x H x D) 105 x 170 x 45 mm.
