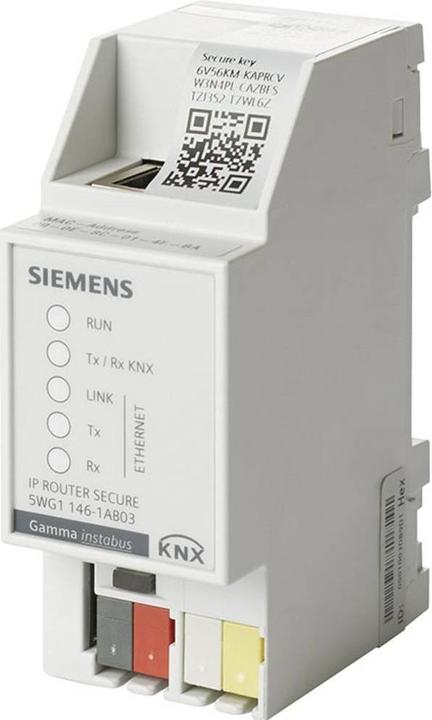

Siemens 5WG1146-1AB03 IP Router secure N

Siemens Dig.Industr. IP Router secure 5WG1146-1AB03

Manufacturer: Siemens Dig.Industr.
Designation: IP Router secure N 146/03
Type: 5WG1146-1AB03
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: REG
Width in Division Units: 2

Further Details:
For connecting bus lines or bus areas via a data network (Ethernet 10BaseT or 100BaseT) with Internet Protocol (IP). Usable as line, area, or network coupler (world coupler). Utilizes the KNXnet/IP protocol or secure access and data transmission via KNXnet/IP Secure. Supports up to five KNXnet/IP tunneling connections for parallel bus access of ETS and other PC software. Network parameters can be assigned by the installer via ETS or automatically by a DHCP service. Features 5 LEDs to indicate operational readiness, KNX communication, and IP communication. Power supply for the electronics via Power over Ethernet according to IEEE 802.3af or alternatively through an external safety power source for AC/DC 24 V. Plug-in terminal block for connecting the external power source. Ethernet connection via RJ45 socket. Housing: plastic, color RAL 7035 (light gray), N-dimension. Rail-mounted device for installation on TH35 DIN EN 60715 mounting rail. Protection class: IP 20. EAN: 4001869378558.
