Product details

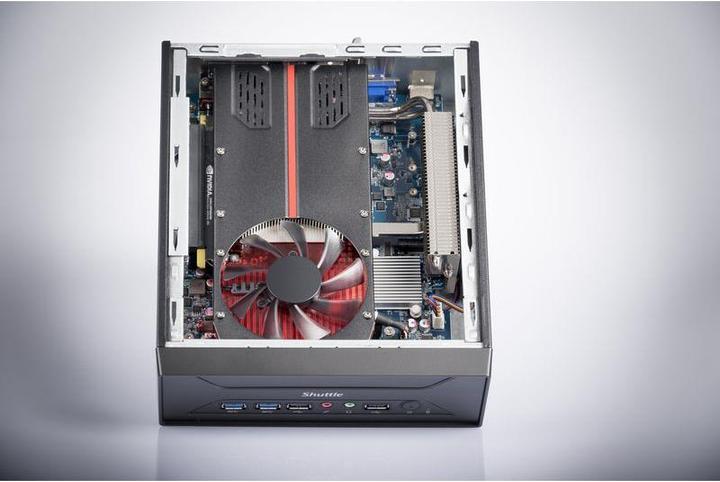

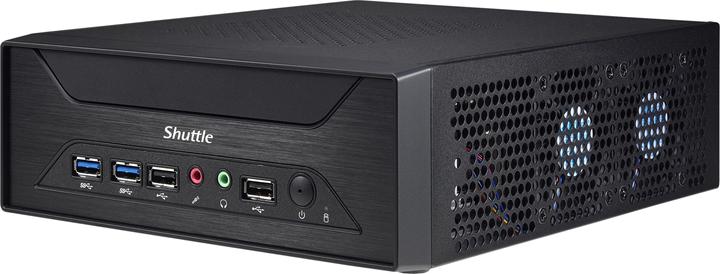

The Shuttle XPC slim XH110G is a barebone system with a 3-liter chassis and a PCI-Express slot. It is designed for Intel Core processors from the Kaby Lake series (LGA 1151 socket) and offers performance and flexibility in a compact design. The PCIe slot allows for the installation of a multi-port graphics card, a video grabber card, or an I/O card, making the mini-PC suitable for video wall presentations, as a graphics workstation, or for monitoring purposes. Gaming is also possible.

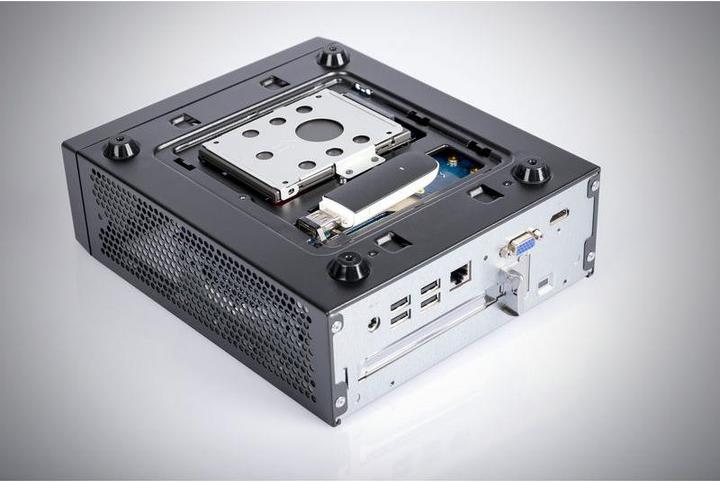

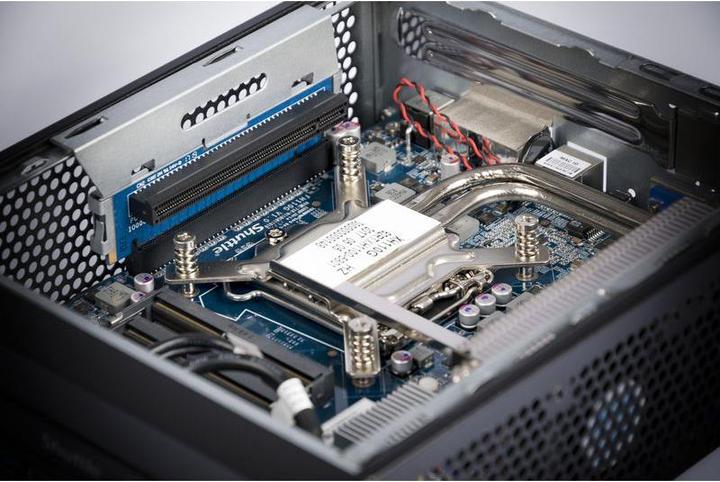

The integrated motherboard with Intel H110 chipset features two SO-DIMM slots for up to two 16 GB DDR4-2133/2400 memory modules. The two M.2 slots can accommodate a Wi-Fi expansion card and a fast M.2 SSD. The system includes a 2.5" drive bay that is accessible from the bottom.

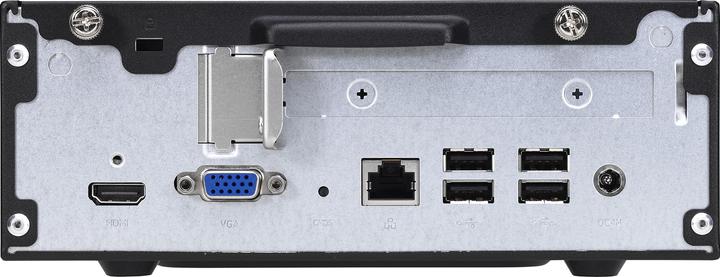

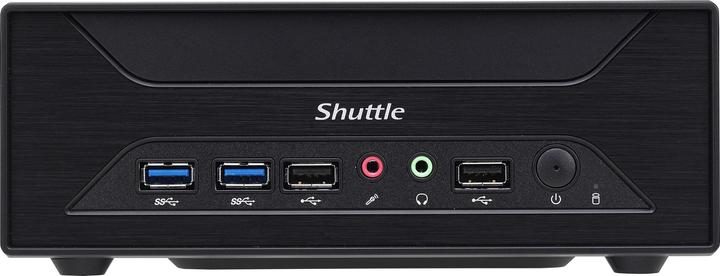

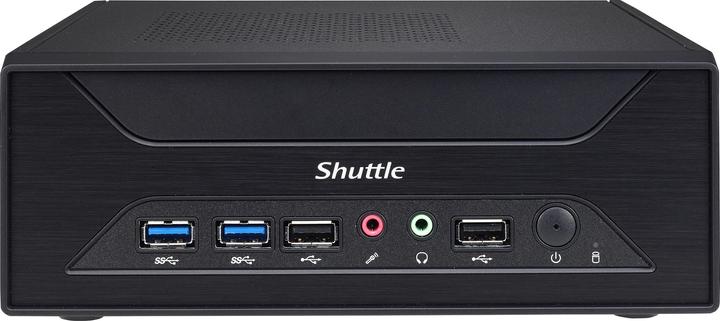

The barebone has an HDMI and VGA port, allowing for easy connection to your TV or PC monitor. USB ports for peripherals and microphone/headphone jacks, as well as an internal Type-A USB slot, are also available. Gigabit Ethernet LAN ensures the highest data transfer rates, and the Intel i211 network chip even supports Wake on LAN and network booting via Preboot eXecution Environment (PXE).
Graphics card model | Intel HD Graphics |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Network connections | RJ45 (1x) |
Video connections | HDMI (1x), VGA (1x) |
Memory type | DDR4-RAM |
USB ports | USB-A |
Documents | |
Item number | 6515770 |
Manufacturer | Shuttle |
Category | Barebones |
Manufacturer no. | XH110G |
Release date | 6.9.2017 |
External links |
Design | Small Form |
Processor type | Intel Pentium Dual Core |
Number of processors | 1 x |
Socket | LGA 1151 |
Max. TDP | 65 W |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Memory chip compatibility | DDR4-2133, DDR4-2400 |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 32 GB |
Memory voltage | 1.20 V |
Graphics card model | Intel HD Graphics |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Data storage controller | Intel i211 |
RAID configuration | JBOD |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (6x), USB-A 3.0 (2x) |
Data ports | PS/2 (6x) |
Network connections | RJ45 (1x) |
Max. port speed | 1000 Mbit/s |
Network features | Wake on LAN |
Connectivity | RJ45 |
Video connections | HDMI (1x), VGA (1x) |
Audio outputs | 3.5mm jack (1x) |
Power | 180 W |
Fan diameter | 0 mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4 x screws M4x10, CPU Heatpipe cooling system with thermal compound, Drive bracket, Driver DVD, External power supply, Installation guide, VESA bracket |
Weight | 1900 g |
Width | 200 mm |
Length | 250 mm |
Height | 78.50 mm |
Length | 37.50 cm |
Width | 14 cm |
Height | 27.50 cm |
Weight | 3.55 kg |
Specifications may include unverified machine translations.
