Shuttle AIO POS X509/ 8GB/128GB SSD/IntelCeleron 7305U/black

Intel Celeron 7305, 8 GB, 120 GB, Intel UHD Graphics
Ratings
Delivered between Tue, 27.5. and Wed, 11.6.
8 items in stock at supplier

Product details

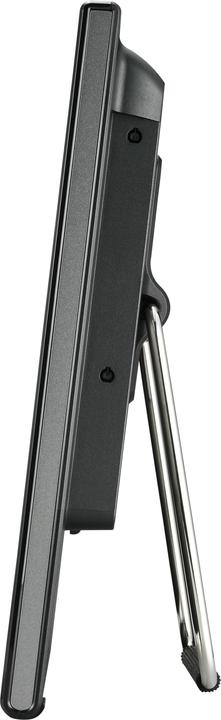

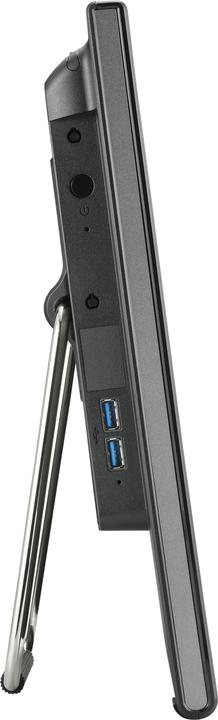

15.6” All-in-One PC for POS, POI, and Kiosk Applications

The Shuttle POS X509 is a 15.6-inch All-in-One PC complete system with RAM and M.2 SSD, but without an operating system. It is equipped with a Gen12 Intel ULV processor. The modern processor architecture has a very positive impact on power consumption and computing performance. Thanks to passive heat pipe cooling, the system is virtually silent, maintenance-free, and suitable for 24/7 continuous operation. The AIO PC offers plenty of connections: HDMI, VGA, 6x USB, Gigabit LAN, 2x COM, and 2x audio. Useful for applications in the vertical market, most of the ports are arranged on the underside of the case, and the front is resistant to dust and splashes according to the IP54 protection class.

General Features

  • IP54 protected front
  • Dimensions: 391 x 327 x 42 mm (WHT)
  • Suitable for 24/7 continuous operation
  • Supports 100 mm VESA mount
  • Operating temperature: 0-40 °C
  • Fanless heat pipe cooling system

Display and Graphics

  • 39.6 cm (15.6") LC display, 1366 x 768 pixel resolution
  • Resistive touchscreen
  • Integrated Intel UHD graphics
  • HDMI 2.0b and VGA

Operating System

  • An operating system is not included
  • Supports Windows 10/11 (64-bit) and Linux (64-bit)

Processor

  • Intel Celeron 7305 SoC, 1x P-core, 4x E-cores, 8 MB cache
  • Intel Generation 12 “Alder Lake-U” TDP: 15W

Memory

  • 8 GB DDR5-4800 SO-DIMM RAM
  • 120 GB M.2 SSD with NVMe support
  • Free M.2-2280 slot supports SATA SSD cards
  • Supports a 2.5" SATA drive (HDD or SSD)
  • Supports internal USB stick (USB 2.0, Type A)

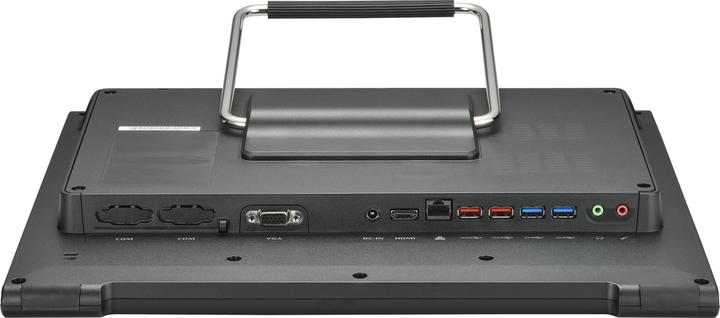

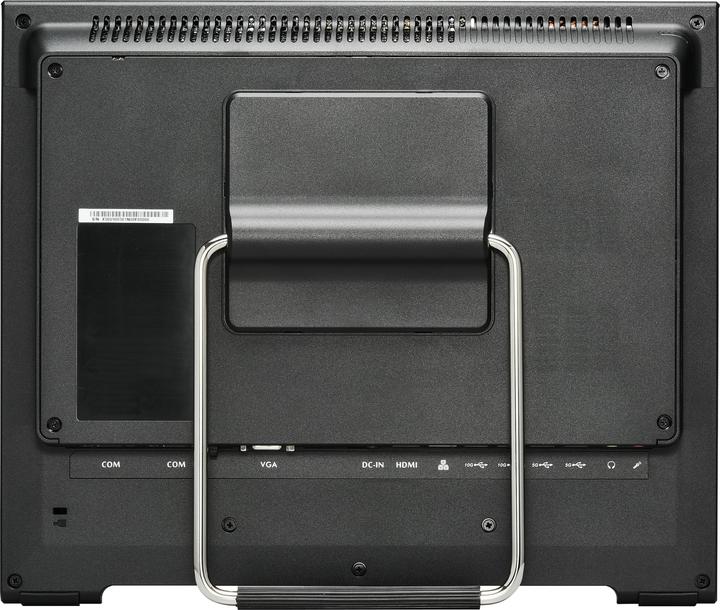

Connections

  • HDMI 2.0b
  • D-Sub/VGA
  • 2x USB 3.2 Gen 2 (max. 10 Mbit/s, red)
  • 4x USB 3.2 Gen 1 (max. 5 Mbit/s, blue)
  • Internal: 1x USB 2.0 (Type A)
  • Gigabit LAN (Intel)
  • 2x audio (microphone and headphones)
  • 2x COM port (1x RS232, 1x RS232/422/485)
  • Power button
  • Clear CMOS button
  • LEDs for operating status and memory access.

Key specifications

PC type
All in One PC
Processor family
Celeron
Graphics card model
Intel UHD Graphics
Video connections
HDMI (1x), VGA (1x)
Exact USB ports
USB-A 3.0 (4x)
Network connections
RJ45 Gigabit Ethernet (1x)
Item number
46457150

General information

Manufacturer
Shuttle
Category
PC
Manufacturer no.
POS X509 BLACK
Release date
26.8.2024

Colour

Colour
Black
Exact colour description
Black

Application range

PC type
All in One PC

Operating system

Operating system
No operating system

Processor

Number of processors
1 x
Processor family
Celeron
Processor type
Intel Celeron 7305
Clock frequency
1.10 GHz
Max. turbo clock rate
1.10 GHz
Max. TDP
55 W
Number of processor cores
5 -Core
Number of performance cores
1 -Core
Number of efficiency cores
4 -Core
Number of threads
5

Processor cooling properties

Processor cooling type
Passive (fanless)

Memory

Memory
8 GB
Memory configuration
1 x 8GB
Max. supported memory
64 GB
Memory type
DDR5 RAM
RAM speed
4800 MHz
Set clock frequency
4800 MHz
Memory form factor
SO-DIMM
Number of memory slots
2

Data storage overview

Disk type
SSD
Total capacity
120 GB
Form factor
M.2

SSD properties

SSD capacity
120 GB

Additional data storage

Further data carrier type
SSD
Storage capacity
8 GB

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
Intel UHD Graphics

Dedicated graphics card properties

Graphics chip (GPU)
Intel UHD Graphics
Graphics card model
Intel UHD Graphics
Hardware interface
PCI Express Mini Card
Max. Video resolution
1366 x 768 pixels

Network

Max. port speed
1000 Mbit/s

Wireless transmission

Wireless transmission
Bluetooth
Bluetooth version
4.2

Wi-Fi

Wi-Fi standard
Wi-Fi 5 / 802.11ac

Audio properties

Chip
Realtek ALC888S
Audio channel
Stereo

PC case properties

Form factor
All-in-one

Connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x)
Video connections
HDMI (1x), VGA (1x)
Network connections
RJ45 Gigabit Ethernet (1x)
Audio Connections
Headphones

Optical drive properties

Optical drive type
No drive

Power supply properties

Power supply
90 W

Display properties

Display size (inches)
15.60"
Image resolution
1366 x 768 pixels
Screen technology
LCD
Display functions
Touch screen

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
4.20 cm
Width
39.10 cm
Height
32.70 cm
Weight
3.50 kg
