Shelly

The Shelly Wave 2PM Relay 16A 2 Channel transforms an ordinary two-pole wall switch into an intelligent switch. It enables the remote control of two electrical devices, such as lights, ceiling fans, IR panels, and IR heaters.

It switches (on/off) two independent loads and measures their power consumption separately and in total. Connected devices can be controlled either via a smartphone or a tablet, according to schedules or scenes. It is compatible with switches or push buttons.

Features:
- Relay: Wave 2x 10A (16A total)
- Measures the power consumption of the connected device on each channel
- Small size ensures easy installation behind any wall switch or wall socket
- Extended wireless range: up to 40m indoors
- SmartStart for automatic setup
- OTA firmware update for over-the-air updates
- S2 security authenticated
- Extremely low energy consumption: less than 0.3 W
- Works with Z-Wave certified hubs and over 4,000 Z-Wave devices
- Power supply: 110-240 V AC / 24 V DC +/-10%
- Max. switching current AC: 10 A per channel, 16 A total, 18 A total peak
- Max. switching voltage DC: 30 V
- Max. switching current DC: 10 A
- Overheating protection: Yes
- Overload protection: Yes
- Distance: Up to 40 m indoors (131 ft.) depending on local conditions
- Z-Wave S800
- Ambient temperature: -20°C to 40°C
- Humidity: 30% to 70% RH
- Maximum altitude: 2000 m.

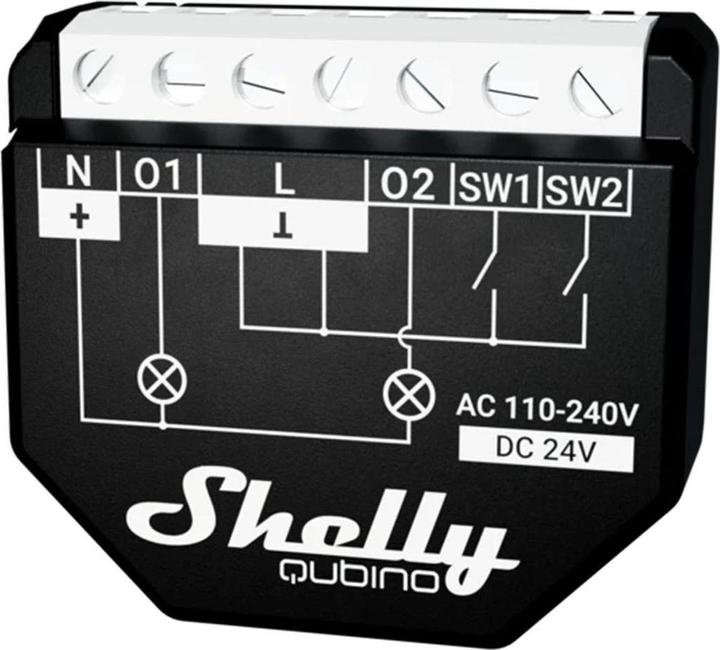

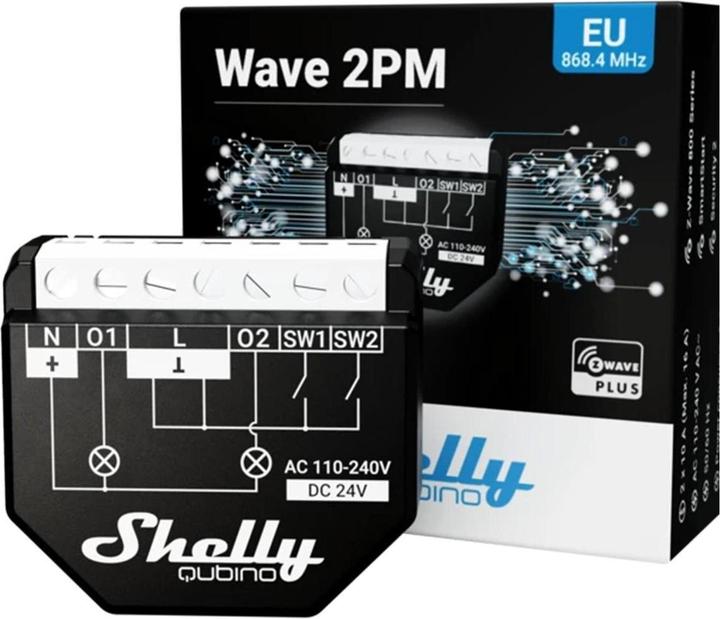

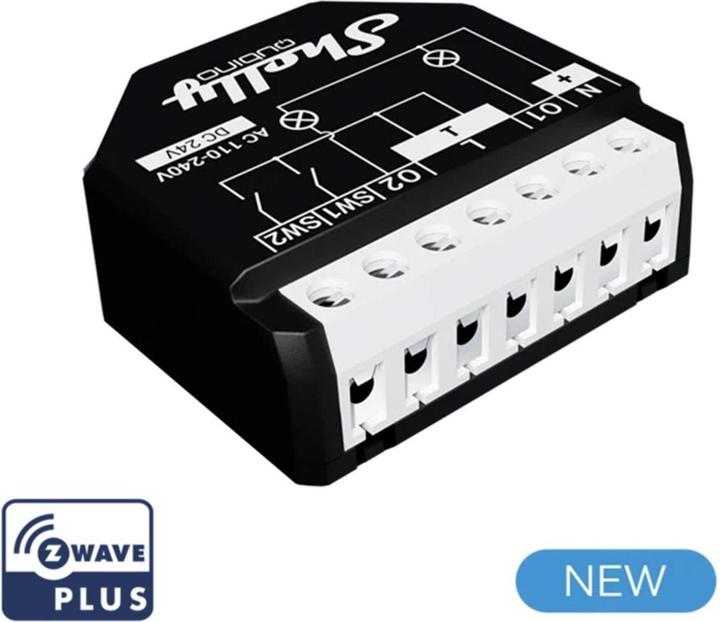

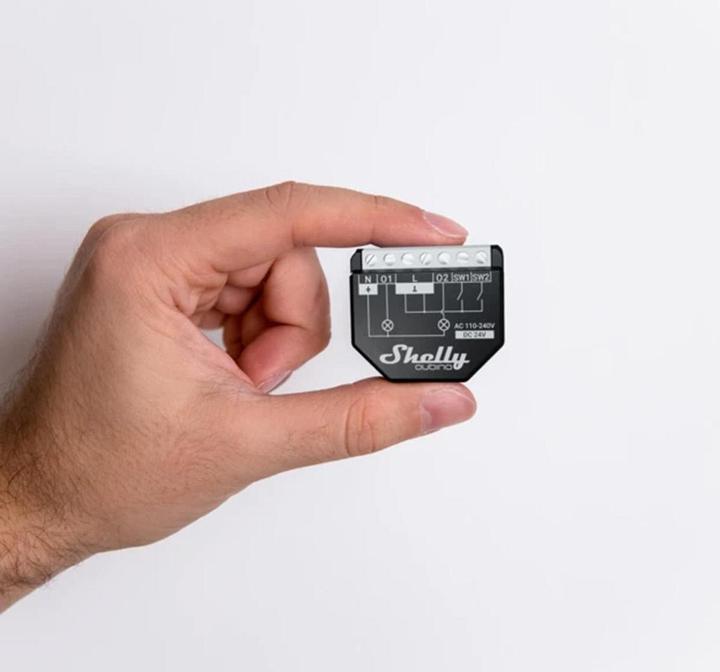

Actual product image Shelly ALREZWE W 2PM - Qubino Wave 2PM Relay 16A 2 channel (Switch actuator)
