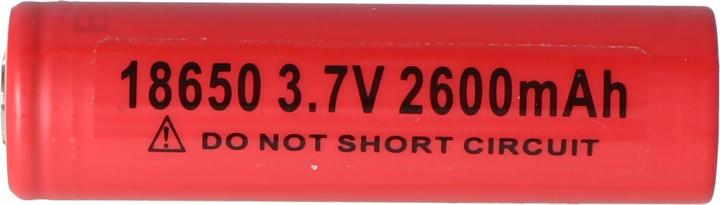

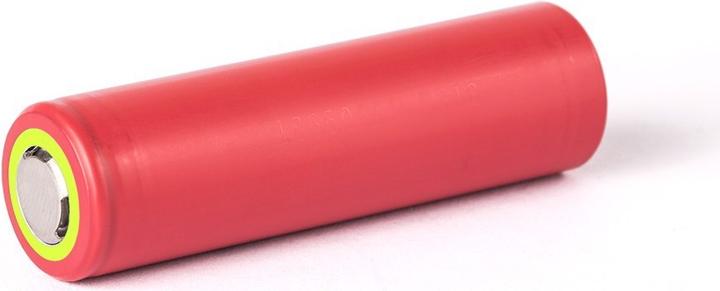

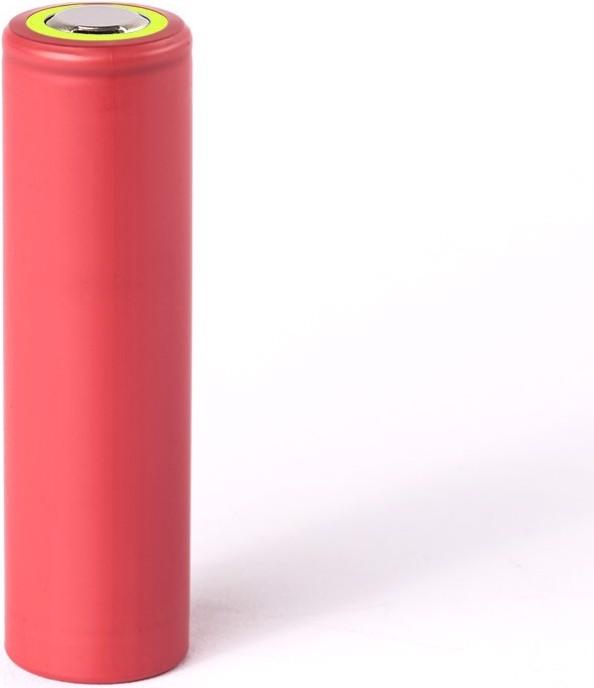

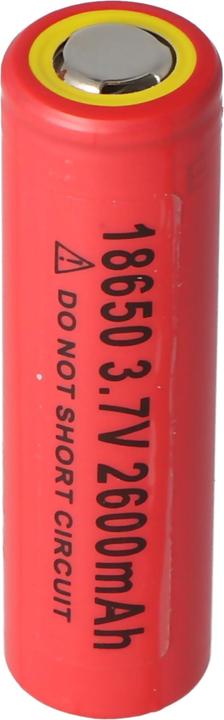

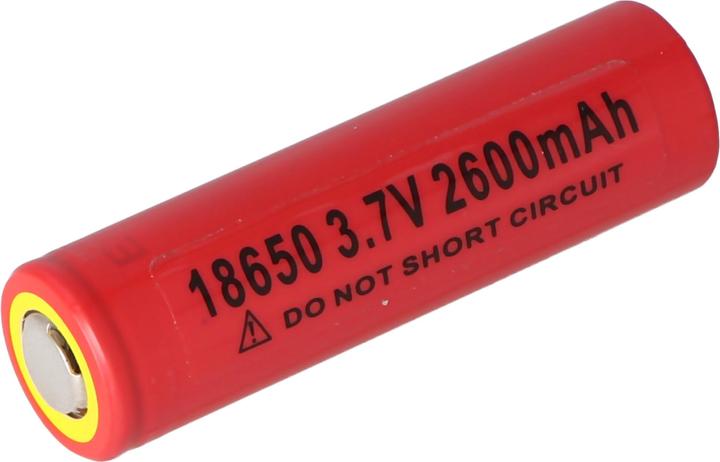

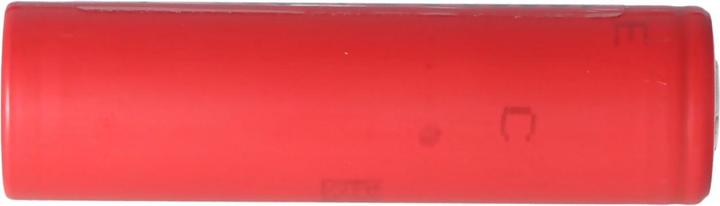

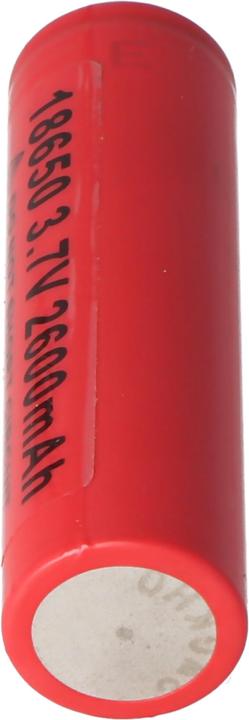

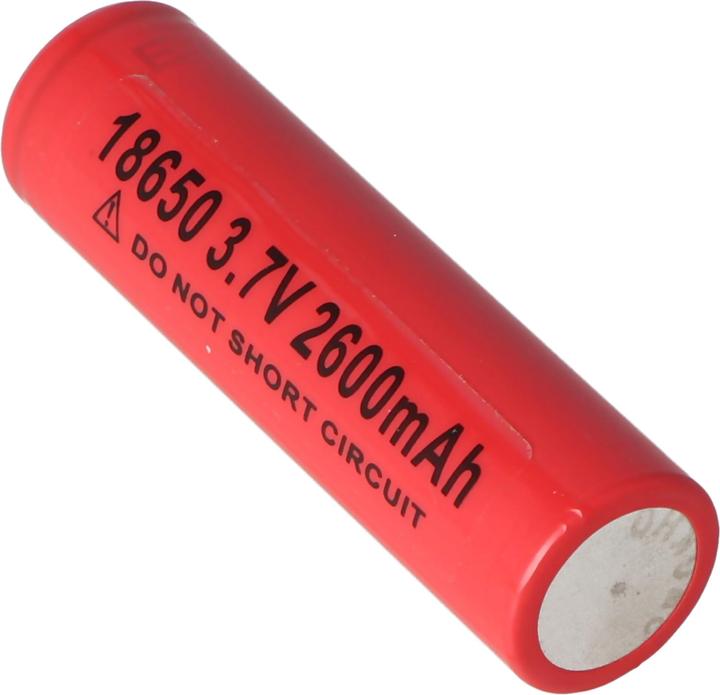

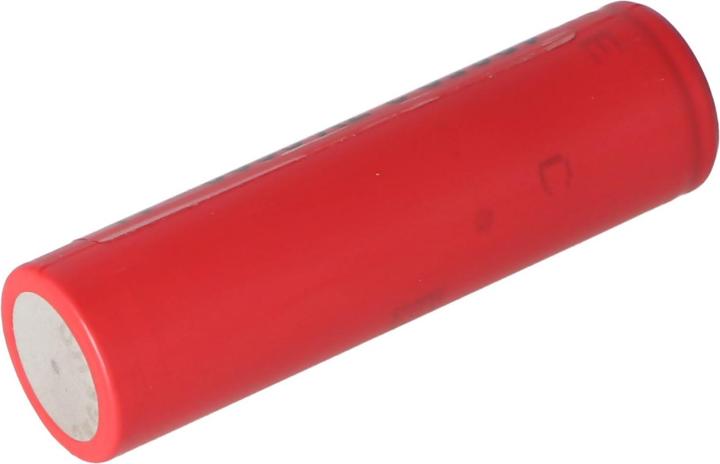

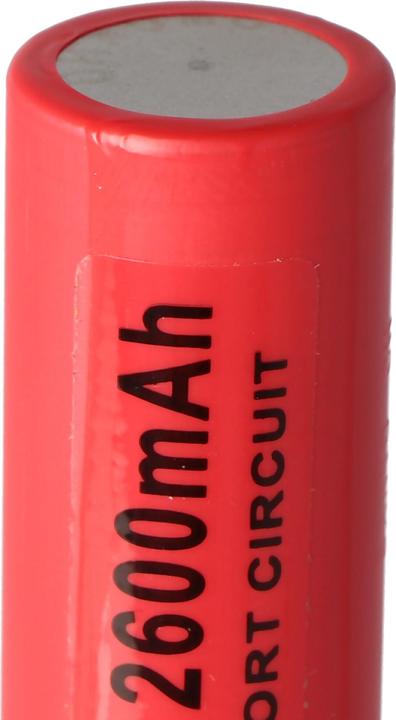

Sanyo UR18650NSX battery (positive terminal slightly protruding)

1 pcs., 18650, 2600 mAh
CHF29.40/1pcs.
Ratings
Delivered between Mon, 5.5. and Fri, 9.5.
5 items in stock at third-party supplier
Supplied by

Product details

The Sanyo UR18650NSX model is a power tool cell from Sanyo/Panasonic, featuring exceptionally high current output. The Sanyo cell was designed for use in industries, e-mobility, power tools, model building, and all other areas where high-performance batteries are required.

Sanyo/Panasonic UR18650NSX supports a constant discharge current of up to 20A. Note: The UR18650NSX comes in two versions: the green version (Panasonic) is manufactured in China, while the red version (Sanyo) is made in Japan.

Cell Type: UR18650NSX Li-Ion
Capacity: 2600mAh
Minimum Capacity: 2500mAh
Nominal Voltage: 3.6V - 3.7V
Charge Termination Voltage: 4.2V
Discharge Current (constant): 8C 20A
Charge Current: up to 0.7C 1700mA
Discharge Termination Voltage: 2.50V
Protection Circuit PCB: not present

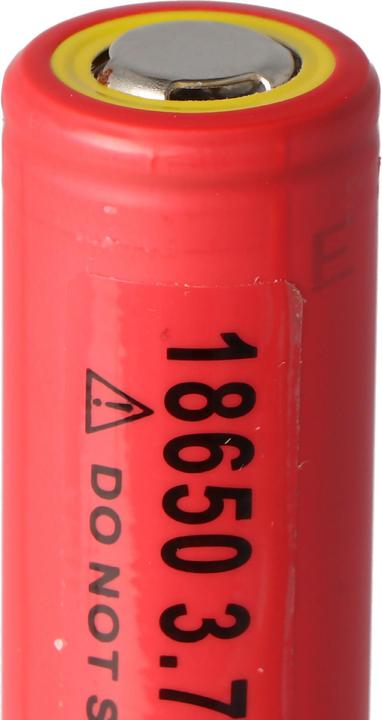

Positive Terminal: slightly raised (Flat Top)
Chemistry: Trimax
Diameter: 18.50 mm - 0.5 mm
Height: 65.30 mm - 0.4 mm
Weight: 45.8 g ± 1 g
Charging Method: CC-CV
Comparison Test (Forum): Mountainprophet

Safety Notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Technical Data for "Sanyo/Panasonic UR18650NSX 3.6V - 3.7V 2600mAh (Positive Terminal Slightly Raised)":
Charge Current and Charging Time (slow): 0.1A - 1A/3.5h - 7h
Max. Charge Current and Charging Time (fast): 1.7A/3 h
Recommended Charge Current: 0.5C 1.25A/3.5h
Operating Temperature for Charging: 0 °C - 50 °C
Operating Temperature for Discharging: -20 °C - 75 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage).

Key specifications

Items per sales unit
1 pcs.
Battery type
Li-ion
Voltage
3.70 V
Item number
13101484

General information

Manufacturer
Sanyo
Category
Batteries
Manufacturer no.
AKT-100613
Release date
19.4.2020

Battery properties

Battery size
18650
Voltage
3.70 V
Battery type
Li-ion
Battery capacity
2600 mAh
Rechargeable
Rechargeable

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
65.30 mm
Diameter
18.50 mm
Weight
46 g
