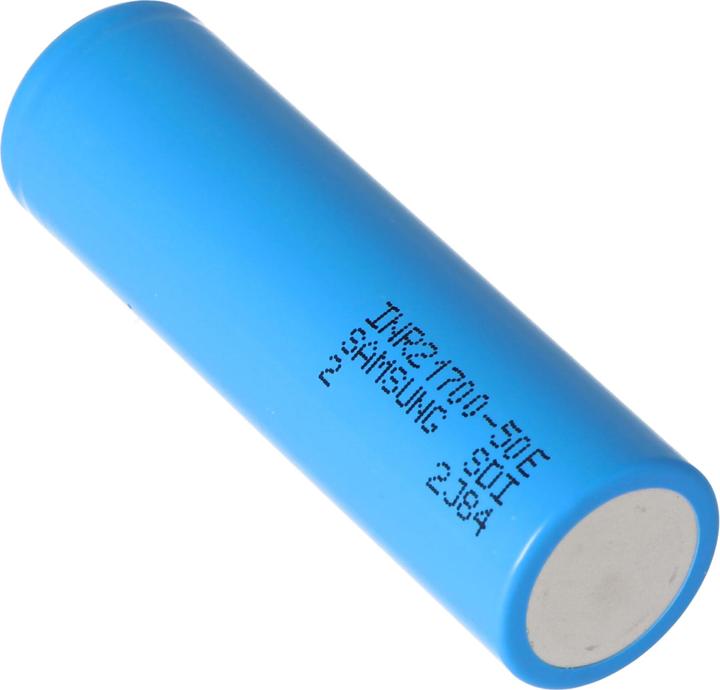

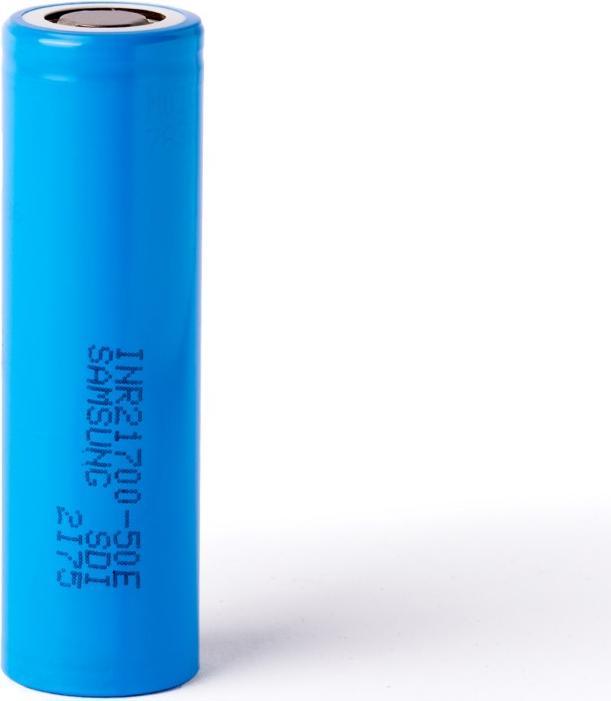

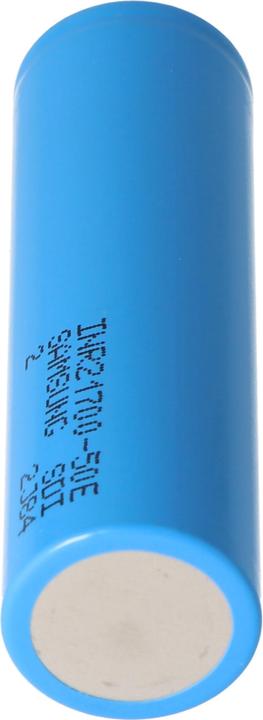

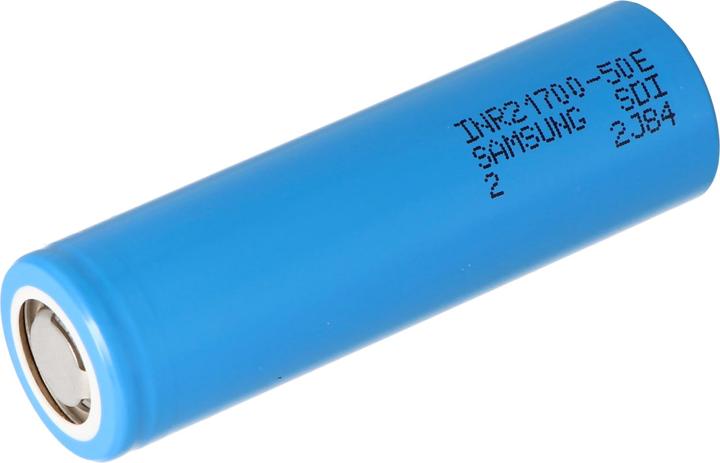

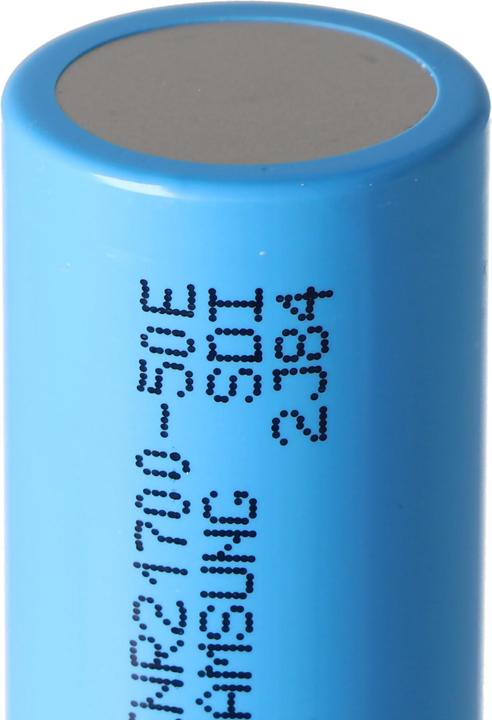

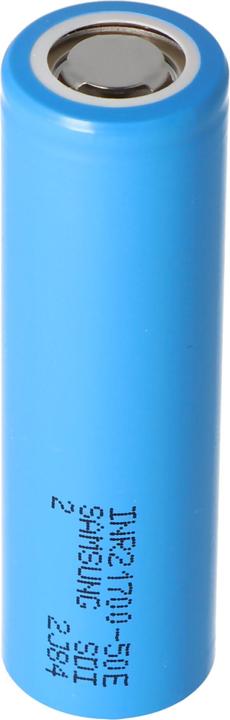

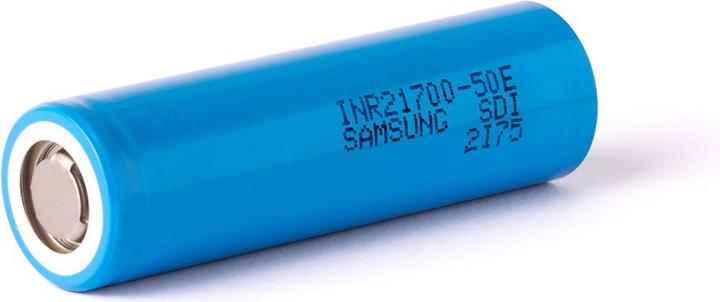

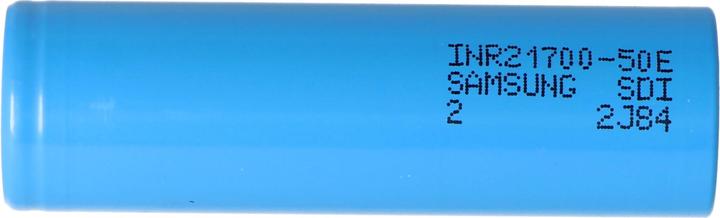

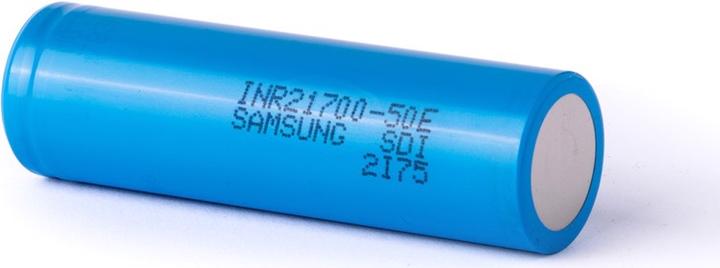

Samsung Battery INR21700 50E max. 15A

The Samsung cell was developed for use in e-mobility. It can also be used in flashlights, model building, industry, storage systems, or regulated battery carriers. Its high capacity makes the cell the first choice for applications requiring long runtimes.

Technical specifications for the INR21700-50E:

• Type: Lithium-Ion
• Capacity: 5000 mAh
• Min. Capacity: 4753 mAh
• Nominal Voltage: 3.6 V - 3.7 V
• Charge Voltage: 4.2 V
• Discharge Voltage: 2.5 V
• Max. Continuous Discharge Current: 9.8 A
• Max. Pulse Discharge Current: 14.7 A
• Charge Current: 2.45 A
• Max. Charge Current: 4.9 A
• Protection Circuit: No

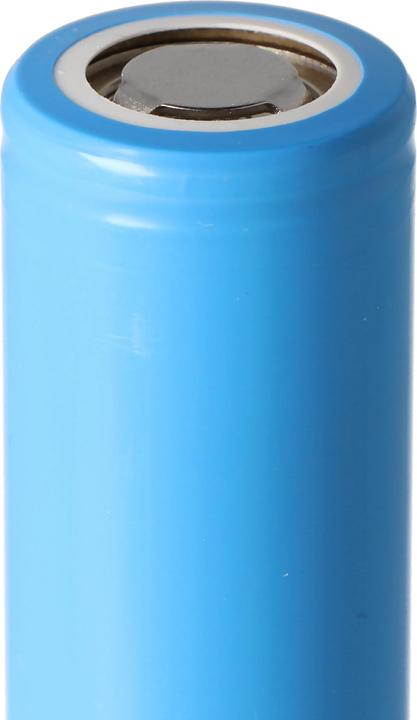

• Positive Terminal: Flat (Flat Top)
• Diameter: 21.25 mm ± 0.1 mm
• Height: 70.8 mm ± 0.15 mm
• Weight: 69 g ± 1 g
• Charging Method: CC-CV

Safety Notes: Lithium cells should only be operated with protective electronics. Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion.
