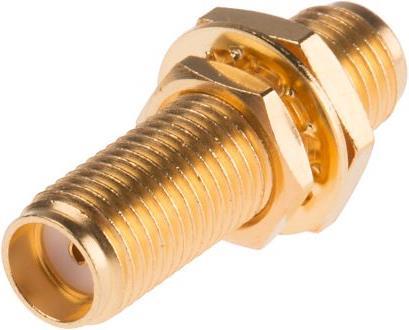

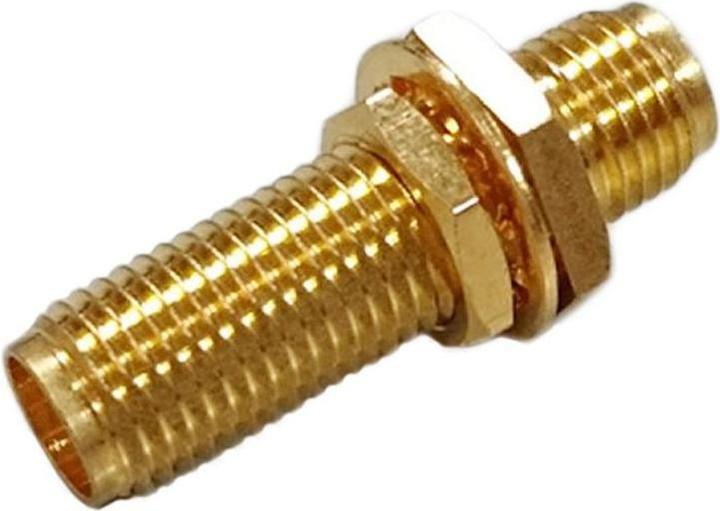

Rs Pro RF coax adapter SMA bulkhead jack - jack

Adapter type = SMA-Jack to SMA-Jack
Adapter type A = SMA
Adapter type B = SMA
Gender A = Female
Gender B = Female
Impedance = 50Ω
Housing orientation = Straight
Operating frequency = 18GHz
Contact coating = Gold
Length = 22.3mm
Housing coating = Gold
Contact material = beryllium copper

SMA RF coaxial adapter RS, 50 Ohm. A series of 50 Ohm SMA RF coaxial adapters for a variety of configurations and mounting options. These 50 Ohm SMA RF coaxial adapters have gold plated brass housings (except ; 878-2384 878-2384 : passivated stainless steel) and a MIL-STD-348A mechanical interface. Order No. ; 878-2362 878-2362 is a right-angled RF coaxial adapter from SMA plug to SMA socket Order No. ; 878-2369 878-2369 is an RF coaxial adapter from SMA socket to SMA socket Order No. ; 878-2365 878-2365 is an RF adapter from SMA jack to SMA socket suitable for panel thicknesses up to 4.5 mm. Order No. ; 878-2375 878-2375 878-2375 is a HF coaxial adapter from SMA socket to car probe Order No. ; 878-2384 878-2384 is a HF adapter from SMA jack to snap-in connector suitable for panel thicknesses up to 3.7 mm. Order No. ; 878-2387 878-2387 878-2387 is an HF adapter from SMA add-on jack to SMA socket that is suitable for panel thicknesses up to 6.7 mm. Additional data about these SMA RF coaxial adapters can be found in the data sheets on our website.
