Pylontech Force-H2 V2 Control unit HV BMS

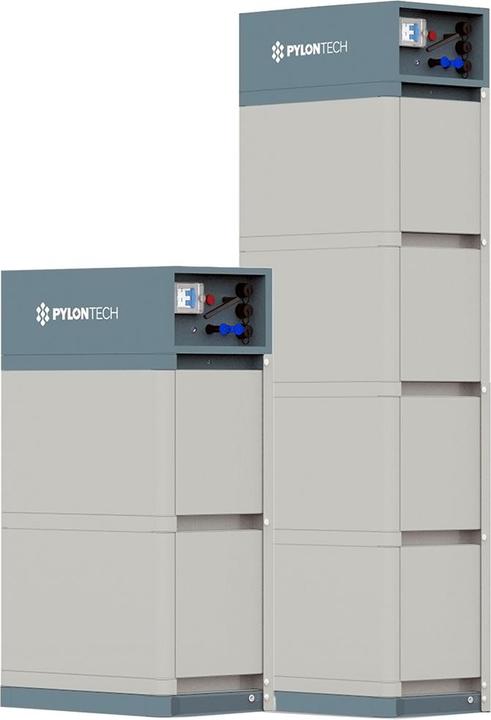

The new Force-H2 BMS from Pylontech (MPN FC0500M-40) is a next-generation control unit that protects each battery module in the Force-H2 series from adverse conditions while ensuring safe and uninterrupted continuous operation. It does not matter how many storage modules are in use at the same time; what is important is that there is always one BMS per tower. A tower consists of at least 2 to a maximum of 4 Force-H2 3.55 kWh battery modules, resulting in a storage capacity of 7.1-14.2 kWh.

Pylontech's long-proven communication protocol is directly supported by a wide range of inverters. A compatibility list for Pylontech with over 30 brands and companies, including Victron Energy, Growatt, Solis, and many more, is available for download in our attachments.

The Force-H2 BMS protects against:

• Deep discharge and overcharging
• Overvoltage during charging
• Excessive currents during charging and discharging
• Over- and under-temperature
• Short circuits and reverse polarity

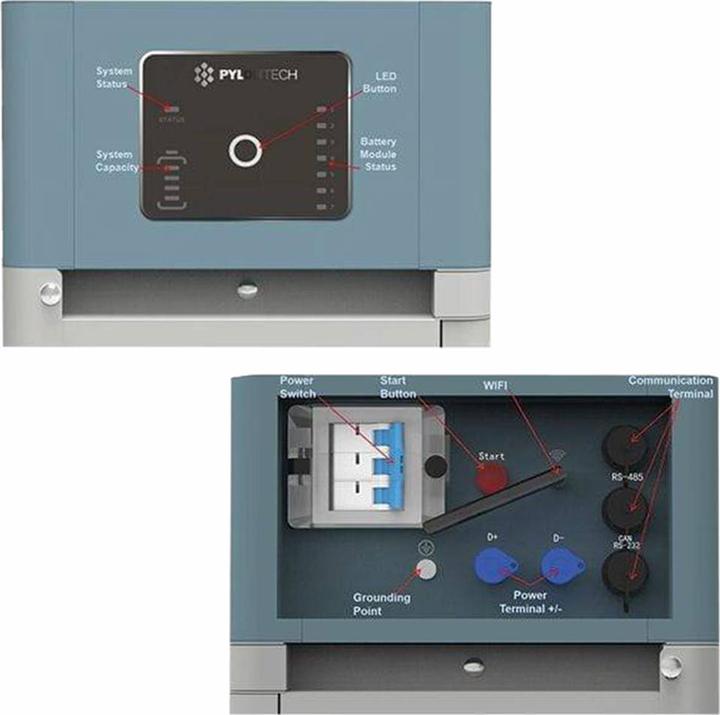

Intuitive control panel with LED indicators

With the control panel on the control unit, the current status of the battery tower can be monitored at any time. Additionally, the communication speed (baud rate) can be set directly on the unit.

Technical specifications:

• Dimensions: 450 x 296 x 190 mm
• Weight: 12 kg
• Manufacturer part number: FC0500M-40S

Scope of delivery:

1x Pylontech Force-H2 control unit BMS.
