Purecrea 360° High Torque Servo MG996R 10kg/cm

2Ratings
Delivered between Tue, 29.4. and Wed, 30.4.
More than 10 items in stock at third-party supplier
Supplied by

Product details

This robust 360° strong servo is perfect for tasks that require a lot of power. The servo is ideal for powered vehicles as it can rotate 360°. It features a durable metal gear and can be easily operated with the Arduino Servo Library. If you want to operate multiple servos, there is also a Motor Shield or a Servo Driver with 16 channels available.

Note: A 360° servo cannot target a specific angle. However, the 360° servo can continuously rotate left or right, making it excellent for building vehicles with Arduino.

Technical Details:

  • Gear: Metal
  • Operating Voltage: 4.8 to 7.2V
  • Current Draw without Load: 120mA
  • Current Draw at Full Load: 1450mA
  • Torque: 9kg/cm at 4.8V or 10.5kg/cm at 6V
  • Speed at 4.8V: 0.19sec/60 degrees
  • Speed at 6V: 0.18sec/60 degrees
  • Cable Length: 290mm
  • Connector: JR/FP universal
  • Operating Temperature: 0°C to +55°C
  • Size: 40 x 20 x 40mm
  • Weight: 64g

Included in the package:

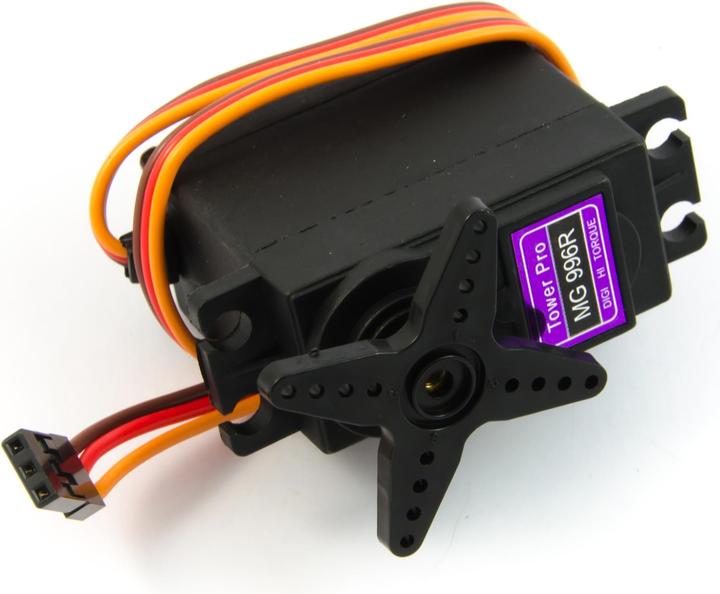

  • 1x High Torque Servo TowerPro MG996R 10 kg/cm

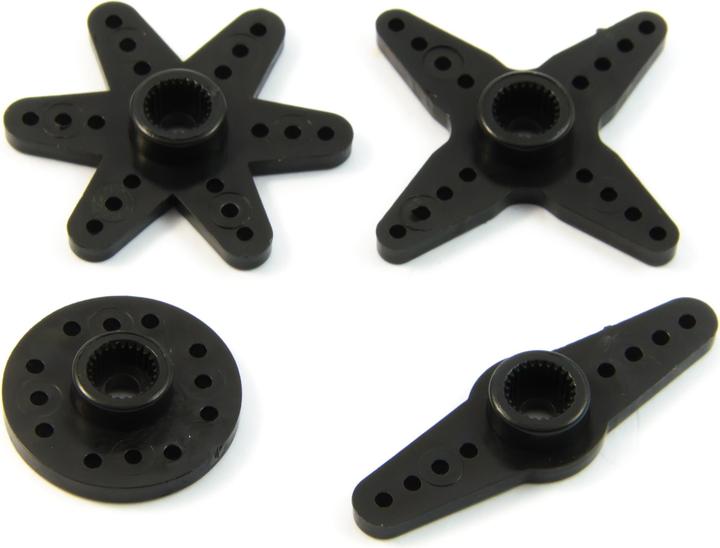

  • 4x Servo Arms
  • 4x Rubber Dampers with Metal Sleeves
  • 1x Screw for Servo Arm
  • 4x Mounting Screws.

Key specifications

Additionally required (not included)
Fastening screws, Rubber damper with metal sleeves, Screw for servo lever, Servo lever, Servo lever for Maverick Quantum
Item number
36169155

General information

Manufacturer
Purecrea
Category
RC servos
Release date
21.6.2023
Sales rank in Category RC servos
28 of 1334

Material

Material group
Metal
Material
Metal

RC servo properties

Engine type
Servomotor

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x High Torque Servo TowerPro MG996R 10 kg/cm, 1x screw for servo lever, 4x fixing screws, 4x rubber dampers with metal sleeves, 4x servo lever

Additionally required (not included)

Additionally required (not included)
Fastening screws, Rubber damper with metal sleeves, Screw for servo lever, Servo lever, Servo lever for Maverick Quantum

Product dimensions

Length
4 cm
Width
2 cm
Height
4 cm
Weight
64 g
