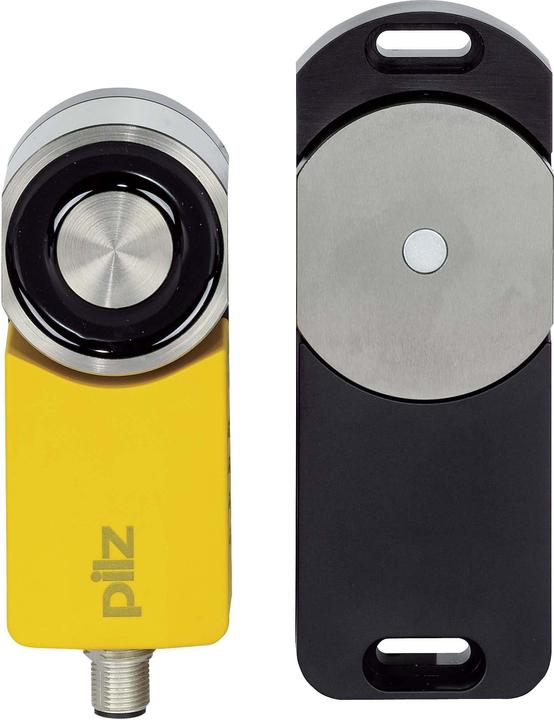

Pilz GmbH & Co. KG Safety gate system PSEN sl-0.5p 1.1

The PSEN sl-0.5p 1.1 safety door system from Pilz is a state-of-the-art safety switch set designed for applications up to SIL3/PL e/Category 4. It provides a reliable solution for process protection with a magnetic holding force of 500N. The system is equipped with a coded actuator and features an 8-pole M12 connector, allowing for easy integration into existing systems. With an IP67 protection rating, the device is optimally protected against dust and water, making it ideal for use in demanding environments. The four integrated LEDs provide a clear status indication, facilitating system monitoring. The housing is made of polybutylene terephthalate (PBT), ensuring additional robustness and durability. The delivery includes the sensor with a standard actuator, simplifying installation and commissioning.

• Suitable for applications up to SIL3/PL e/Category 4
• Magnetic holding force of 500N for effective process protection
• Coded actuator for enhanced safety
• IP67 protection rating for optimal protection against dust and water
• Integrated status indicators via 4 LEDs.
