Product details

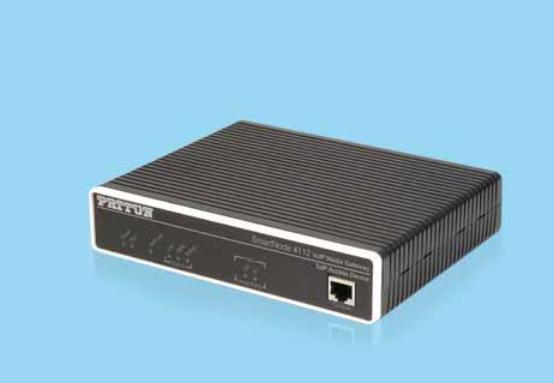

The Smartnode 4112 from Patton supports two analog jack connections. Connect phones, faxes, or PBXs over any IP network to the VoIP gateway and route calls to and from the fixed line, Internet, or LAN.
Interfaces: 2x analog / 1x LAN (10/100 Mbps)
Speech processing: codecs: G.711, G.726, G.723.1, G.729ab, RZP, RTCP, G.168 echo cancellation. Up to 8 parallel voice connections.
Voice transmission: H.323v4, SIPv2
Network functions:
IPv4 router
Static routes, ICMP redirection, RIPv1, v2
DiffServe/ToS package labeling
802.1p VLAN tagging
List for access control
IPSEC AG and ESP modes, preshared keys
AES/DES/3DES encryption
Hardware:
Motorola MPC870 processor with 66 MHz
32 MB SDRAM, 8 MB Flash.
Type | Expansion module |
Item number | 3228499 |
Manufacturer | Patton |
Category | Telephone accessories |
Manufacturer no. | SN4112/JS/EUI |
Release date | 16.10.2014 |
Type | Expansion module |
CO₂-Emission | |
Climate contribution |
Length | 3.90 mm |
Width | 13.90 mm |
Height | 10.60 mm |
Length | 37.50 cm |
Width | 25.50 cm |
Height | 9.50 cm |
Weight | 1.23 kg |
Specifications may include unverified machine translations.
