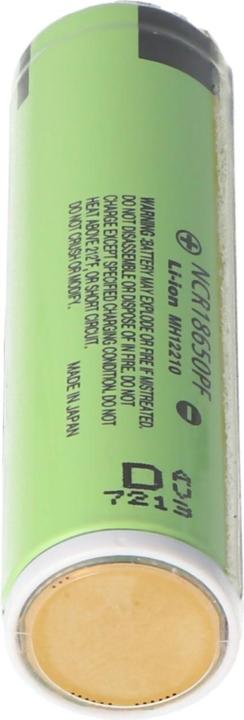

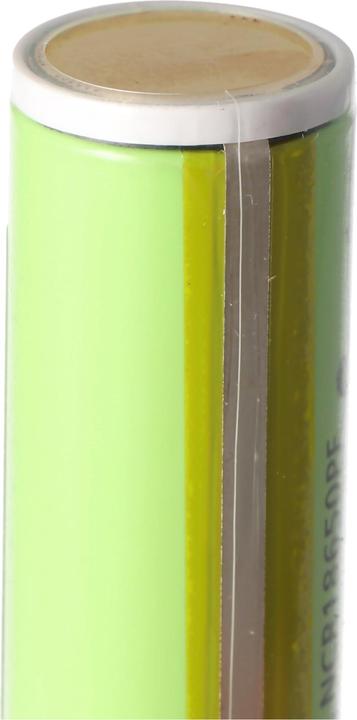

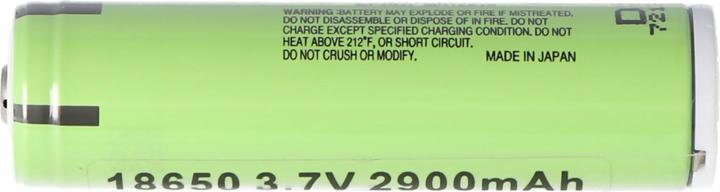

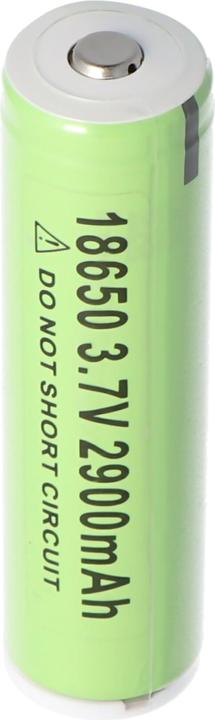

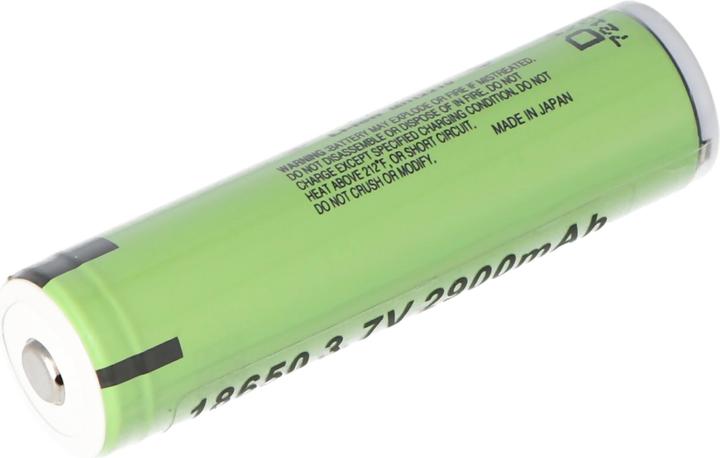

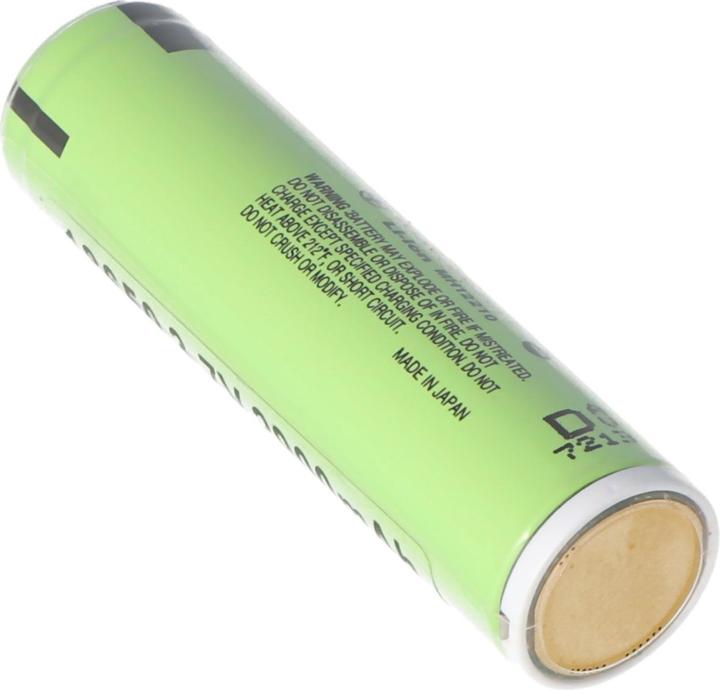

Panasonic NCR18650 PF battery - PCB protected

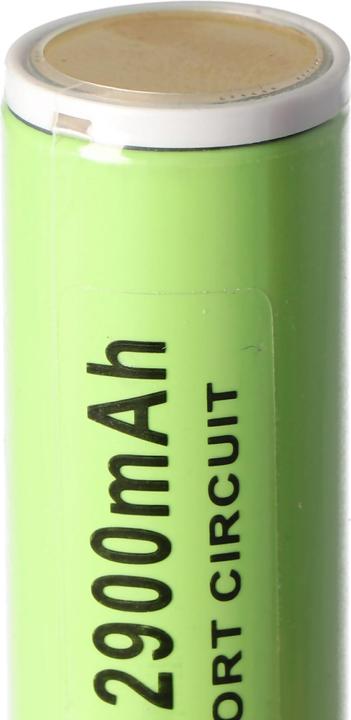

Panasonic NCR18650 PF PCB Protected

Typical Capacity (mAh): 2900 mAh
Minimum Capacity (mAh): 2800 mAh
Nominal Voltage (Volt): 3.6 V
Charge Termination Voltage (Volt): 4.2 V
Max. Discharge Current (Amperes): 9 A (3C)
Discharge Termination Voltage (Volt): 2.5 V

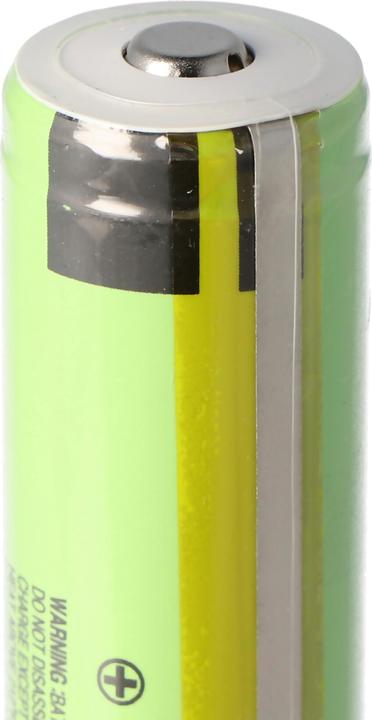

Protection: PCB protected

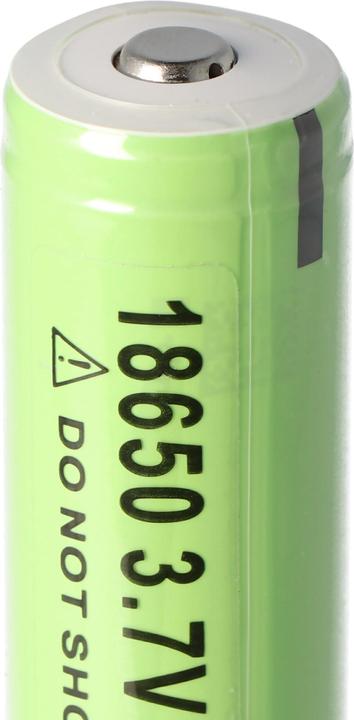

Positive Terminal (Design): raised (Button Top)
Composition (Chemistry): LiNiCoAlO2
Diameter (mm): 18.6 mm
Height (mm): 68.8 mm
Weight (g): 50 g
Charging Method: CC-CV

Safety Note: Lithium cells should only be operated with protective electronics! Please note that removing or damaging the protective electronics (PCB) can lead to a short circuit, fire, or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical Data for "Panasonic NCR18650 PF - 2900 mAh PCB Protected":

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and number of charge cycles (potentially up to doubling). Only lithium-ion chargers should be used for charging. However, cheap chargers often have the disadvantage that they do not safely shut off after the charging process ends, continuing to charge the batteries with a small current, which can be dangerous.

Furthermore, batteries and accumulators must not be disposed of in household waste! Please dispose of them as required by law at municipal collection points or in designated containers at retail outlets.
