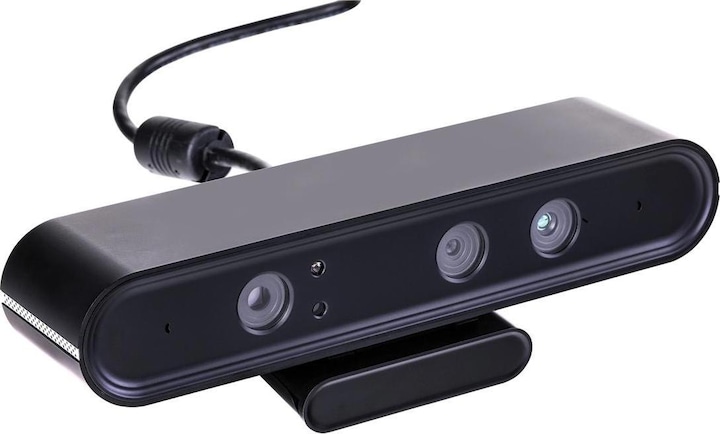

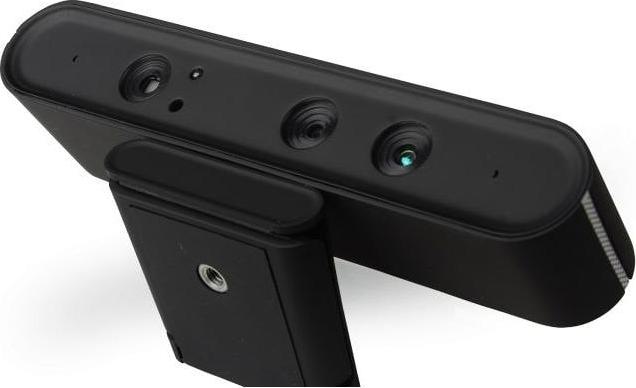

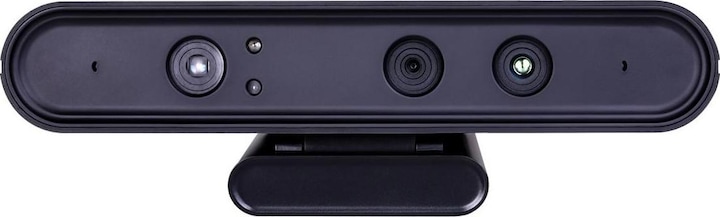

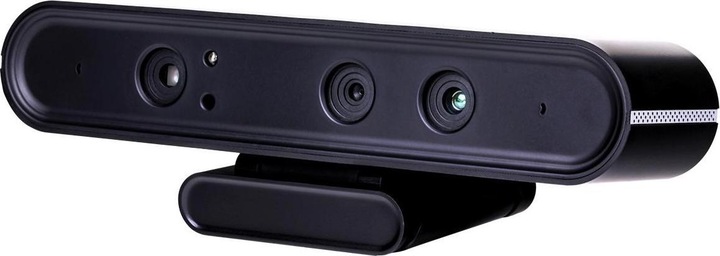

Orbbec 3D Astra S

The Orbbec3D Astra S is an easy-to-implement 3D camera with an RGB/image resolution of 640 x 320 pixels and up to 30 FPS. The depth images are available at a resolution of 640 x 480 pixels at 30 FPS. The data obtained can be reused for various applications via the USB port. These cameras are already being used today in the following areas:

• Robotics / Autonomous Systems
• Quality Control
• 3D Scanners / Full Body Scanners & Handheld

This wide range of applications is made possible not only by excellent hardware but also by sophisticated software and driver packages. The Orbbec Mini is compatible with ROS, OpenNI, Astra SDK, and more.

Features of the Orbbec3D Astra

The Orbbec3D Astra S is supported by various 3D scanning software, such as that from RecFusion.

Technical Specifications

• Depth Images: 640 x 480 pixels 30 FPS
• RGB/Image Resolution: 640 x 320 pixels
• FOV: 60H 49.5V 73D
• Dimensions: 165 x 30 x 40 mm
• Measurement Range: 0.4 - 2 m
• Data & Power Supply: USB 2.0
• Power Consumption: < 2.4 W

Delivery Contents

• 1 x Orbbec Astra S 3D Camera.
