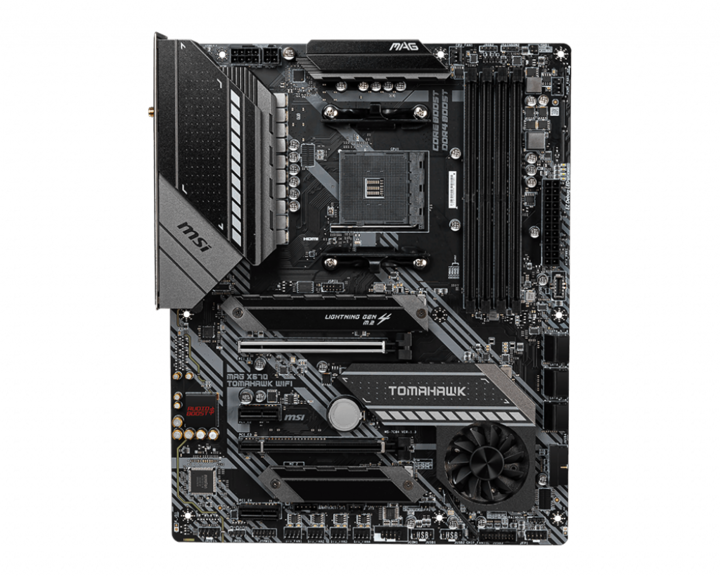

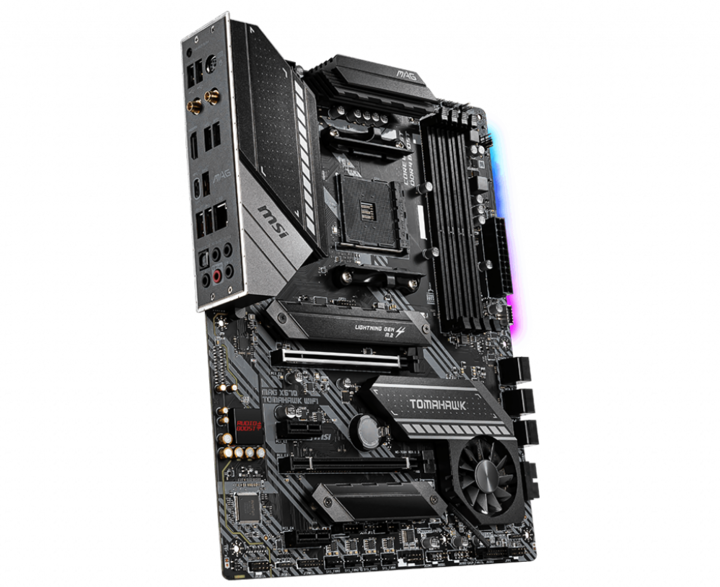

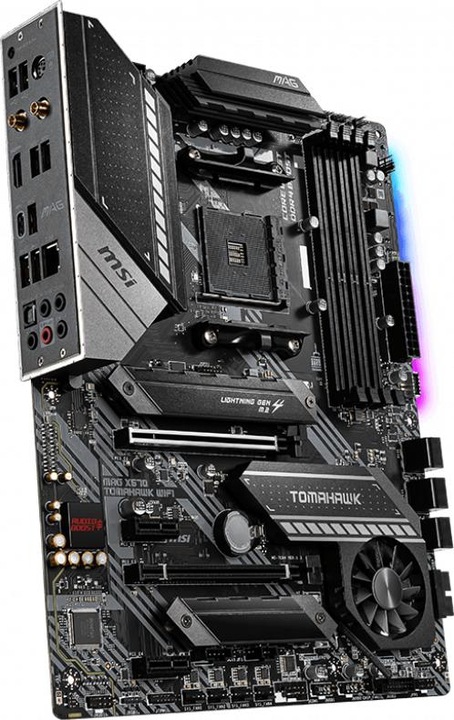

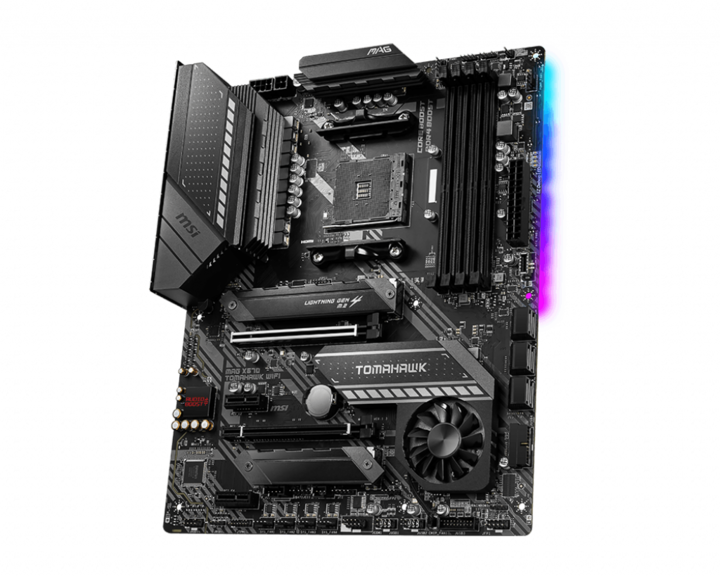

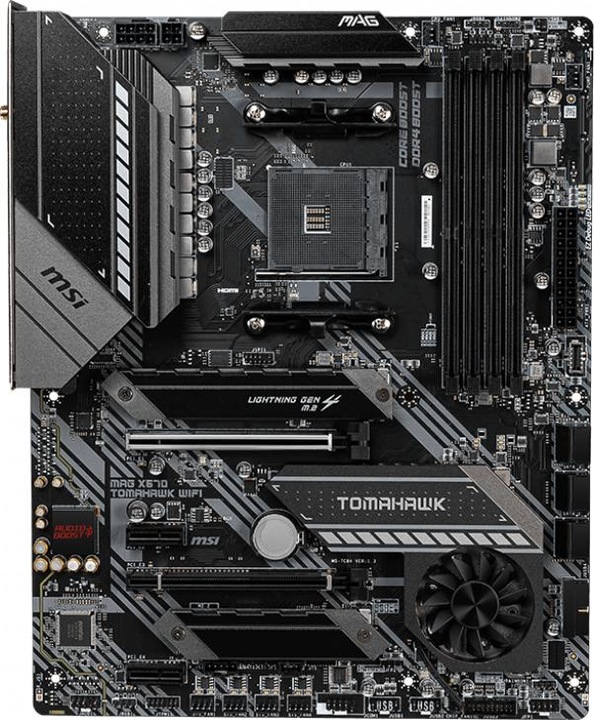

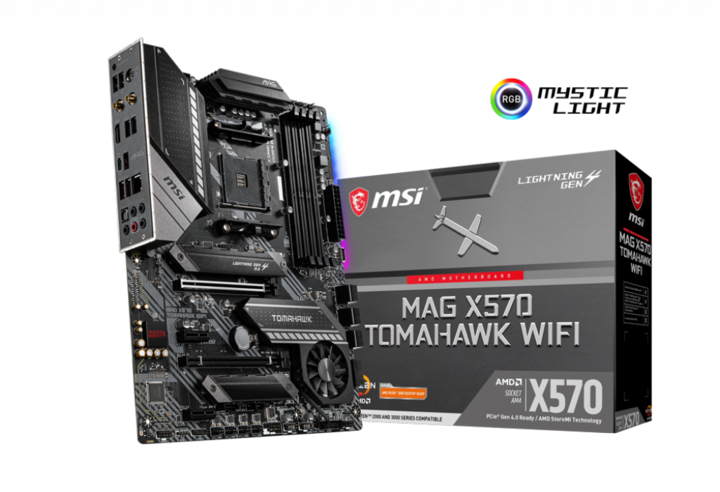

Product details

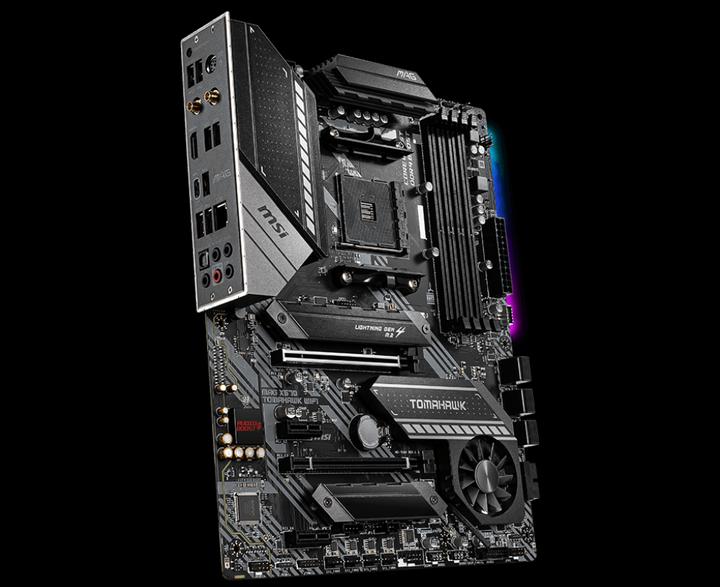

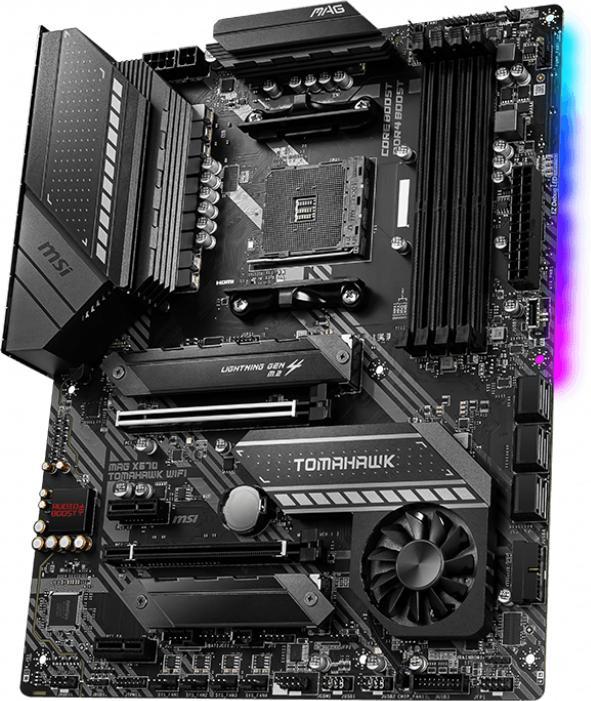

MSI motherboards have practical keep-out zones for pin headers, well-placed SATA and USB ports, and other advantages thanks to the well-thought-out layout. Therefore, any user can easily install motherboards into any system.
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 13269877 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7C84-001R |
Release date | 13.5.2020 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | 802.11ad, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2933 |
Max. RAM OC | 4600 MHz |
Supported memory speed | 1866 MHz, 2133 MHz, 2400 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4400 MHz, 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz, 8000 MHz, 8200 MHz, 8400 MHz, 8600 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

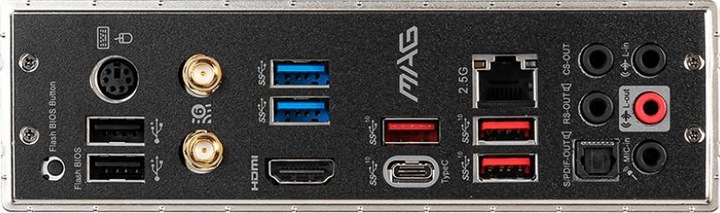

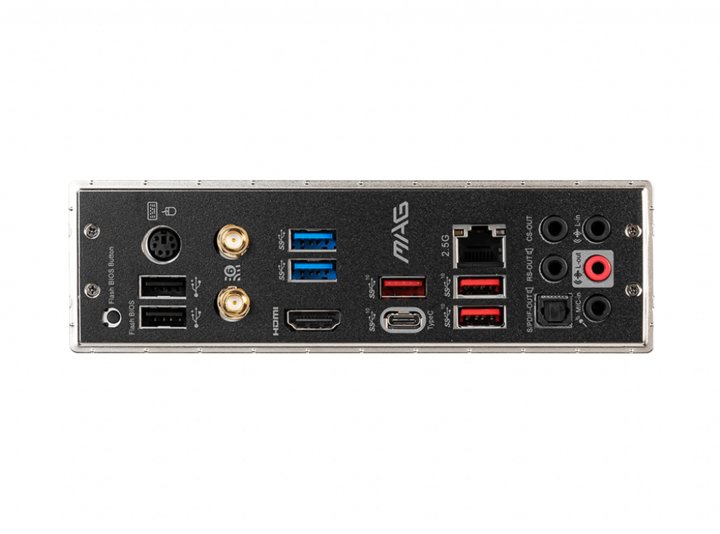

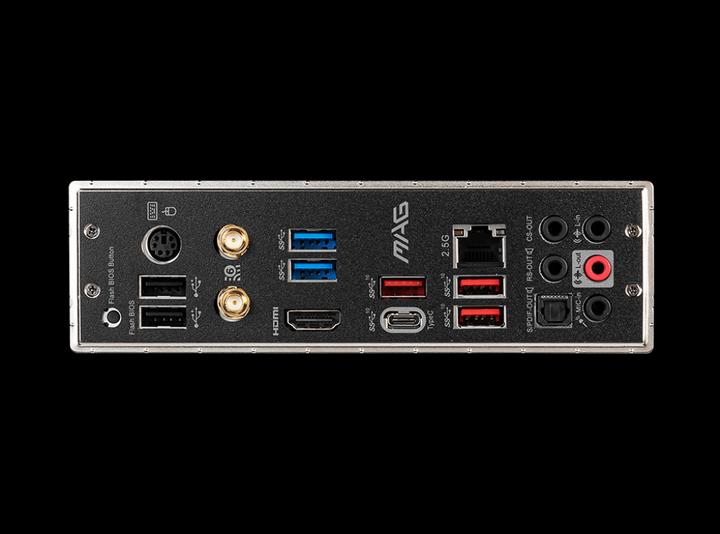

Video connections | HDMI (1x) |
Video connection version | HDMI 1.4 |
Multi-GPU technology | AMD CrossFire |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125B-CG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1200 |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x) |
Number of fan connector | 6 |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 305 mm |
Width | 244 mm |
Height | 305 mm |
Length | 34.50 cm |
Width | 27.50 cm |
Height | 9 cm |
Weight | 2.02 kg |
Specifications may include unverified machine translations.
