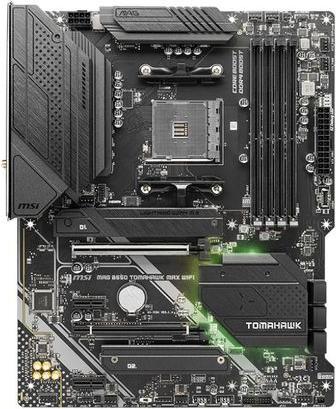

MSI Mag B550 Tomahawk Max Wifi

AM4, AMD B550, ATX
15Ratings
BrandMore from MSI
tonight with flash delivery
to check if flash delivery is available to you.

Product details

The MAG series has been developed after rigorous quality tests and is intended to be a symbol of robustness and durability. It is designed for an optimal user experience and features a simple installation process and a user-friendly interface, making it a great choice for beginners. The more processor cores there are, the more important the thermal and power supply design becomes to ensure that the temperature remains low. MSI's advanced PWM heatsink and improved circuit design ensure that even high-end CPUs run at full speed with MSI motherboards.

Key specifications

Processor family
Ryzen 3 3rd Gen, Ryzen 5 5th Gen
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (1x)
Wireless transmission
Bluetooth
Mainboard features
Front panel audio connector
Item number
22614903

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7C94-043R
Release date
9.5.2023
Sales rank in Category Motherboards
77 of 969

Motherboard properties

Form factor
ATX
Socket
AM4
Chipset
AMD B550
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10, Windows 11 Home, Windows 11 Pro
BIOS type
UEFI AMI
Wireless transmission
Bluetooth
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Ryzen 3 3rd Gen, Ryzen 5 5th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4
Max. RAM OC
5100 MHz
Supported memory speed
1866 MHz, 2133 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered

Graphics properties

Video connections
DisplayPort (1x), HDMI (2x)
Video connection version
Display port 1.4, HDMI 2.1
Multi-GPU technology
AMD 2-Way CrossFireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
N
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Digital Audio Out (1x)

Internal interfaces

Internal connection options
S-ATA III (1x)
Expansion slot
PCI Express x1 (2x), PCI Express x16 (Gen 4) (1x)
Number of fan connector
6

Further connections

USB ports
USB-A
Exact USB ports
Micro USB-B 3.1 (2x)

Power supply

Power connectors
20+8 pin ATX

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
SATA

Product dimensions

Length
244 mm
Width
244 mm
Height
27 mm
Weight
1777 g

Package dimensions

Length
35 cm
Width
27 cm
Height
7 cm
Weight
1.74 kg
