M5Stack Timer Camera X ESP32, OV3660

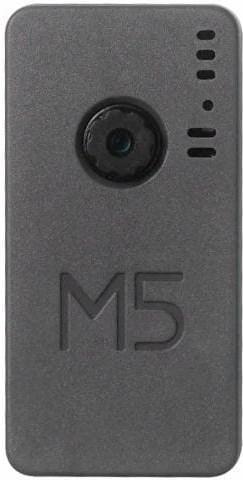

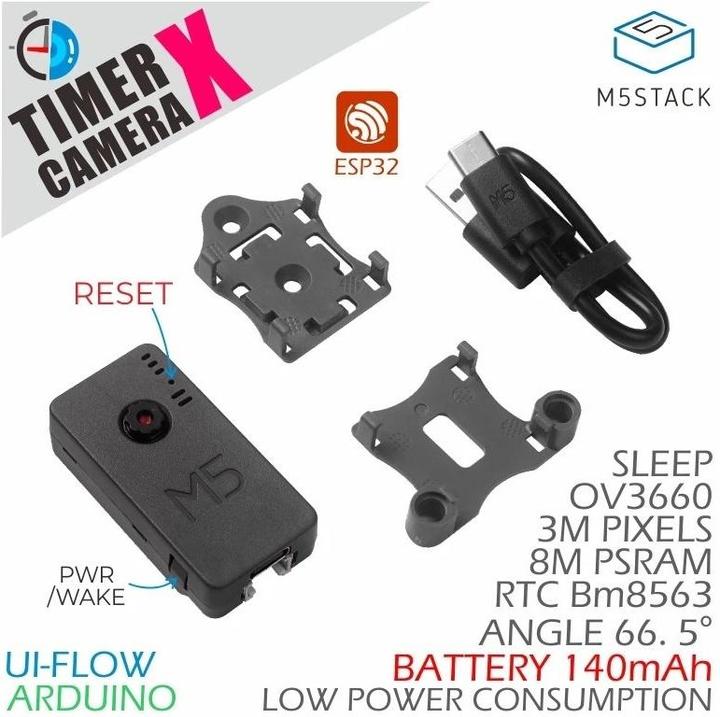

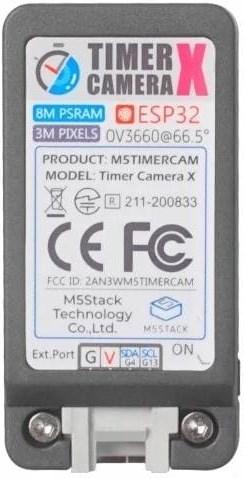

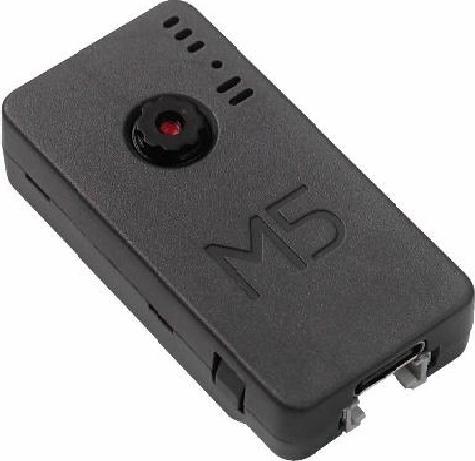

Timer Camera X is a camera module based on the ESP32, integrated with an ESP32 chip and 8M PSRAM. The camera (OV3660) features 3 million pixels, a viewing angle of 66.5°, and can capture photos at a maximum resolution of 1600 x 1200. It includes a built-in 140mAh battery and an LED status indicator, designed for ultra-low power consumption. A reset button is located under the LED. With the RTC (BM8563), timing sleep and wake-up functions can be implemented. The standby current is only 2μA. Once the timing photo-taking function (one photo per hour) is activated, the battery can last for over a month. The module supports WiFi image transmission and USB port debugging. The bottom HY2.0-4P port output can connect to other peripherals. Using M5Burner to flash the firmware, Timer Camera X can be configured directly with Camera-Tool, and its data can be processed in UIFlow.
