Lilygo TTGO LoRa V1.3 ESP32 SX1276 EU868
Free shipping from 50.–
Delivered between Mon, 28.4. and Tue, 29.4.
More than 10 items in stock at third-party supplier
More than 10 items in stock at third-party supplier
Supplied by
Product details

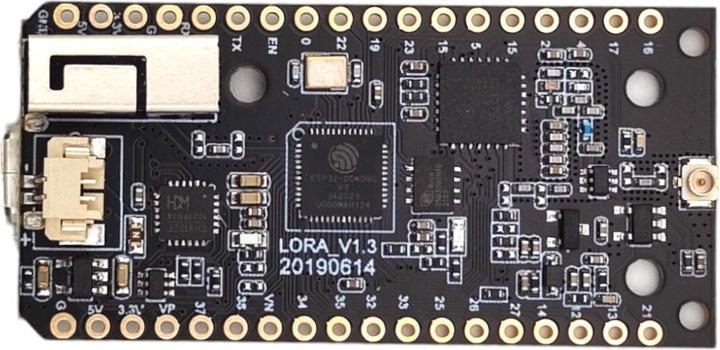

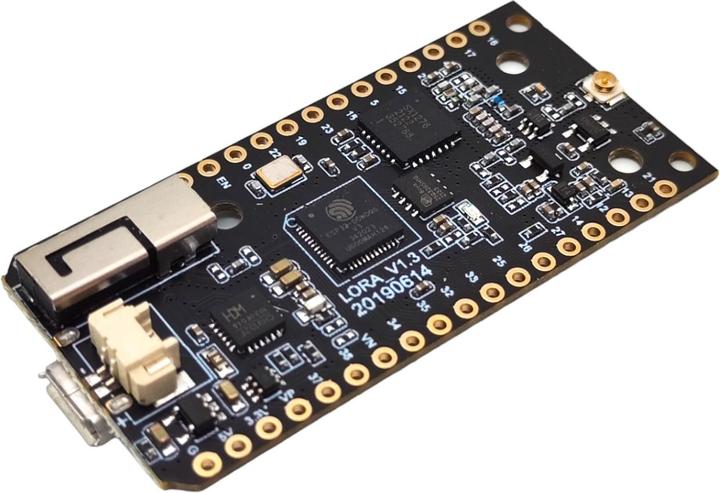

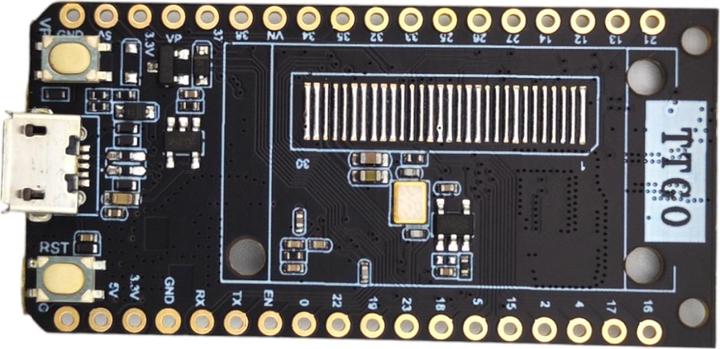

The LilyGo TTGO LoRa V1.3 is an advanced version of the popular ESP32 board with an integrated 868MHz SX1276 LoRa chip. It combines the power of the ESP32, including WiFi and Bluetooth connectivity, with the long-range capability of LoRa, making it ideal for IoT applications. This board features an improved microcontroller and is equipped with an additional programmable button for advanced projects. Programming is conveniently done via the micro USB port using the CH9102 USB/Serial chip. The V1.3 also supports the LiPo battery charging function, which enables a flexible power supply.
Recommended accessories:
LiPo battery 1000mAh JST 1.25 / Lithium Ion Polymer for LoRa TTGO
Features:
- ESP32 with SX1276 LoRa chip
- Programmable with Arduino IDE or MicroPython
- Micro-USB connection for easy programming
- JST 1.25mm LiPo connector for battery operation
Application examples:
- Weather station: Use the board to build a weather station that measures temperature, humidity, and air pressure. The data can be sent via LoRa to a base station to be retrieved from anywhere.
- Smart farming: Monitor soil moisture and environmental conditions in a field. Use LoRa to transmit the data to a central location to efficiently control irrigation and fertilization.
- City lighting: Develop a system to intelligently control street lighting by monitoring the status of lamps and adjusting lighting as needed.
Technical details:
- Manufacturer: Lilygo
- Manufacturer SKU: Q381
- MCU: ESP32, Tensilica LX6 dual-core processor
- Flash: 4MB
- Connectivity: WiFi, Bluetooth, LoRa
- Operating voltage: 2.7 to 3.6V
- Power supply:
- USB: Micro USB 5V
- Battery connection: JST 1.25mm
- Charging current: 500mA
- Battery voltage: 3.7-4.2V
- Programming languages: Arduino IDE, MicroPython
- USB/Serial chip: CH9102
- LoRa chip: SX1276
- Dimension: 52 x 25 x 7.3mm
- Weight: 26.1g

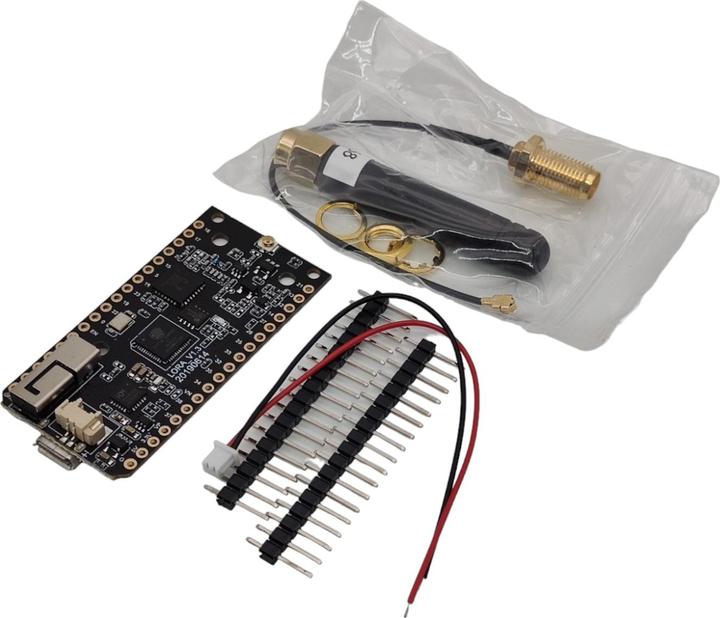

Scope of delivery:
- 1x LilyGo TTGO LoRa V1.3 ESP32 SX1276 EU868
- 2x 18pin pin headers
- 1x JST 1.25mm connection cable
- 1x LoRa antenna.
Development board type | Board |
Processor family | Tensilica |
Processor type | ESP32, LX6 |
Number of cores | 2 |
Item number | 43806180 |
Manufacturer | Lilygo |
Category | Development boards + Kits |
Release date | 13.3.2024 |
Development board type | Board |
Processor family | Tensilica |
Processor type | ESP32, LX6 |
Number of cores | 2 |
Flash memory | 4000 kB |
Power supply | Rechargeable battery operated, USB power delivery |
Operating voltage | 3.60 V |
Wireless transmission | Bluetooth, Wi-Fi |
USB ports | Micro USB-B |
Exact USB ports | Micro USB-B 2.0 (1x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x JST 1.25mm connection cable, 1x LilyGo TTGO LoRa V1.3 ESP32 SX1276 EU868, 1x LoRa antenna, 2x 18pin pin headers |
Additionally required (not included) | LiPo battery 1000mAh JST 1.25 |
Length | 52 mm |
Width | 25 mm |
Height | 7.30 mm |
Weight | 26.10 g |
Specifications may include unverified machine translations.
