Lilygo T-Embed Black ESP32-S3 with encoder and display
free shipping
Delivered between Tue, 29.4. and Wed, 30.4.
8 items in stock at third-party supplier
8 items in stock at third-party supplier
Supplied by
Product details

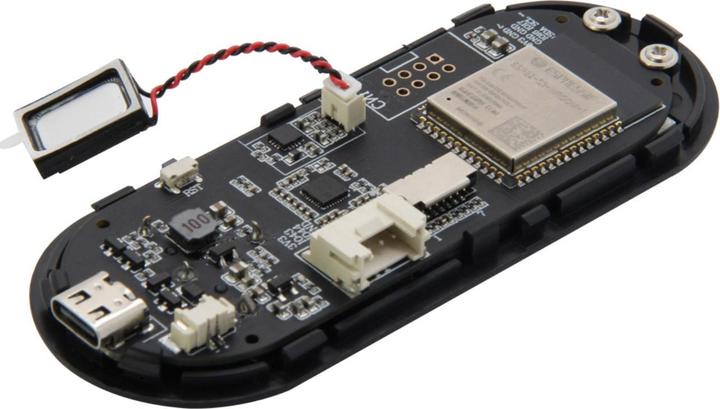

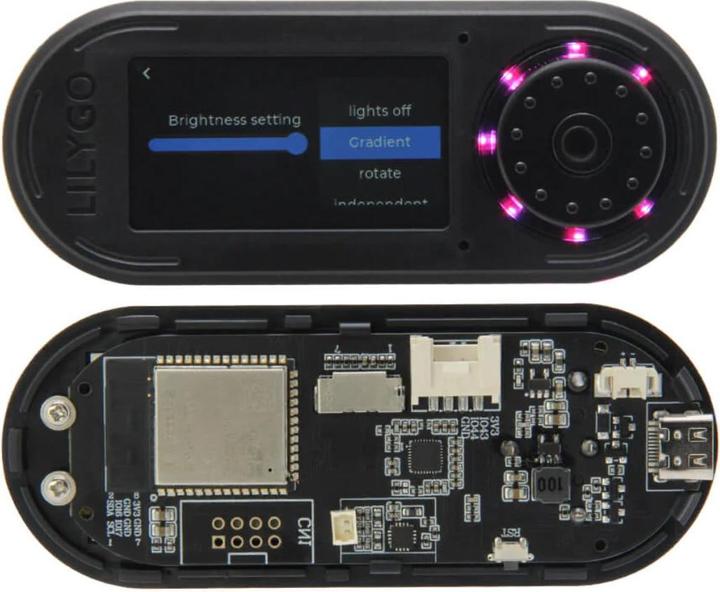

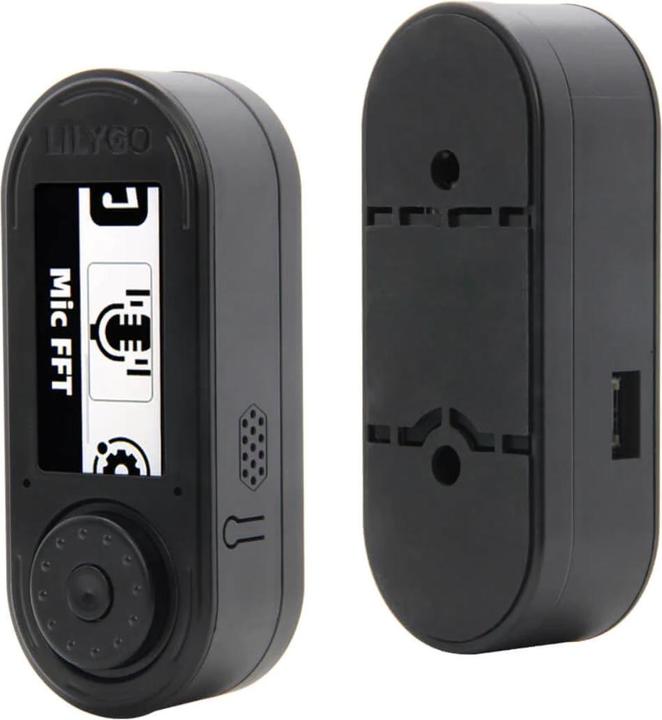

The T-Embed from Lilygo is a development board that uses the ESP32S3 chip and offers a variety of functions such as WIFI, BLE, TF, LED and TFT_LCD. It has an integrated 1.9-inch display that allows you to view any content and control it with a rotary knob. Additionally, it comes with a speaker that can be easily connected via a JST 1.25 connector. On the T-Embed's GitHub page you can find the firmware, examples and other important documents. The board is ideal for hobbyists and inventors.
Features:
Rotary knob with seven RGB LEDs
Reset and boot button
Mini loudspeaker
Technical details:
Manufacturer: Lilygo
Manufacturer SKU: K209

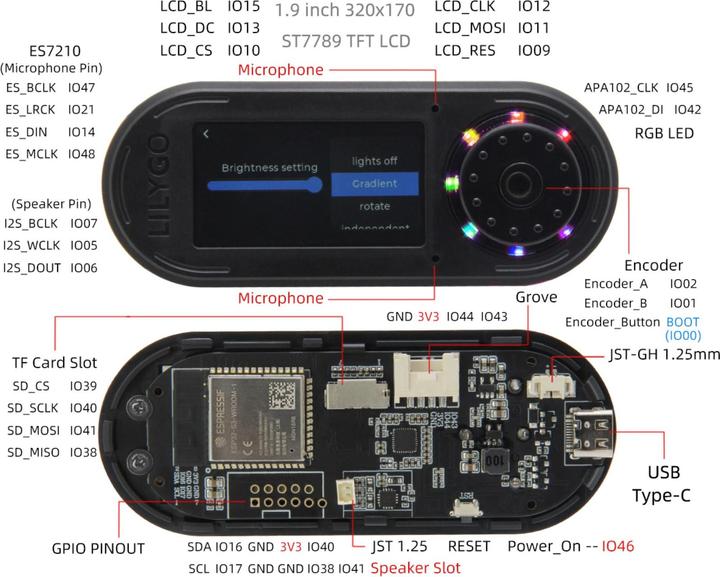

MCU: ESP32-S3 dual-core LX7 microprocessor
ESP32-S3 Wi-Fi: Wi-Fi 802.11 b/g/n
ESP32-S3 Bluetooth: BLE5
ESP32-S3 Flash memory: 16MB
ESP32-S3 PSRAM: 8MB
ESP32-S3 Bat voltage detection: IO04
Programming platform: Arduino IDE, ESP IDF
Display model: ST7789V IPS TFT LCD
Display driver: ST7789
Display resolution: 170x320 pixels
Display diagonal: 1.9 inch
Display Interface: SPI
Colour: White, Orange
APA102 RGB ring: 7x LED
Connector: JST GH 1,25mm, Grove (IIC, UART), USB type-C, TF-Card Slot, PPIO PINOUT, JST 1,25 (Speaker)
Microphone: 2
Dimensions: 96 x 39 x 30mm
Weight: 102g

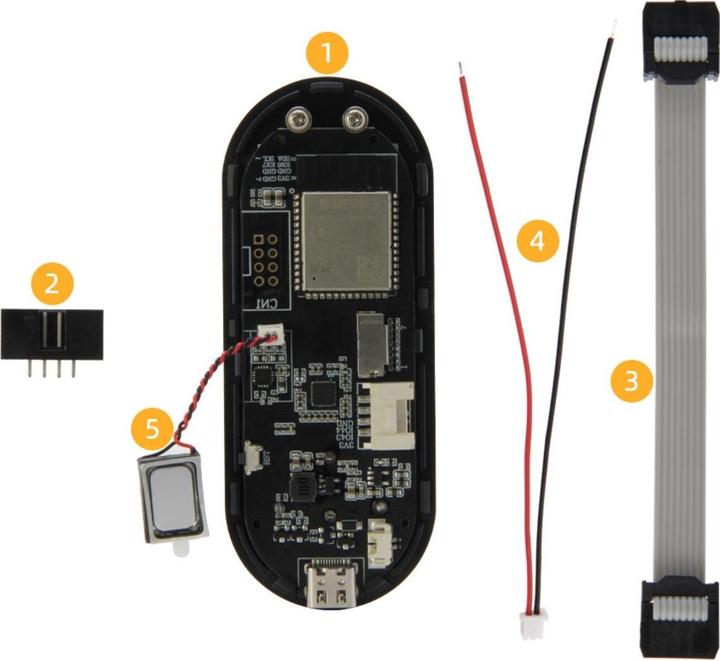

Scope of delivery:
1x LilyGo T-Embed ESP32-S3 with encoder and display.
1x idc3 box header connector 2,54 (2x8PIN)
1x Box Header cable 2, 5 8-pin 10cm
1x JST 1.25mm 2PIN
1x speaker 1x1511 (8Ω 1w).
Development board type | Board |
Memory | 8 MB |
Processor type | ESP32 |
Item number | 37758202 |
Manufacturer | Lilygo |
Category | Development boards + Kits |
Release date | 31.8.2023 |
Development board type | Board |
Processor type | ESP32 |
Memory | 8 MB |
Flash memory | 16000 kB |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
USB ports | USB-C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x LilyGo T-Embed ESP32-S3 with encoder and display, 1x idc3 box header connector 2.54 (2x8PIN), 1x box header cable 2, 5 8-pin 10cm, 1x JST 1.25mm 2PIN, 1x speaker 1x1511 (8Ω 1w) |
Additionally required (not included) | 1x idc3 box header connector 2.54 (2x8PIN), 1x box header cable 2, 5 8-pin 10cm, 1x JST 1.25mm 2PIN, 1x loudspeaker 1x1511 (8Ω 1w) |
Length | 30 mm |
Width | 96 mm |
Height | 39 mm |
Weight | 102 g |
