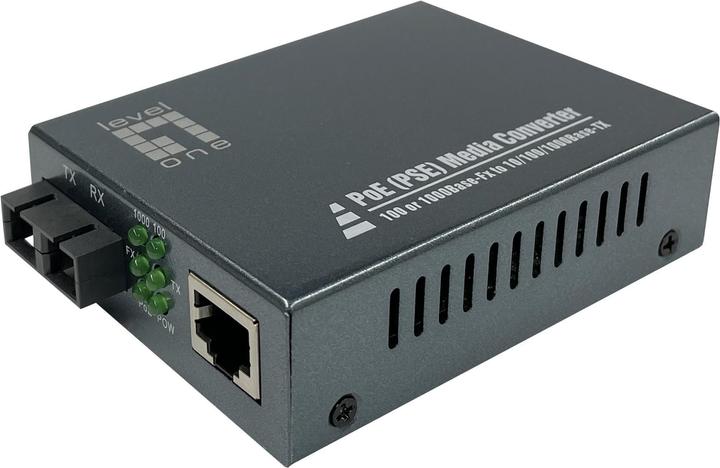

LevelOne Converter GVT-2014 10/100/1000T>RJ45 to PSE

The GVT-2014 SMF SC media converter can convert network signals between copper and fiber-based networks. The converter is equipped with a 10/100/1000Base-T RJ-45 port, supports full-duplex and half-duplex switch connectivity, and features automatic detection for 10Base-T, 100Base-TX, and 1000Base-T. When used in multimode with fiber cabling, the network range can be extended up to 20 km. The device has built-in dip switches for easy converter configuration and is based on intelligent LFP (Link Fault Pass-through), allowing the converter to monitor both fiber and copper connections for signal loss, as well as offering cut-through and smart pass-through modes.

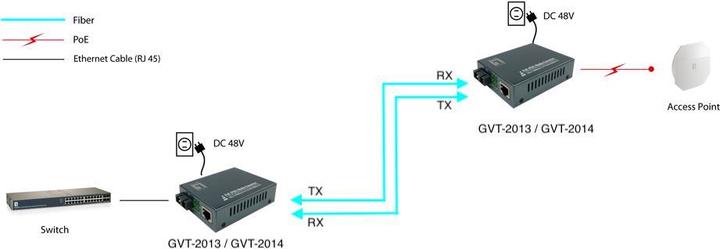

The LevelOne GVT-2014 is a single-port, end-span IEEE 802.3at High Power over Ethernet media converter. It is specifically designed to meet the growing power demands of network devices such as PTZ (Pan, Tilt, and Zoom) network cameras, PTZ speed domes, color touchscreen VoIP phones, multi-channel wireless LAN access points, and other network devices that require higher power to operate normally. Equipped with an SC port for Gigabit SC transceivers, it is compatible with multimode fibers. The GVT-2014, with its high Power over Ethernet capability, is the ideal solution for delivering data and power directly to network devices via the RJ45 interface, eliminating the need for additional outlets and electrical cables.
