Lamptron Fc5 V2

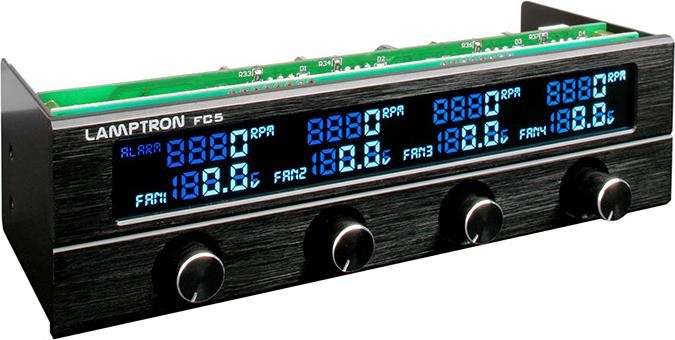

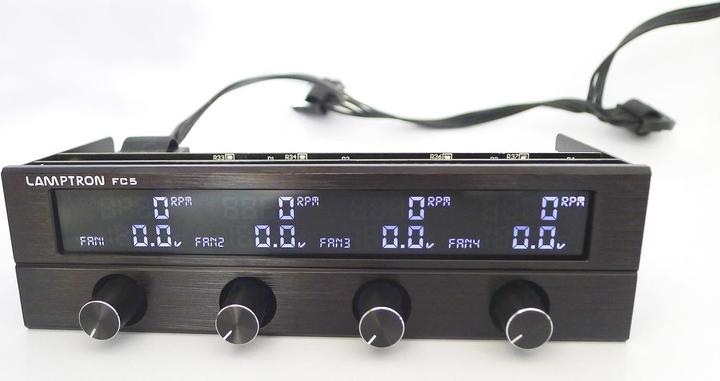

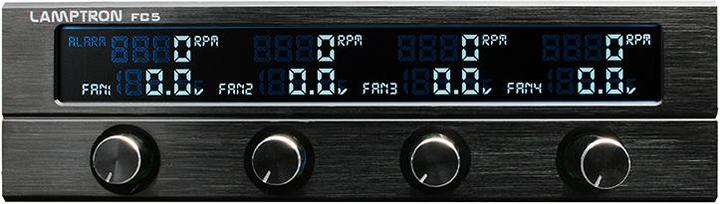

In order to adapt the cooling performance and volume development of the PC to the individual and changing requirements, this control enables direct access via four channels. The manufacturer Lamptron opted for a classic layout with rotary controls. These are accommodated on a solid, black 5.25-inch aluminium screen and are intended for corresponding slots. According to the manufacturer, each of the four channels can be loaded with a maximum of 30 watts. The stepless adjustment via rotary knob offers a bandwidth of 0 to 12 volts. Thanks to four freely placeable temperature sensors, the heat output can always be kept in view in order to select the optimum speed. The sensors are mounted on the tips of extra long cables. Since the 3-pin fan cables are also generously dimensioned, even remote locations in big-tower housings can be reached. The control unit is connected to the power supply unit by means of a 4-pole Molex and supplied via this. In addition to its high level of functionality, Lamptron's 5 fan controller also has a cool look. In addition to the choice of high-quality materials, the lighting is particularly striking. Thanks to multi-color LEDs, a total of seven colors can be displayed. They are selected via jumpers on the back. Further jumpers enable the change between the temperature units degrees Celsius and Fahrenheit as well as the (De)activation of the alarm function. If necessary, this reports critical temperatures.

Note: The knobs protrude slightly so that installation is usually not possible in enclosures with front doors.
