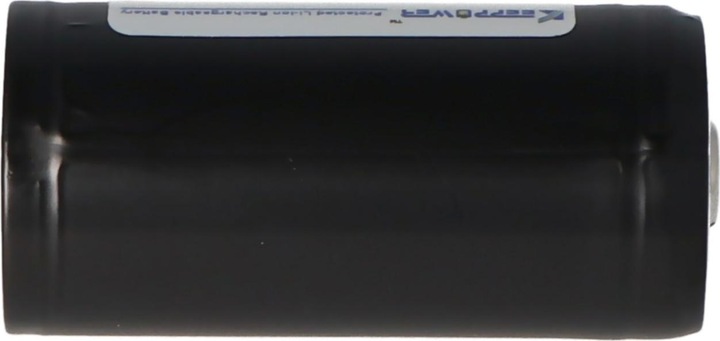

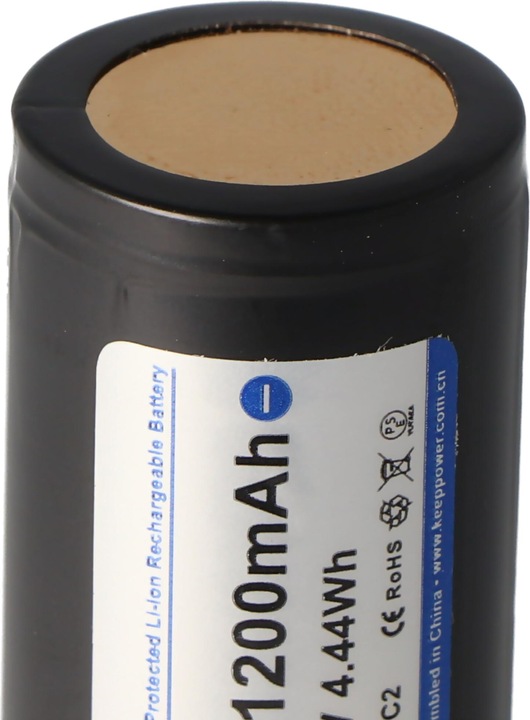

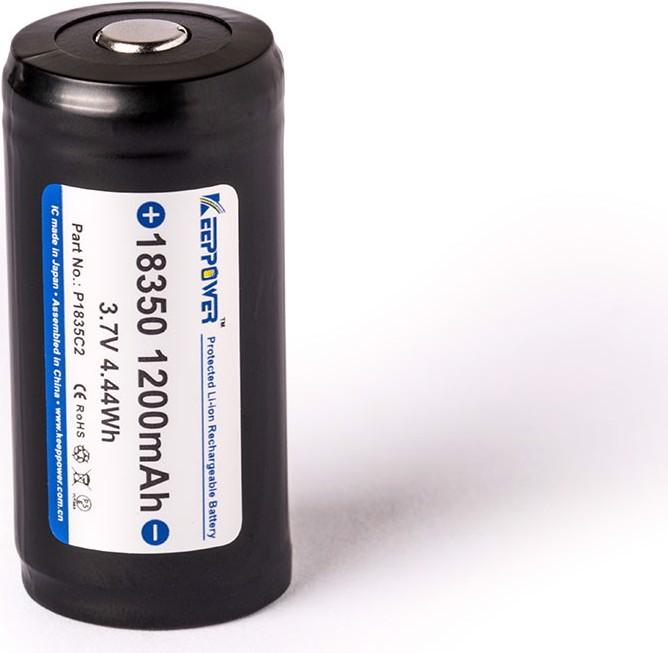

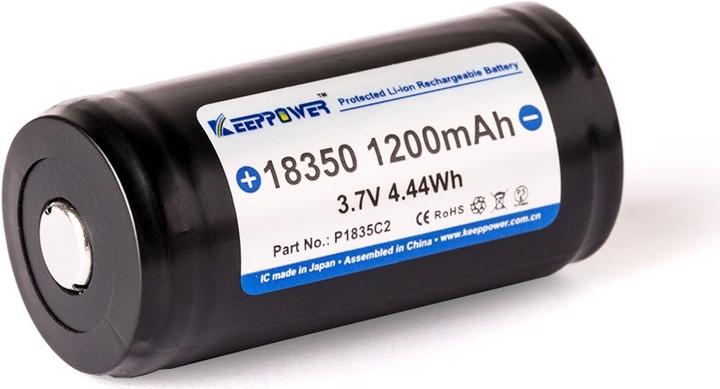

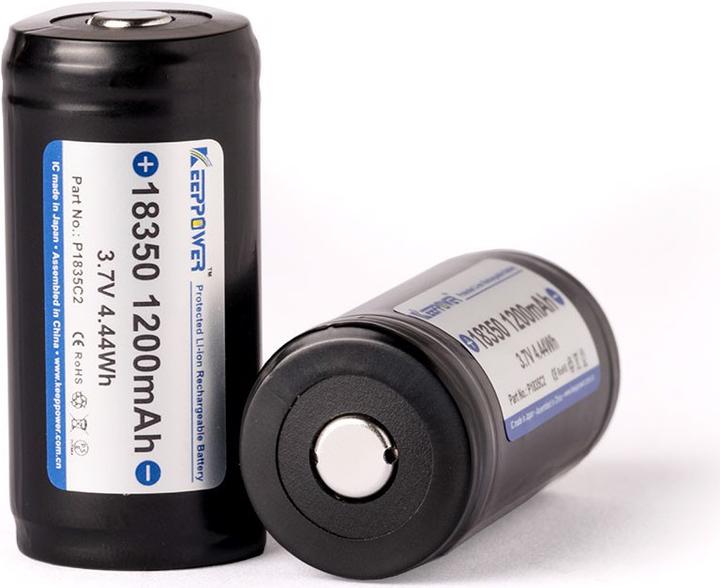

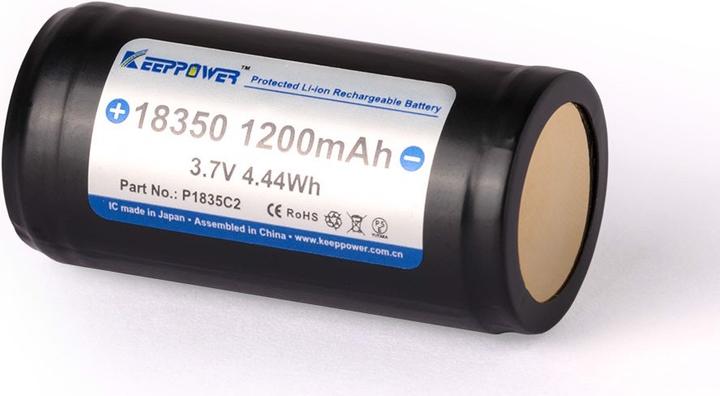

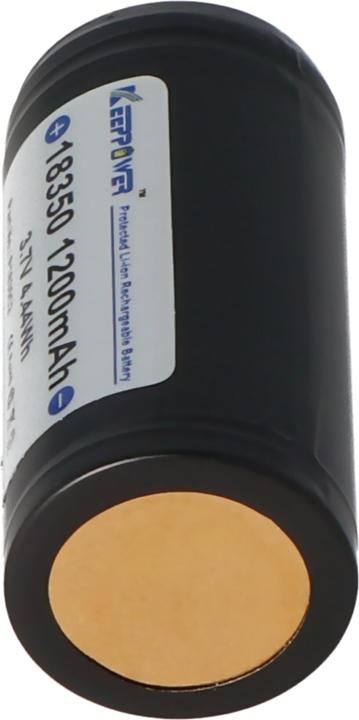

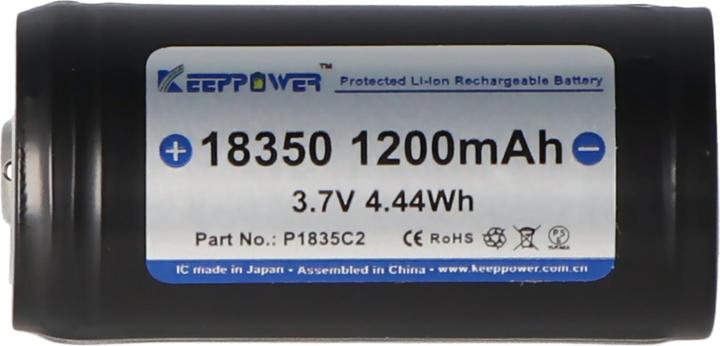

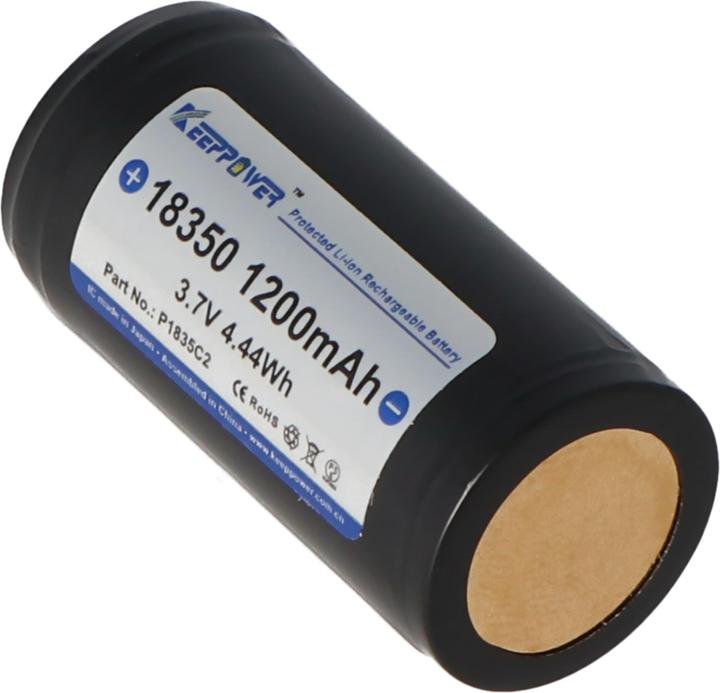

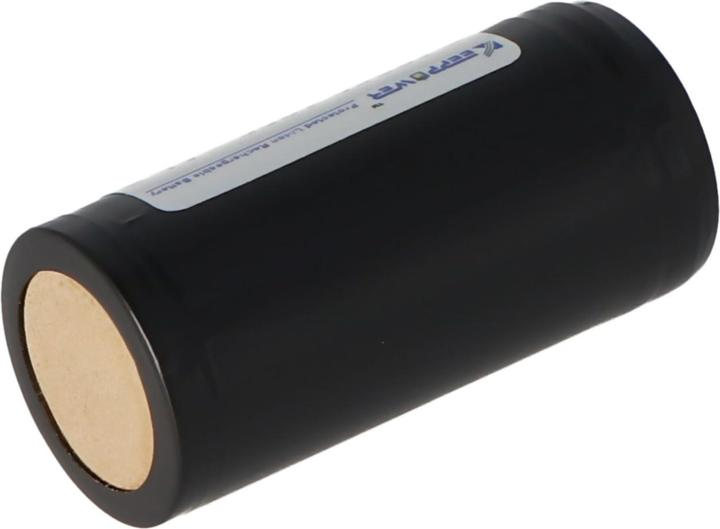

Keeppower 18350

Endurance and power stability are provided by the Keeppower 18350 batteries. The dimensions are approximately 39 x 18.6 mm. The Keeppower 18350 lithium-ion battery is equipped with a protection circuit (PCB) that offers short circuit, overcharge, and deep discharge protection. Made in Japan.

Designed for use in flashlights, LEDs, unregulated battery carriers, etc.

Technical specifications:

• Cell: 18350
• Capacity: 1200 mAh
• Min. capacity: 1100 mAh
• Nominal voltage: 3.6 V - 3.7 V
• Charge termination voltage: 4.2 V - 0.05 V
• Discharge termination voltage: 2.5 V

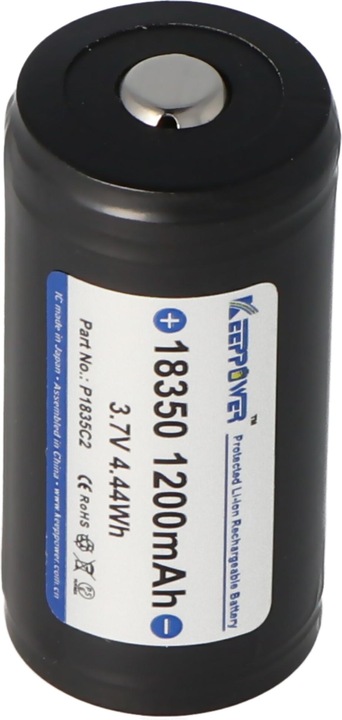

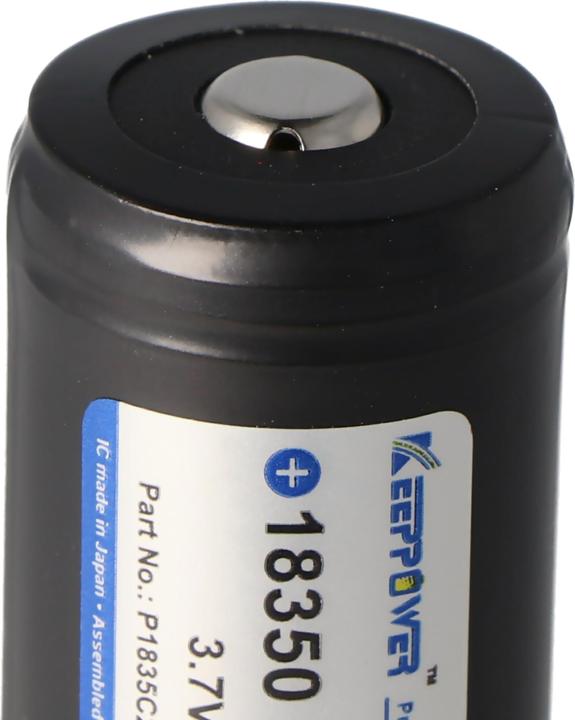

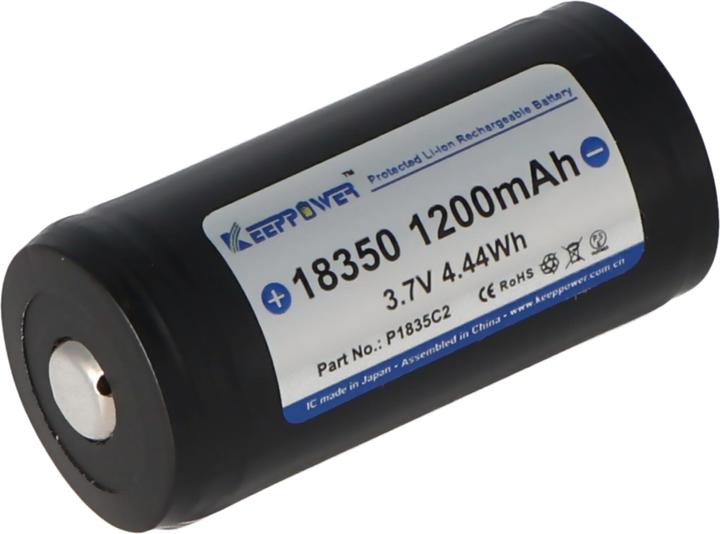

• Positive terminal: raised (Button Top)
• Max. discharge current: 8 A
• Chemistry: LiCoMn (mixed chemistry)
• Protection circuit: PCB integrated
• Charging method: CC-CV
• Diameter: 18.60 mm ± 0.15 mm
• Height: 39 mm ± 0.15 mm
• Weight: 29 g ± 1 g

Safety notes: Please note that removing or damaging the protective electronics (PCB) can lead to a short circuit, fire, or explosion. To avoid health hazards, injuries, or property damage, you must read and follow the instructions and warnings on our safety sheet for lithium-ion batteries before using or charging a lithium-ion battery.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

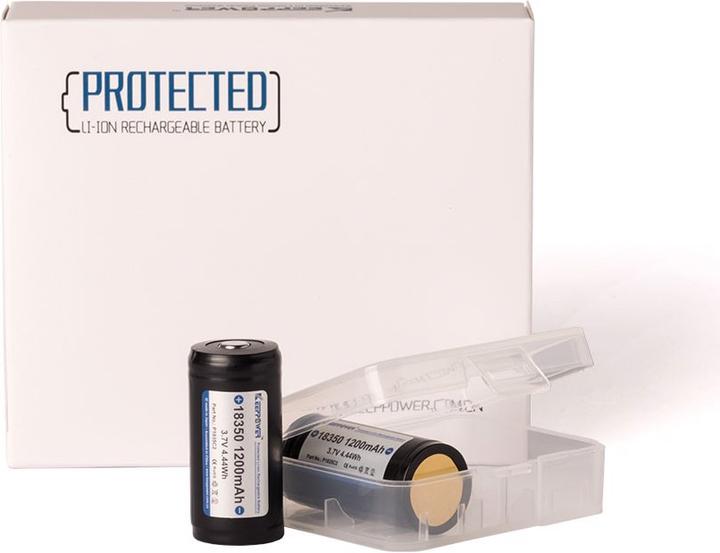

Delivery includes: 1 piece of Keeppower 18350. When ordering two batteries, a battery protection box is included for free.

Technical specifications for "Keeppower 18350 - 1200 mAh, 3.6 V - 3.7 V Li-Ion battery protected":

• Normal charging current (gentle): 500 mAh approx. 5 h
• Max. charging current: 1000 mAh approx. 3 h
• Operating temperature charging: 0 °C - 45 °C
• Operating temperature discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 V.
