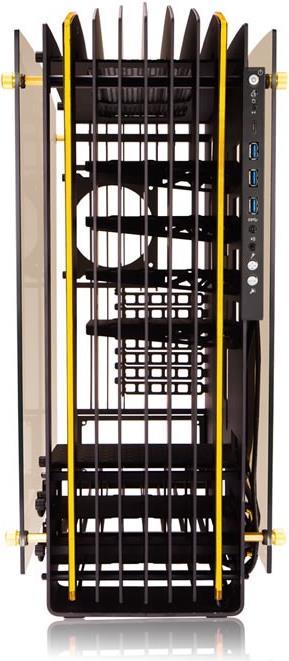

In Win H-Frame 2.0

ATX, mATX, E-ATX
Currently out of stock

Product details

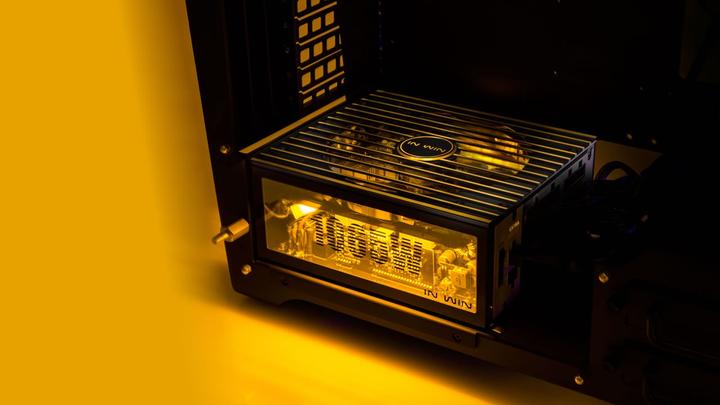

Extremely powerful 1065-watt power supply with unique design included

As a special anniversary bonus, IN WIN equips the H-Frame 2.0 with an extremely powerful 1065-watt power supply right out of the box. This fully modular power supply features side windows made of 4 mm thick tempered glass, making it the first power supply ever to do so, adding an additional eye-catching element within the case. Additionally, it is equipped with stylish LED lighting that can be turned off at the back of the power supply if desired.

With an efficiency of around 92% and extensive cable options, it can easily support high-end systems with multiple graphics cards. The large 165 mm fan ensures adequate cooling and operates at a pleasantly low noise level of under 25 dB. A switch on the power supply allows the fan to continue running even after the PC is turned off, providing improved cooling and extended longevity. Users can choose whether the fan should run for 30 seconds, 60 seconds, or continuously. Of course, it can also be set to turn off with the PC.

The back of the power supply also features a USB port with fast charging capability, supporting Apple 2.4A and Samsung 2.0A Fast Charge. This allows smartphones or tablets to be charged very quickly even when the PC is turned off.

Key specifications

PC case design
Full tower
Number of 3.5" drive slots (internal)
6 x
"Number of 5.25"" drive slots"
0 x
Max. length graphics card
440 mm

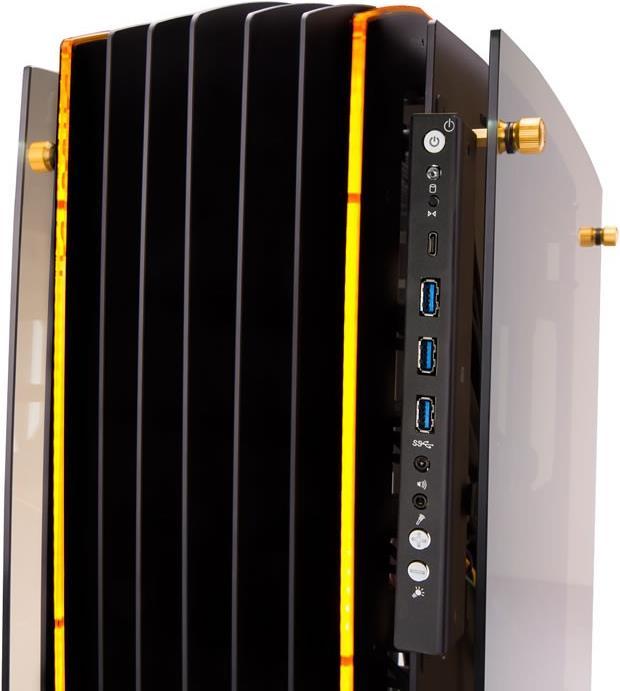

Front connectors
HeadphonesLED lighting Brightness controlMicrophoneUSB 3.0
PC case features
Modular HDD cageSide windows
Max. height CPU cooler
185 mm
Item number
5844644

General information

Manufacturer
In Win
Category
PC case
Manufacturer no.
H-Frame 2.0
Release date
14.7.2016
External links

Colour

Colour
Gold
Exact colour description
Gold

Material

Material group
GlassMetal
Material
AluminiumHardened glass

PC case properties

PC case design
Full tower
Form factor
ATXE-ATXMicro ATX (mATX)
"Number of 5.25"" drive slots"
0 x
Number of 3.5" drive slots (internal)
6 x
"Number of 2.5"" drive slots"
2 x
Number of expansion card slots
8 x
Max. length graphics card
440 mm
Max. height CPU cooler
185 mm
Max length of power supply
210 mm
PC case features
Modular HDD cageSide windows

Connections

Front connectors
HeadphonesLED lighting Brightness controlMicrophoneUSB 3.0

Cooling properties

Number of fans
0 x
Number of fan slots
4 x
Fan location
Rear sideTop side
Number of radiator mounts
1
Radiator locations
Top side

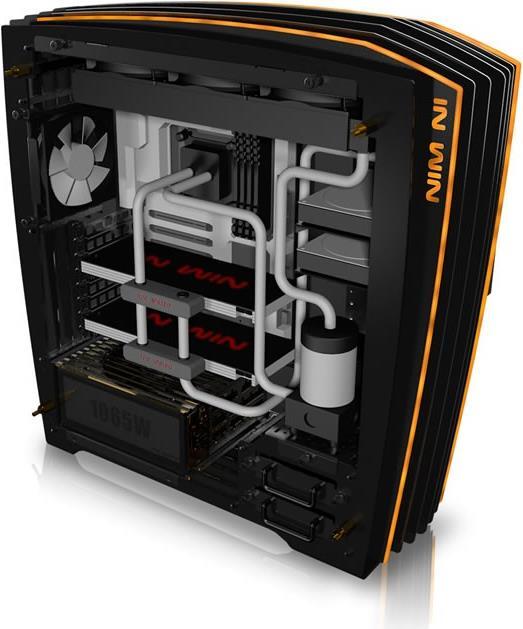

Cooling properties
Water cooling possible

Rear side

Fans included
Optional fan
Fan mount locations
1x 120mm
Radiator mount locations
No mounting possible

Top side

Fans included
Optional fan
Fan mount locations
3x 120mm
Radiator mount locations
1x max. 360mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation materialPower supply

Product dimensions

Height
59.70 cm
Length
58.20 cm
Width
27.10 cm
Weight
19.12 kg
