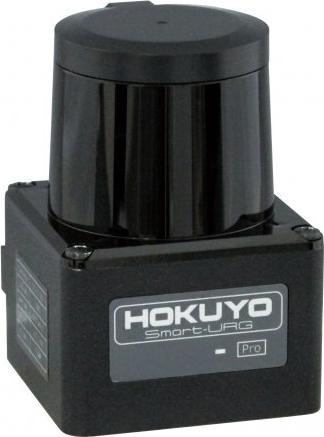

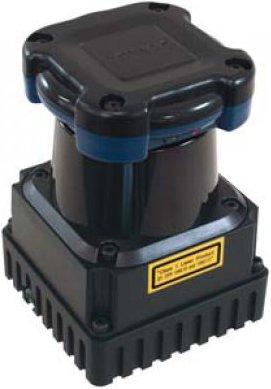

Hokuyo UTM-30LX-EW LiDAR

The Hokuyo UTM series impresses with its extremely compact design, featuring a wide opening angle, combined with a high protection class and measurement range. The extensive documentation, along with versatile software packages and hardware interfaces, such as those for ROS, allows for flexible use and time-saving integration into existing systems. The Hokuyo UTM-30LX-EW has been developed for both indoor and outdoor use, enabling a maximum range of 30 m with a tolerance of +/- 30 mm or 50 mm and an opening angle of 270°.

Differences UTM & UXM

The Hokuyo UXM-30 LiDAR is fully encapsulated and has a high protection class of IP67 with a maximum scanning range of 80 m. This variant is particularly suitable for outdoor applications. The UTM-30 LiDAR also offers a high range of up to 60 m and is designed for indoor use.

Dimensions of the Hokuyo UTM series

Technical Data

Range: 30 m
Tolerance: +/- 30 mm
Opening angle: 270°
Dimensions: 62 x 62 x 87 mm
Operating voltage: 12 V DC
Power consumption: 0.7 A in operation and 1 A at startup
Scan frequency: 40 Hz
Interface: Ethernet 100BASE-TX
Protection class: IP67
Operating temperature: -10 °C to 50 °C / max. 85% humidity
Weight: 210 g (370 g with cable)

Scope of delivery

Hokuyo UTM-30LX-EW LiDAR.
