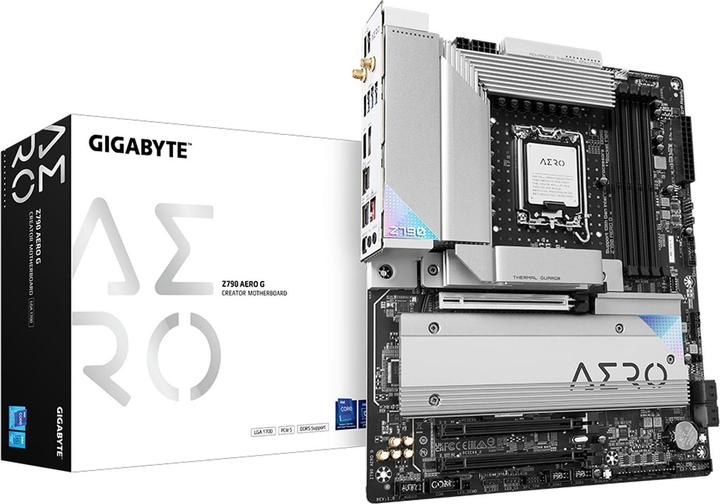

Gigabyte Z790 AERO G

LGA 1700, Intel Z790, ATX
13Ratings
BrandMore from Gigabyte
Delivered between Thu, 1.5. and Fri, 2.5.
5 items in stock at third-party supplier
Supplied by

Product details

The GIGABYTE Z790 Aero G is an ATX mainboard with the high-end Intel Z790 chipset and socket LGA 1700. The mainboard is suitable for desktop processors of the 12th generation and 13th generation Intel Core CPUs, codename: Alder Lake and Raptor Lake. It supports DDR5 working memory with up to 7,600 MHz and is ideally suited for overclocking thanks to its outstanding voltage supply. In addition to a stable power supply, the GIGABYTE Z790 Aero G convinces with other highlights that make overclocking your system much easier. Buttons for Q-Flash Plus, Reset or the system start ensure safety during overclocking attempts.

Key specifications

Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (5x), S-ATA III (1x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button
Item number
22650429

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
Z790 AERO G
Release date
26.9.2022
Sales rank in Category Motherboards
133 of 972
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel Z790
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5-5600
Max. RAM OC
7600 MHz
Supported memory speed
4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7600 MHz, 7800 MHz, 8000 MHz, 8200 MHz, 8400 MHz, 8600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x)
Video connection version
HDMI 2.0
Multi-GPU technology
AMD Quad-GPU CrossFireX, NVIDIA SLI

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Intel (Wi-Fi 6) AX 211
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC1220-VB
Audio channel
7.1 Channel
Audio Connections
Optical TOSLINK (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 (5x), S-ATA III (1x)
Expansion slot
PCI Express x16 (3x)
PCI express version (max.)
5

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x)

Power supply

Power connectors
8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
35 mm
Weight
3 g

Package dimensions

Length
34.40 cm
Width
27.40 cm
Height
8.30 cm
Weight
2.18 kg

30-day right of returnReturn policy
36 Months Bring-in WarrantyWarranty provisions
