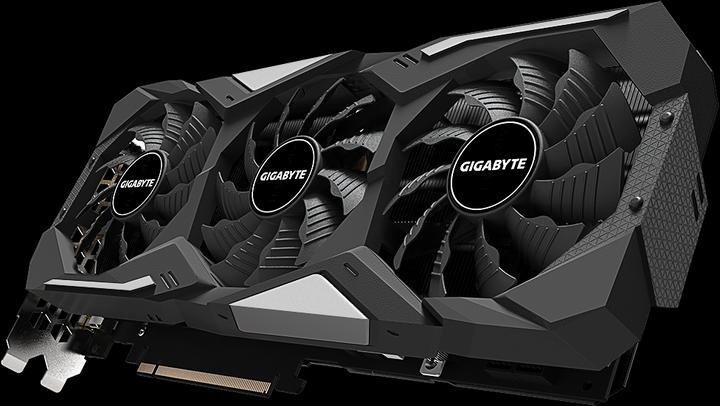

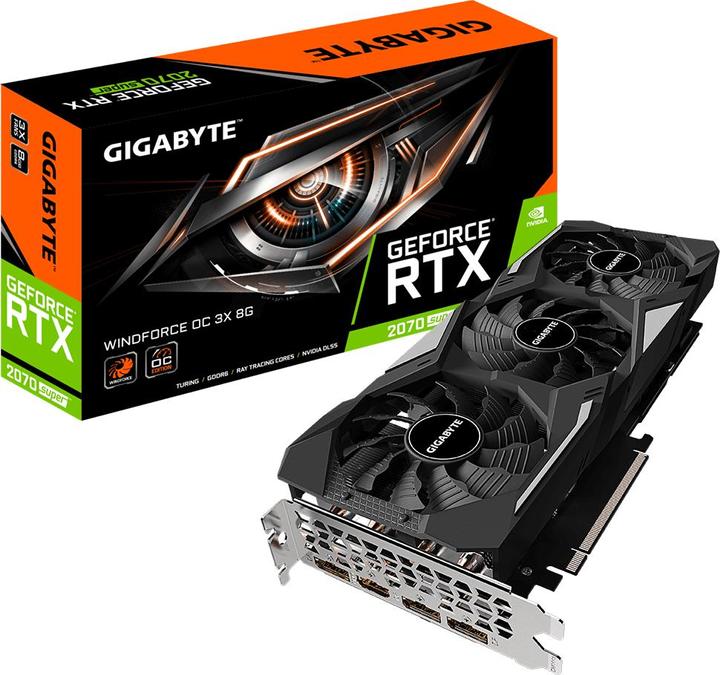

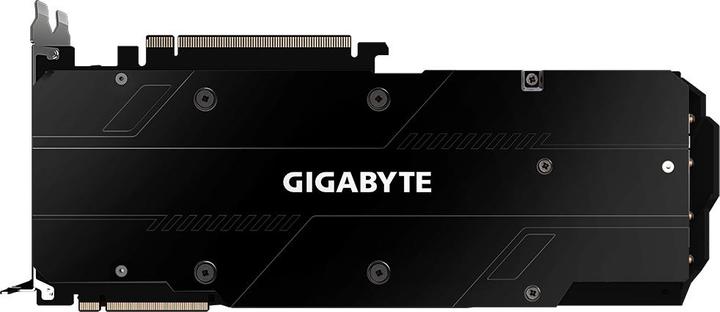

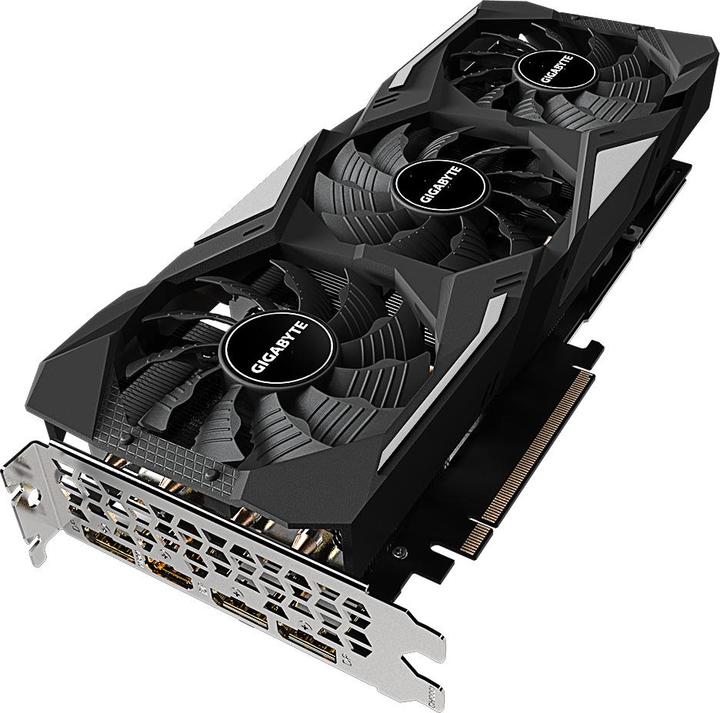

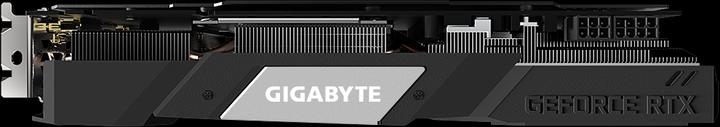

Gigabyte GeForce RTX 2070S Windforce OC

8 GB
Currently out of stock

Product details

The Gigabyte GeForce RTX 2070 Super Windforce OC 3X 8G is part of NVIDIA's 2000 series gaming graphics cards and serves as a link between high-end and mid-range options. It features a TU104-410-A1 graphics chip with 2,560 CUDA cores. The chip is manufactured using a 12nm FinFET process and is based on the "Turing" GPU architecture. It utilizes 8GB of GDDR6 VRAM, while ray tracing and tensor cores enable fantastic lighting and shadow effects. In the new Super variant, the base and boost clock speeds have been increased, and the shader units (CUDA cores) have been raised from 2,304 to 2,560.

Key specifications

Length
28.60 cm
Number of shaders
2560 x
Graphics card model
GeForce RTX 2070 Super
Video memory clock
14 GHz
Max. connected monitors
4 x
Max. Video resolution
7680 x 4320 pixels
Power consumption
215 W
Item number
12004058

General information

Manufacturer
Gigabyte
Category
Graphics card
Manufacturer no.
GV-N207SWF3OC-8GD
Release date
26.9.2019
Sales rank in Category Graphics card
209 of 1082

Graphics card properties

Max. connected monitors
4 x
PCI Express version
PCIe 3.0
Max. Video resolution
7680 x 4320 pixels
Expansion card form factor
2.5 Slots
LED colour
RGB

Graphics processing unit

Graphics chip (GPU)
nVidia GeForce
Graphics card model
GeForce RTX 2070 Super
Clock frequency
1785 MHz
Boost frequency
1785 MHz
Number of shaders
2560 x

Video memory

Video memory type
GDDR6
Storage capacity
8 GB
Video memory clock
14 GHz
Memory Interface
256 bits
Memory Bandwidth
448 GB/s

Cooling properties

Graphics card cooling system
Active cooler

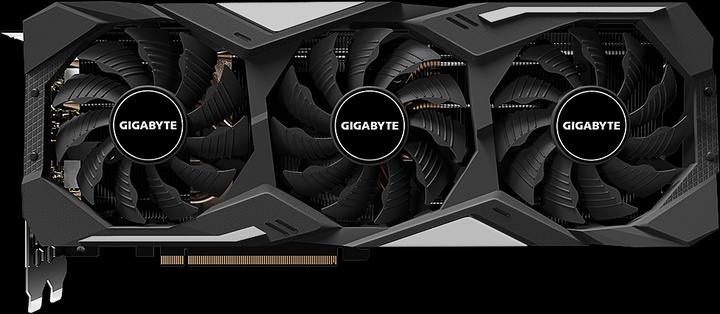

Number of fans
3 x

Graphics card technologies

DirectX version
12
OpenGL version
4.50
Multi-GPU technology
NVIDIA SLI

Connections

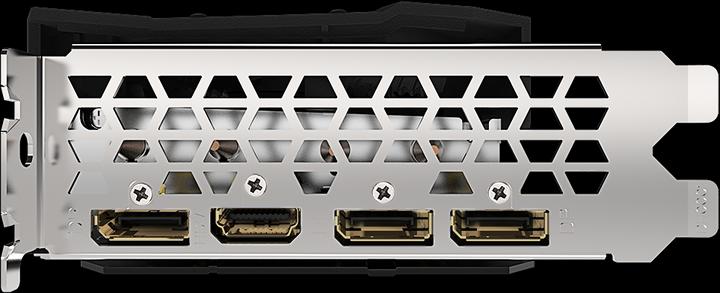

Video connections
DisplayPort (3x)HDMI (1x)
HDMI version
2.0
DisplayPort version
1.4

Power supply

Power consumption
215 W
Min. recommended system performance
650 W
Power connectors
6-pin PCI-E8-pin PCI-E

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
28.60 cm
Width
11.40 cm
Height
5 cm

Package dimensions

Length
40.50 cm
Width
23.60 cm
Height
9.30 cm
Weight
1.58 kg
