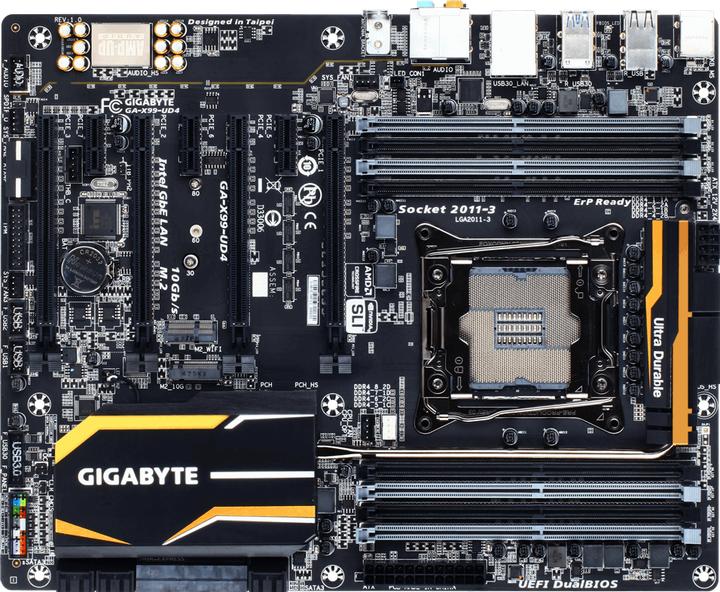

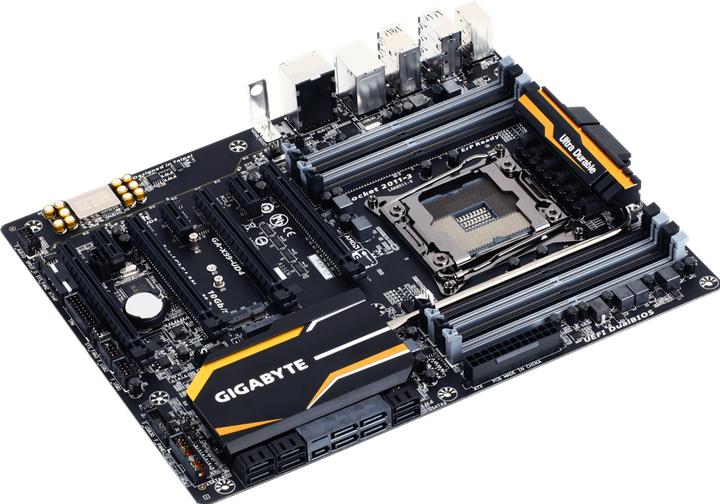

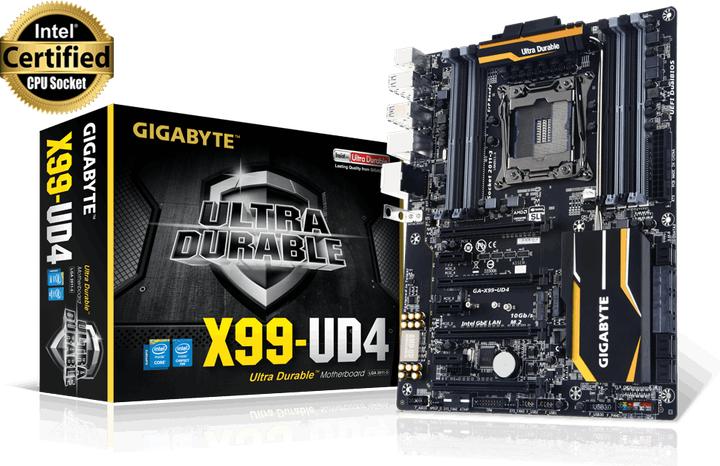

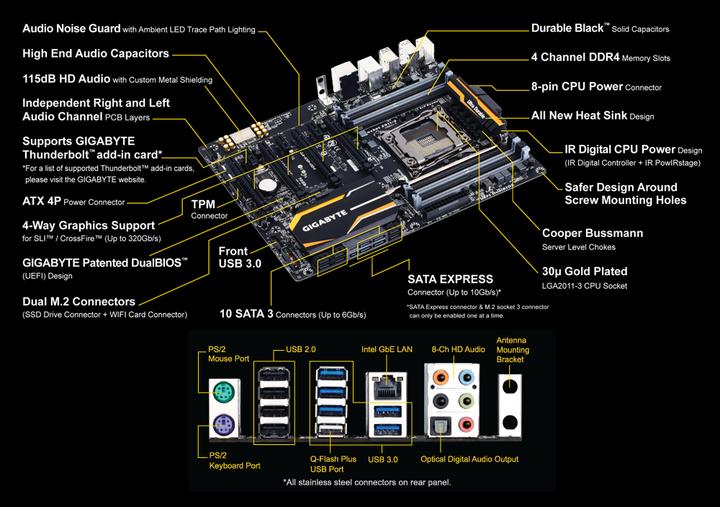

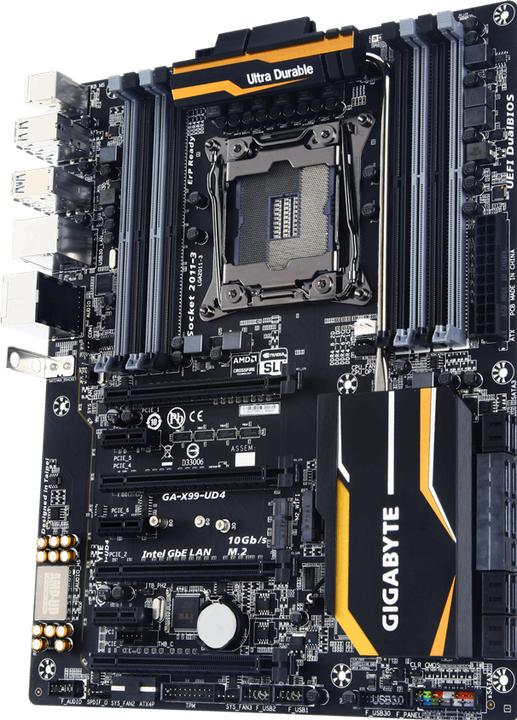

Gigabyte Ga-X99-Ud4

LGA 2011-v3, Intel X99 Express, ATX
Currently out of stock

Product details

The Ga-X99-Ud4 motherboard is a powerful foundation for high-performance computing. It supports the LGA 2011-v3 processor socket and is compatible with the Intel Core i7 6th Generation. With an ATX form factor, it provides ample space for expansions and a variety of connectivity options. The motherboard is equipped with the Intel X99 Express chipset, which enables high data transfer rates and efficient resource management. It supports up to 128 GB of DDR4 RAM, making it ideal for memory-intensive applications. The internal connectivity options include ten S-ATA III ports, ensuring fast connections to storage devices. Additionally, the Ga-X99-Ud4 supports NVIDIA SLI and AMD CrossFireX, making it an excellent choice for gaming and graphics-intensive applications.

  • Supports up to 128 GB of DDR4 RAM with a maximum speed of 3333 MHz (OC)
  • Offers extensive expansion options with 10 S-ATA III ports
  • Compatible with NVIDIA SLI and AMD CrossFireX for enhanced graphics performance
  • Integrated Realtek ALC1150 audio chip for high-quality sound
  • BIOS type: UEFI for user-friendly and efficient system configuration.

Key specifications

Processor family
Core i7 6th Gen
Memory type
DDR4-RAM
Number of memory modules (RAM)
8 x
Internal connection options
S-ATA III (10x)
Mainboard features
Clear CMOS Button
Item number
5871771

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
GA-X99-UD4
Release date
3.8.2016
External links

Motherboard properties

Form factor
ATX
Socket
LGA 2011-v3
Chipset
Intel X99 Express
Mainboard features
Clear CMOS Button
BIOS type
UEFI

Processor

Processor family
Core i7 6th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
8 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2133
Max. RAM OC
3333 MHz
Supported memory speed
2133 MHz2400 MHz2666 MHz3000 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Multi-GPU technology
AMD 3-Way CrossFireXAMD CrossfireXAMD Quad-GPU CrossFireXNVIDIA Quad SLINVIDIA SLINVIDIA Tri-SLI

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC1150
Audio channel
5.1 channels
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (10x)
Number of fan connector
5

Power supply

Power connectors
24-pin ATX8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
305 mm
Width
244 mm
Height
244 mm
