Fractal Define R5 Black
ATX, mATX, Mini-ITXDelivered between Sat, 3.5. and Sat, 17.5.
6 items ordered
6 items ordered
free shipping
Product details

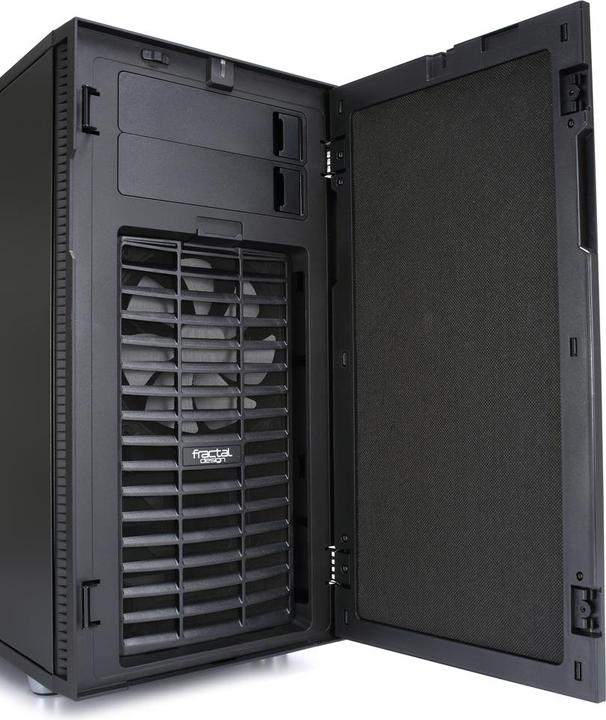

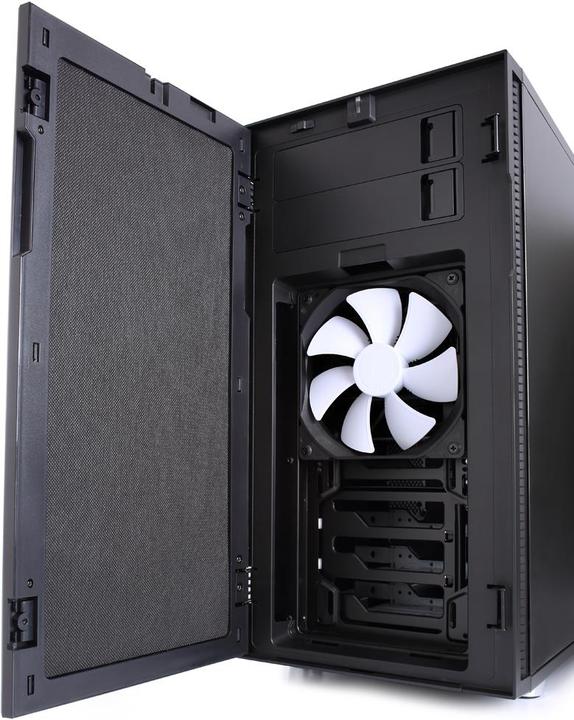

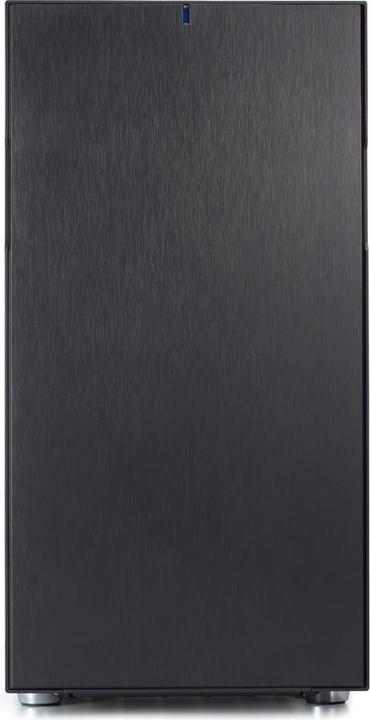

What sets the Fractal Design Define R5 case apart? Elegant appearance and robust construction. The Fractal Design Define R5 is a computer case that immediately catches the eye with its understated elegance. The special feature of this case is not only its stylish look but also its high functionality. It is very sturdy, well-crafted, and stable. The front door can be mounted to open either left or right, which greatly simplifies the installation and handling of various components.

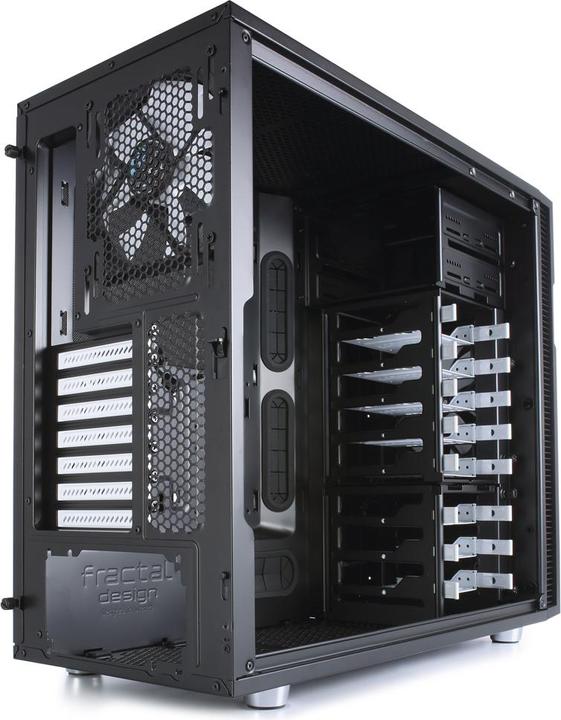

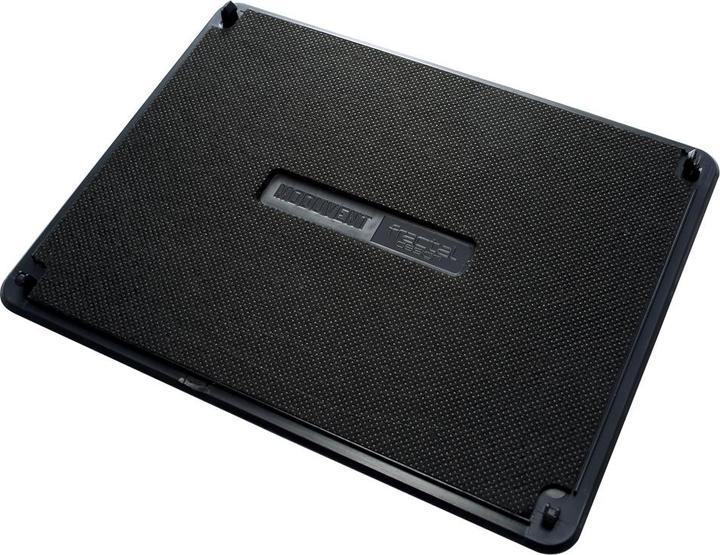

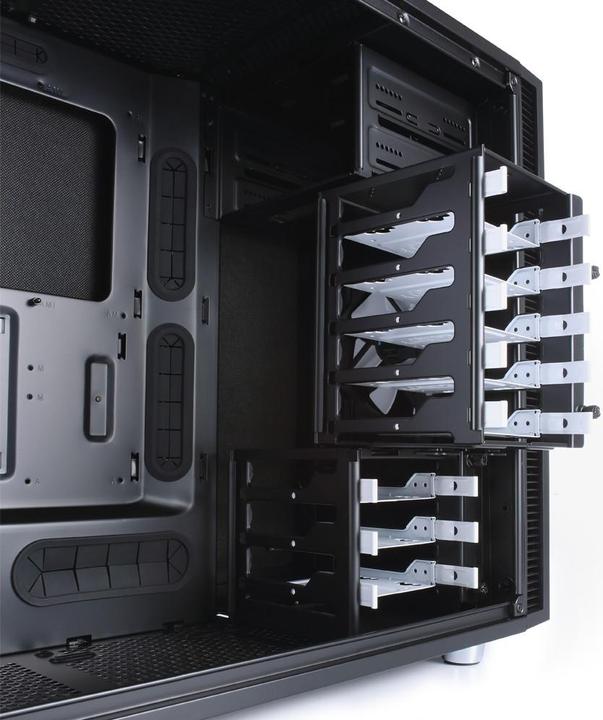

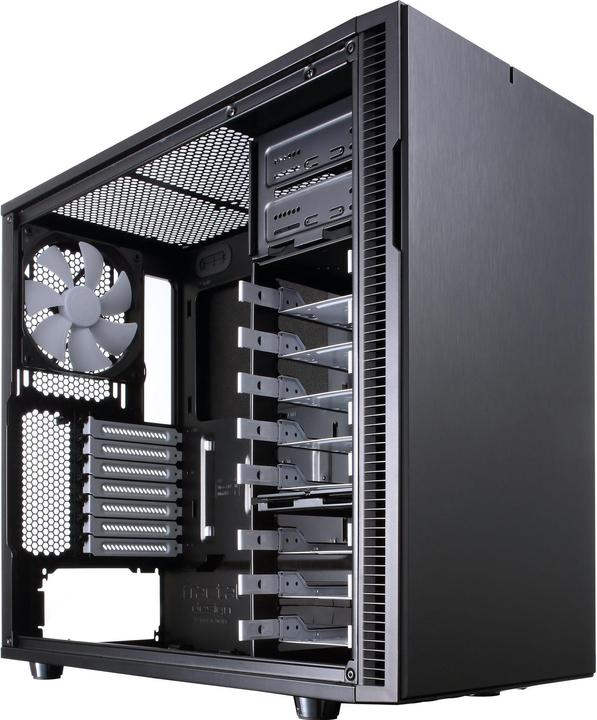

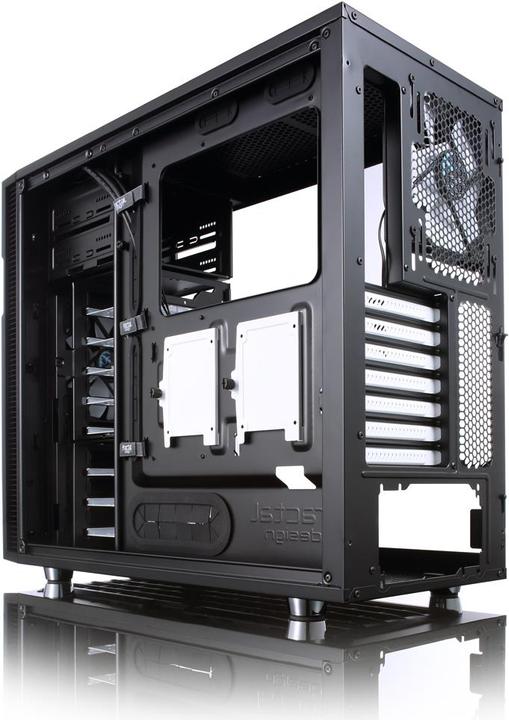

Ample space for your hardware. The Fractal Design Define R5 accommodates a wide range of hardware, and the case benefits from its high modularity. This allows you to flexibly, easily, and quickly install and remove components. You have seven expansion slots, four ModuVent panels (one on the side and three on top of the case), as well as nine spots for fan installation and ten drive bays for HDDs/SSDs.
PC case design | Midi Tower |

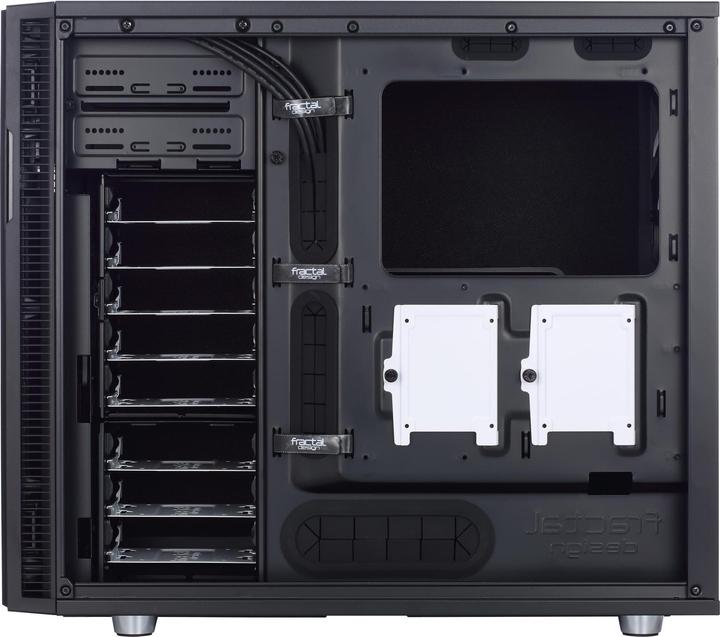

Number of 3.5" drive slots (internal) | 8 x |
"Number of 5.25"" drive slots" | 2 x |
Max. length graphics card | 440 mm |

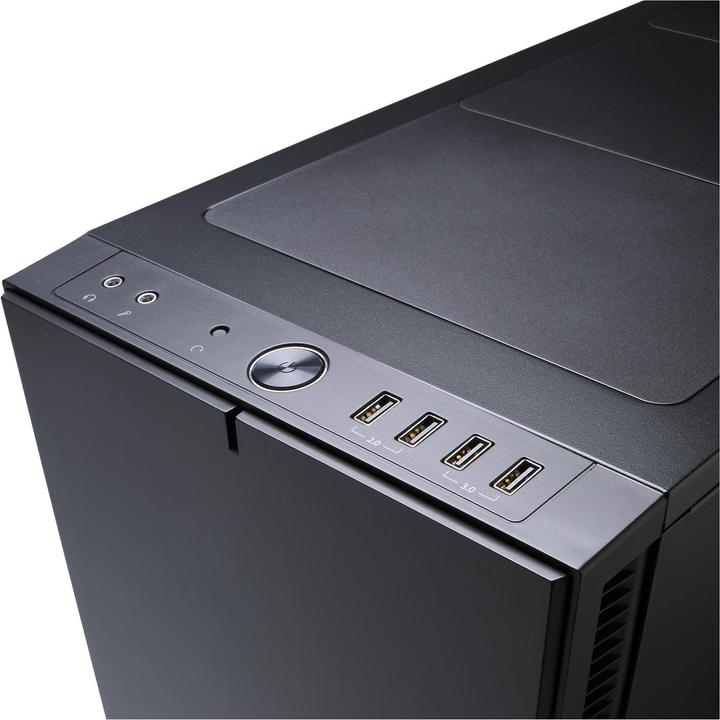

Front connectors | Headphones, Microphone, USB 2.0, USB 3.0 |
PC case features | Quick-release fastener |
Max. height CPU cooler | 180 mm |
Item number | 3452120 |
Manufacturer | Fractal |
Category | PC case |
Manufacturer no. | FD-CA-DEF-R5-BK |
Release date | 9.11.2021 |
Sales rank in Category PC case | 55 of 2668 |
Colour | Black |
Exact colour description | Black |
Material | PC |
PC case design | Midi Tower |
Form factor | ATX, Micro ATX (mATX), Mini-ITX |
"Number of 5.25"" drive slots" | 2 x |
Number of 3.5" drive slots (external) | 8 x |
Number of 3.5" drive slots (internal) | 8 x |
"Number of 2.5""/3.5"" combination slots" | 8 x |
"Number of 2.5"" drive slots" | 2 x |

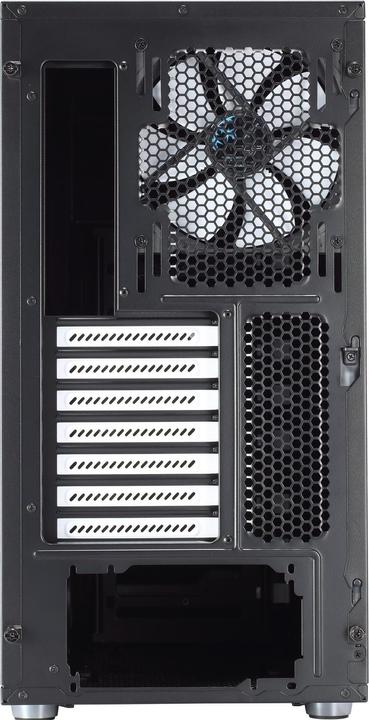

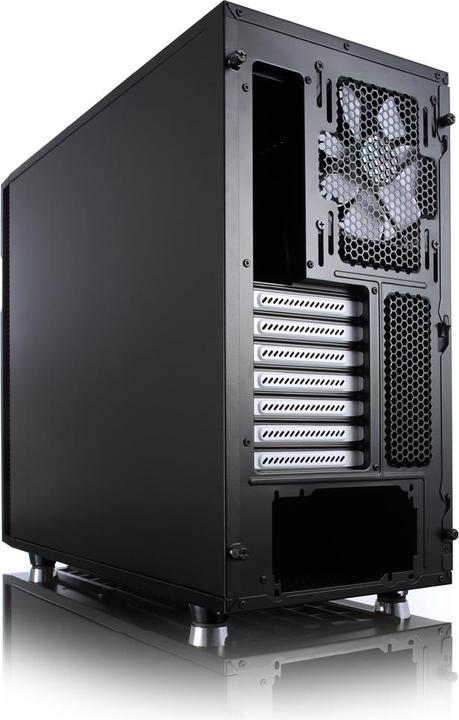

Number of expansion card slots | 7 x |
Max. length graphics card | 440 mm |
Max. height CPU cooler | 180 mm |
Max length of power supply | 300 mm |
PC case features | Quick-release fastener |
Front connectors | Headphones, Microphone, USB 2.0, USB 3.0 |
Number of fans | 2 x |
Number of fan slots | 9 x |
Fan location | Aspect, Bottom side, Front side, HDD cage, Rear side, Top side |
Connectable fans (control) | 3 |
Number of radiator mounts | 4 |
Radiator locations | Bottom side, Front side, Rear side, Top side |
Cooling properties | Water cooling possible |
Fans included | 1x 140mm |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x max. 360mm |
Fans included | 1x 140mm |
Fan mount locations | 1x 120mm, 1x 140mm |
Radiator mount locations | 1x max. 120/140mm |
Fans included | Optional fan |
Fan mount locations | 1x 120mm, 1x 140mm |
Radiator mount locations | No mounting possible |
Fans included | Optional fan |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x max. 240mm |
Fans included | Optional fan |
Fan mount locations | 3x 120mm, 3x 140mm |
Radiator mount locations | 1x max. 360/420mm |
Fan mount locations | 1x 140mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation material |
Height | 46.20 cm |
Length | 53.20 cm |
Width | 23.20 cm |
Weight | 10.70 kg |
Length | 33 cm |
Width | 53 cm |
Height | 62 cm |
Weight | 12.38 kg |
