Exsys PCI-E to 4x PCIe Expansion Box

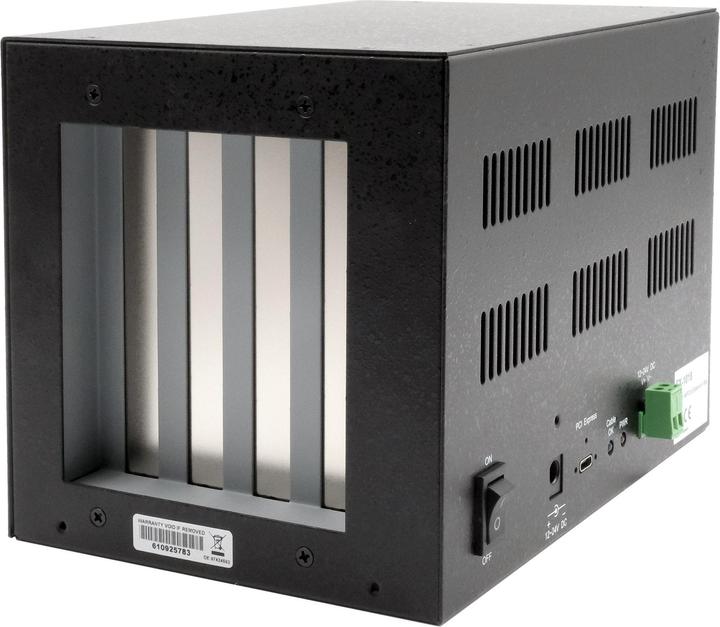

The EX-1018 is an external expansion box with four half-length PCI Express slots for expanding the slots of a desktop computer or server. It connects to the proprietary USB-C host card via a screwable USB-C cable. The EX-1018 supports standard PCI Express x1 I/O cards (e.g., serial, parallel, USB, FireWire, etc.) with 5 and 3.3 volts. Graphics cards are not supported. The package includes the PCIe host adapter card, a USB-C connection cable, the expansion box, and a 12V/3A power adapter. Power can also be supplied via the terminal block (12-24 VDC). No drivers or software are required for installation.

Note: The USB-C cable is only for connecting the box to the PCIe host adapter card. The box cannot be directly connected to the USB-C port of a laptop or PC.

• 4x PCIe slots expandable via one PCIe slot from the computer
• Supports both 5V and 3.3V add-on cards
• Fully compliant with PCI Express 2.0 specifications
• PCI Express Advanced Error Reporting Capability including ECRC

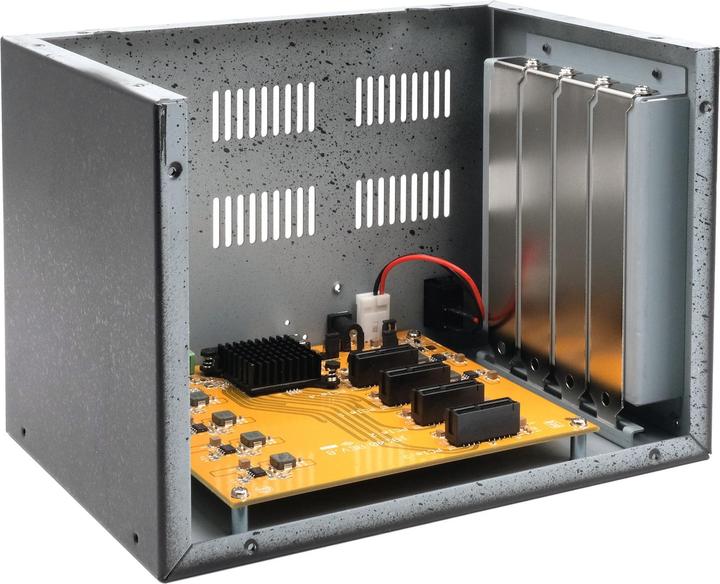

• Sturdy metal housing, suitable for industrial applications
• Supports Extended Virtual Channel (VC) and Active State Link Power Management
• Low profile bracket with a maximum height of 8 cm included
• Power supply: 12-24 VDC (12V/3A power adapter included)

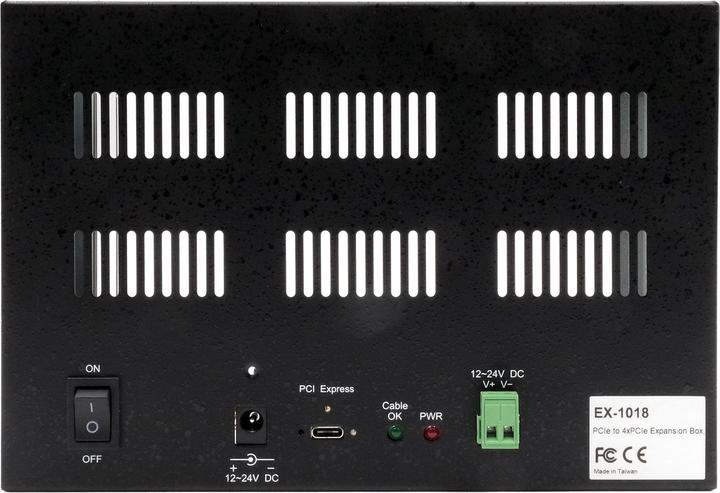

• LED indicators for power and cable

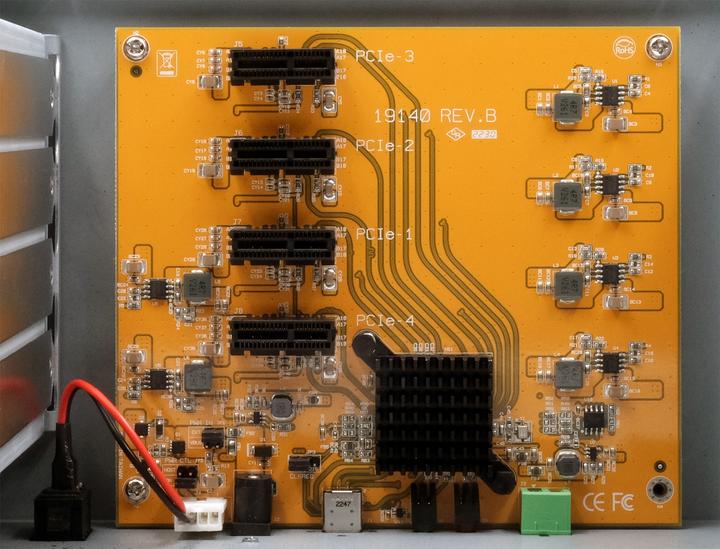

• Chipset: Texas Instruments XIO2000AZAV

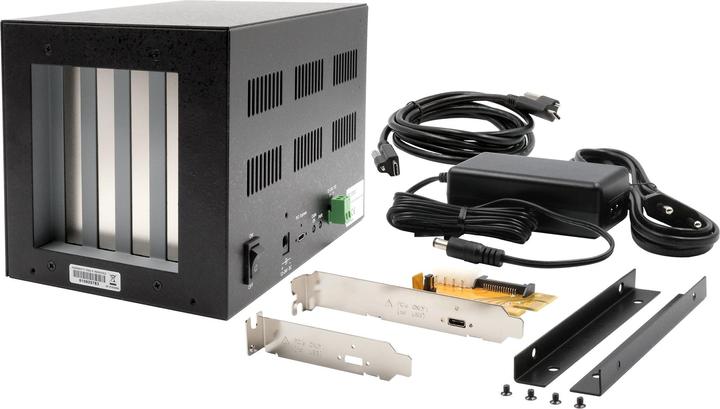

Package contents: EX-1018, PCIe host card, low profile bracket, screwable USB-C cable 1.0 m, 12V/3A power supply, manual.
