EnGenius ECW120 Cloud Managed AC

867 Mbit/s
Delivered between Wed, 28.5. and Sat, 14.6.

Product details

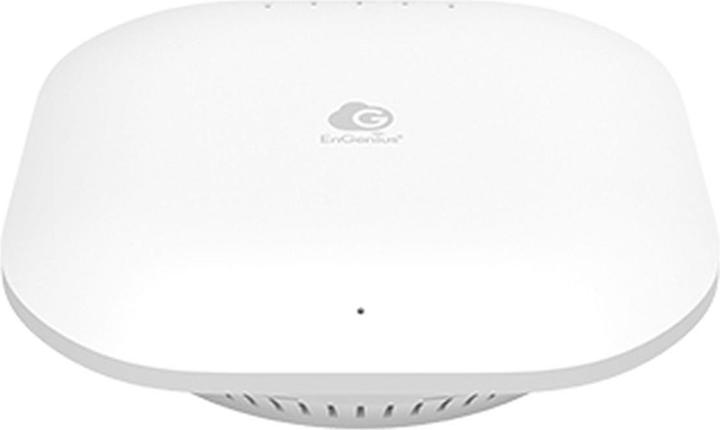

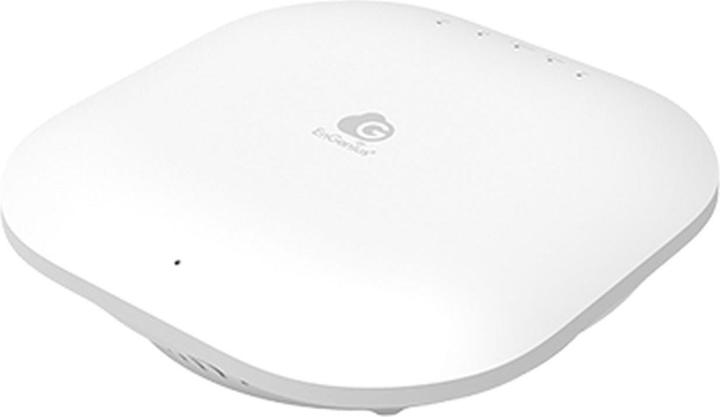

The EnGenius ECW120 is a cloud-managed access point designed for indoor use. With support for dual-band Wi-Fi and a maximum data transfer rate of up to 867 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band, this device provides a reliable and powerful network connection. The ECW120 is equipped with various security protocols, including WPA2, to ensure secure data transmission. Thanks to its Power over Ethernet (PoE) functionality, the access point can be easily installed without the need for a separate power supply. With a compact design and the option for wall or ceiling mounting, the ECW120 is ideal for various applications in offices, schools, or other facilities that require stable Wi-Fi coverage.

  • Dual-band Wi-Fi with up to 867 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band
  • Supports WPA2 encryption for enhanced security
  • Power over Ethernet (PoE) for easy installation
  • Cloud management for centralized administration and monitoring
  • Mesh-capable for extended network coverage.

Key specifications

Wi-Fi standard
Wi-Fi 5 / 802.11ac
Wi-Fi frequency band
Dual band
PoE Standard
802.3af (PoE)
Area of application
Indoor
Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Item number
13916036

General information

Manufacturer
EnGenius
Category
Access points
Manufacturer no.
1102A1188314
Release date
2.10.2020

Access point properties

Number of antennas
2 x
Antenna gain
5 dB
Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Access Point Functions
Mesh capablePoE capable

Wi-Fi standard

Wi-Fi standard
Wi-Fi 5 / 802.11ac
5 GHz transfer rate
867 Mbit/s
2.4 GHz transfer rate
400 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPAWPA-EAPWPA2WPA2-AES

Application range

Area of application
Indoor
Installation place
CeilingWall

Power supply

Power supply
Electrical connection
PoE Standard
802.3af (PoE)
Power consumption
12 W

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation kit

Product dimensions

Length
16.15 cm
Width
16.15 cm
Height
4.15 cm
Weight
362.80 g

Package dimensions

Length
21 cm
Width
20.80 cm
Height
9.50 cm
Weight
581 g
