Elite SEC3710DP - Sector Antenna 3.52 - 3.84 GHz, FLAT PANEL, 2x2 MIMO

SEC3710DP - Sector Antenna 3.52 - 3.84 GHz, FLAT PANEL, 2x2 MIMO

ANTENNA KEY FEATURES

• Broadband: VSWR <2.0 for 3.52 - 3.84 GHz

• V: >20 deg, H: >120 deg

• Front-to-back ratio better than 18 dB

• Port-to-port isolation better than 35 dB

ANTENNA APPLICATIONS

• Wireless infrastructure

• Industrial and transport vehicles

• Indoor and outdoor applications including future 5G networks

ELECTRICAL PROPERTIES

• Frequency range: 3.52 - 3.84 GHz

• Gain:10 dBi

• Polarization: H&V

• Beam width horizontal: 120°

• Beam width vertical: 20°

• VSWR: < 2.0

• Impedance: 50 ohm

• Front-to-back ratio: >18 dB

• Port isolation: >35 dB

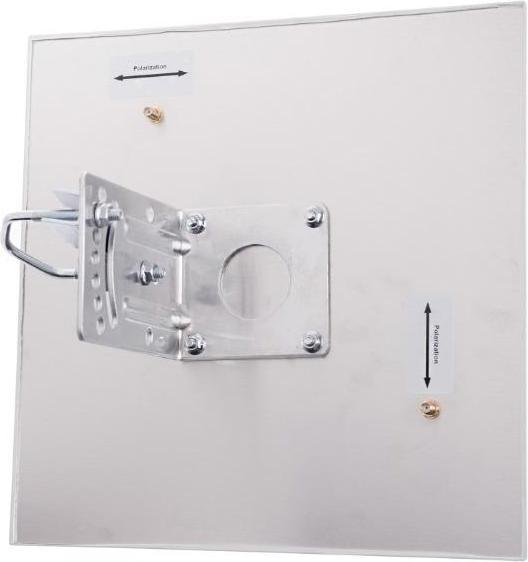

MECHANICAL PROPERTIES

• Connector: 2x N female (SMA possible)

• Wind load: 150 km/h

• Mounting pole : 5.5 cm/2.16

• RoHS compliant: Yes

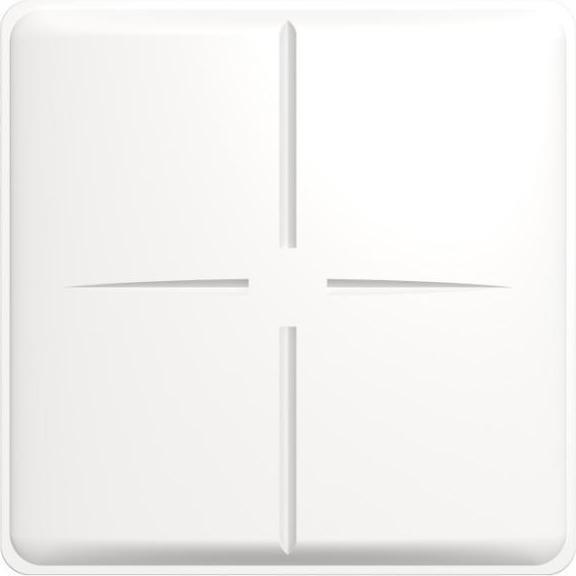

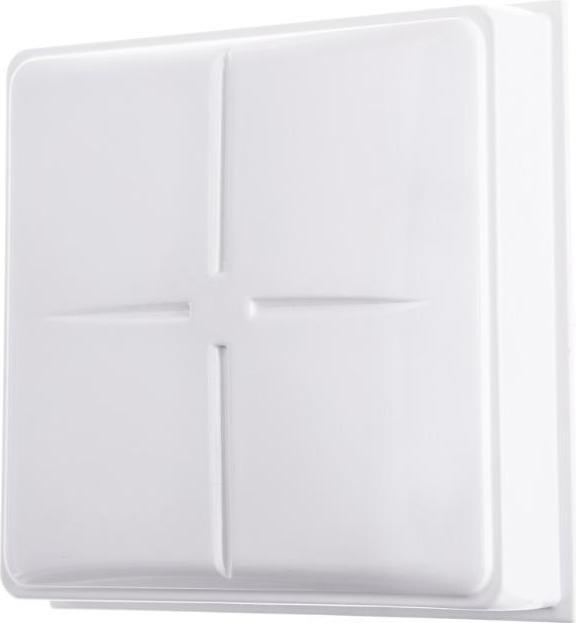

ENCLOSURE PROPERTIES

• Material: UV protected PVC

• Colour: White

• Outside dimensions: 287 x 287 x 72 mm / 11.29 x 11.29 x 2.83"

• Weight: 1.3 kg/2.87 lbs

• Temperature range: -40°C to +80°C/-40°F to +176°F

• Lightning protection: DC ground.
