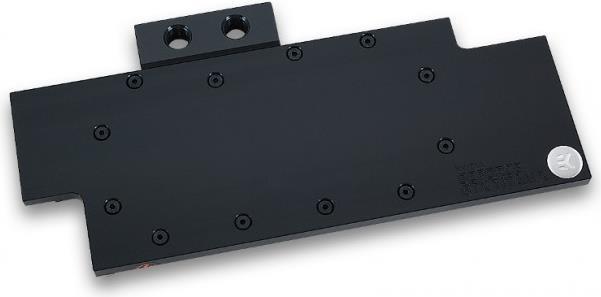

EKWB EK-FC Titan X/980 Ti

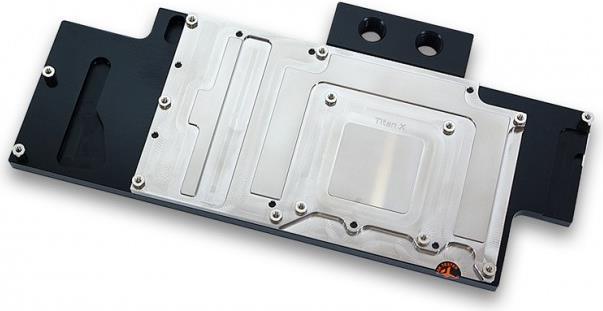

This is a full-block design that covers all relevant heat sources of the graphics card, effectively cooling the GPU, memory, and voltage regulators. It utilizes electrolytic copper and an optimized channel structure to transfer heat efficiently. For better protection and a unique appearance, the copper in this version is coated with a silver nickel layer.

The cover is made of acetal, a robust and heat-resistant specialty plastic. The connection terminal features four openings (G1/4-inch threads). Thanks to the flat design of the cooler, connecting multiple graphics cards in an SLI configuration is also easily possible (though it is not compatible with EK-FC Bridge or EK-FC Link).

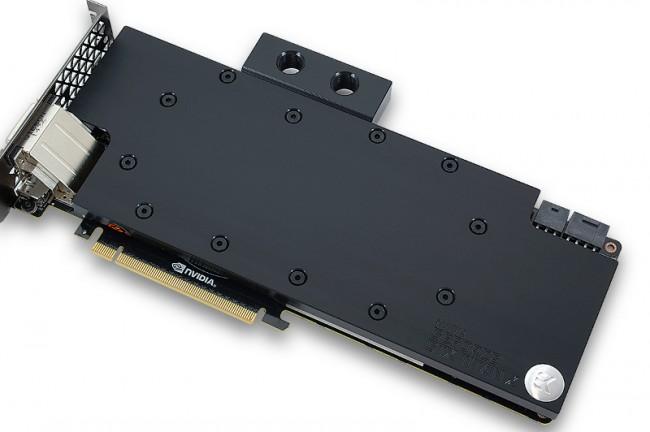

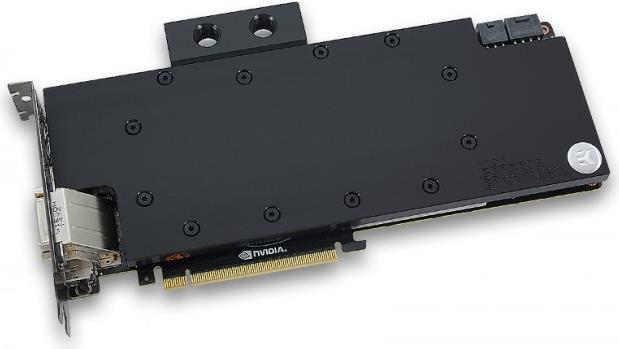

Notes: To integrate it into the cooling circuit, fittings are required, which are not included in the delivery. However, 1 g of thermal paste and thermal pads are already included to establish contact between the cooler and the graphics card. It is important to note that the cooler is only suitable for NVIDIA graphics cards of the GeForce GTX Titan X and GTX 980 Ti reference design (NVA-PG600)! The original cooler must be removed before installation, which voids the manufacturer's warranty!

Note: This cooler is compatible with the Nvidia GeForce GTX 980 Ti in reference design, even though the logo on the cooler emphasizes its suitability for the Nvidia GeForce Titan X.
