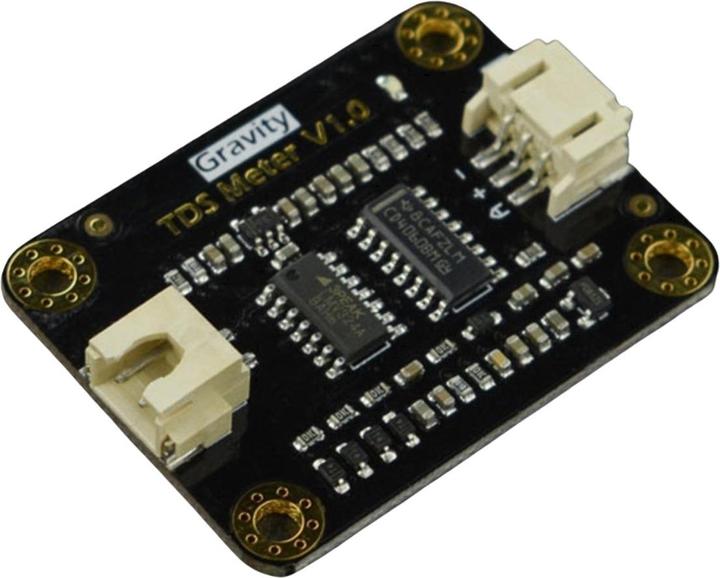

DFRobot Gravity Analogue TDS Sensor Water Purity Meter

The Gravity: Analog TDS Sensor / Meter for Arduino allows for the measurement of the TDS value using a TDS pen, indicating how many soluble solids are dissolved in one liter of water and serving as an indicator of water purity. Unlike expensive professional TDS meters, this device is a cost-effective alternative for measuring TDS values. The meter is waterproof, making it ideal for applications in water quality analysis and hydroponics.

Features:
Good compatibility: Output 0–2.3 V analog signal output, compatible with 5 V or 3.3 V controllers.
AC excitation source: effectively prevents probe polarization.
Waterproof probe.
Easy to use: Arduino-compatible, simple connection, plug and play without soldering.

Technical Details:
Manufacturer: DFRobot.
Manufacturer SKU: SEN0244.
Signal transmission board.
Input voltage: 3.3–5.5 V.
Output voltage: 0–2.3 V.
Operating current: 3–6 mA.
TDS measurement range: 0–1000 ppm.
TDS measurement accuracy: ± 10 % F.S. (25 °C).
Module interface: PH2.0-3P.
Electrode interface: XH2.54-2P.
TDS probe.
Number of pins: 2.
Total length: 83 cm.
Connection interface: XH2.54-2P.
Color: Black.
Other: Waterproof probe.

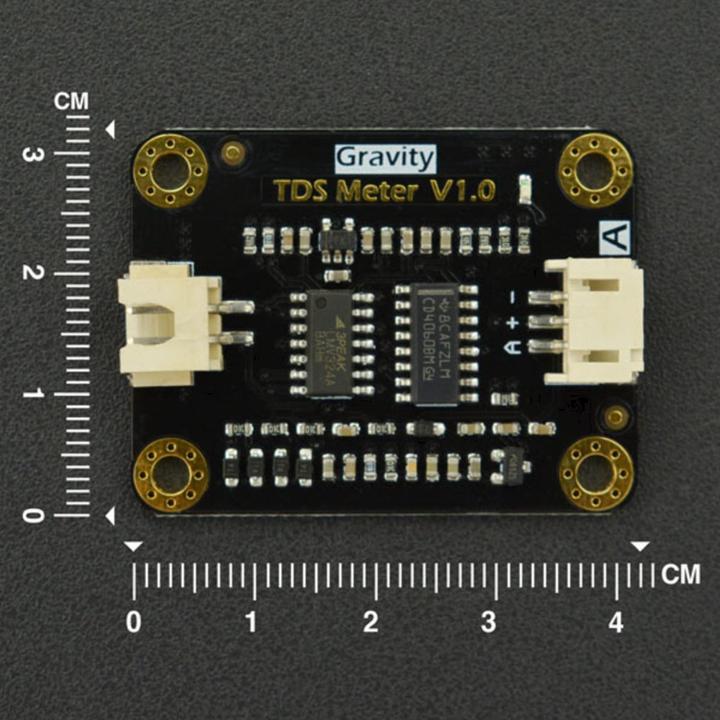

Dimensions: 42 x 32 mm.
Weight: 35 g.

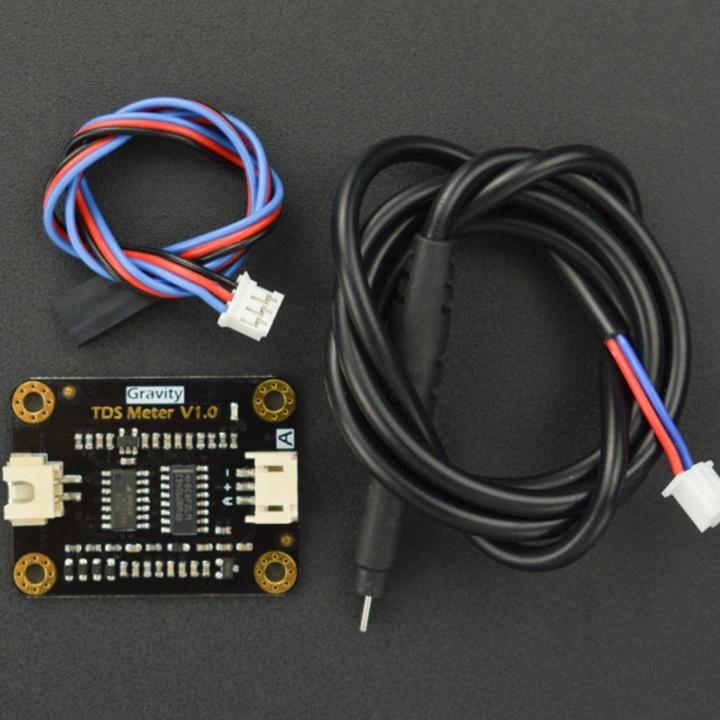

Delivery includes:
1x Gravity Analog TDS Sensor Meter for Water Purity.
1x Waterproof TDS Probe.
1x 30 cm Gravity 3-pin Analog Sensor Cable PH2.0 to XH2.54.
