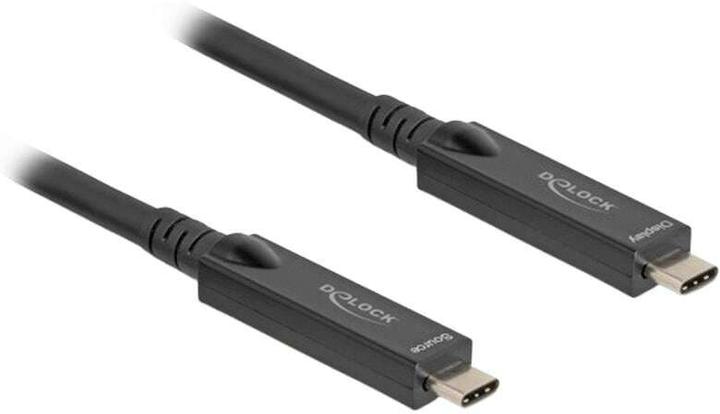

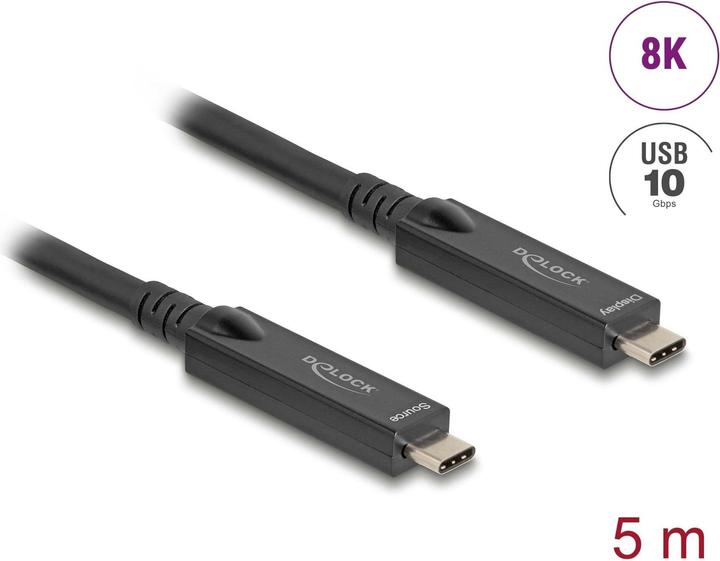

Delock Active optical USB-C 8K video + data + PD cable 5 m

This USB cable from Delock enables the connection between devices with a USB Type-C™ port and a PC or notebook with an available USB Type-C™ port.

Active Optical Cable
This active optical cable uses fiber optics to transmit high-speed signals. Compared to traditional copper cables, it is softer, thinner, lighter, and can transmit signals losslessly over longer distances.

DisplayPort 2.1 with 4 Lanes
The cable is suitable for connecting a USB-C™ monitor with a resolution of up to 8K Ultra HD (7680 x 4320 @ 60 Hz) to a computer with a USB-C™ interface and DisplayPort Alternate Mode support. When connected to a docking station that operates DisplayPort and USB at 10 Gbps simultaneously, a resolution of 3840 x 2160 @ 120 Hz is possible.

USB with 10 Gbps
The active optical cable allows data transfer rates of up to 10 Gbps when connecting USB 10 Gbps compatible devices. Of course, USB 2.0 devices can also be connected.

USB Power Delivery support up to 60 Watts
With support for the USB Power Delivery standard, connected devices can be powered with up to 60 W (20 V / 3 A).

Note
This cable is only compatible with DisplayPort (DP Alt-Mode) devices and not with Thunderbolt™ devices.

Technical Specifications

• Connectors: 2 x USB 10 Gbps USB Type-C™ plugs
• Active optical cable: Fiber optic/copper hybrid cable
• Supports 2 / 4 Lanes with DisplayPort 1.4
• Supports Display Stream Compression 1.2 (DSC)
• Supports DP Alt Mode
• Transmission of audio and video signals
• Maximum resolution (depending on the system and connected hardware):
• DisplayPort 2.1 with DSC: up to 7680 x 4320 @ 60 Hz (4 Lanes)
• DisplayPort 1.4 with DSC: up to 3840 x 2160 @ 120 Hz (2 Lanes).
