Product details

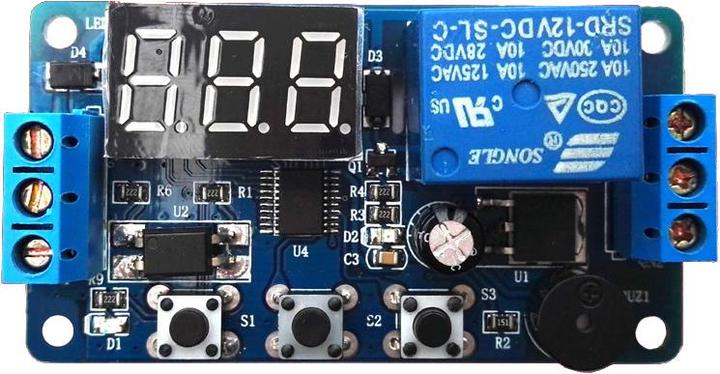

Relay module with timer function from Deek-Robot
This relay module can be set to four different timer variants. For example, it can be configured to keep the relay on for a specific time after a trigger before turning off again. It can also be set to turn on the relay only after a certain time following a trigger, and keep it on for a specified duration. This programming is retained even after a power failure.

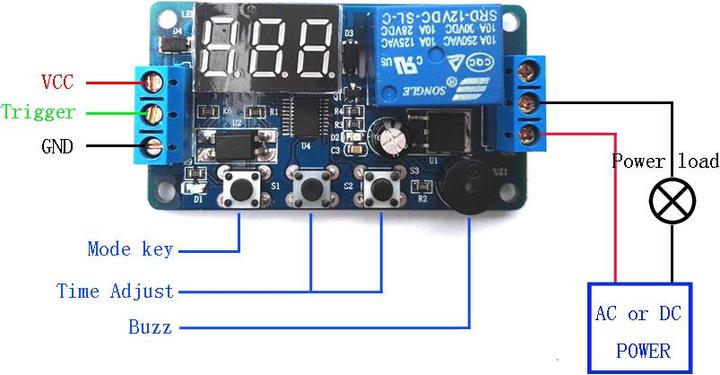

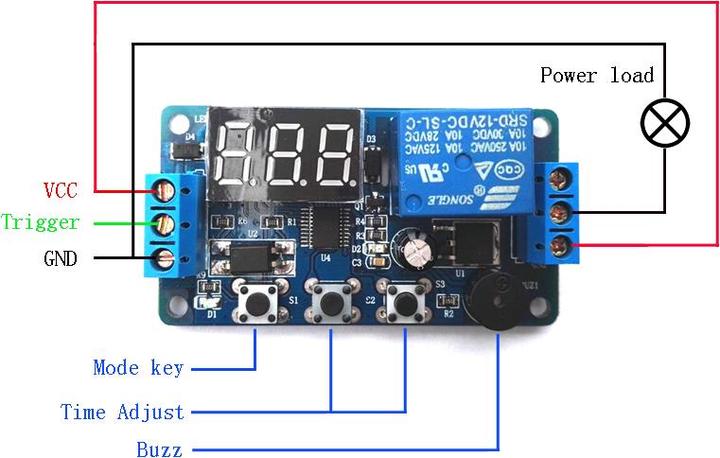

The relay must be operated with a voltage between 10V and 16V DC (ideal: 12V). The trigger input responds from 4V to 12V and can thus be switched by a standard 5V microprocessor.
The module is delivered fully assembled; only the relay itself needs to be soldered.
Technical specifications:
- Size: 64.2 mm x 34.8 mm x 18.5 mm
- Weight: approx. 26 g
- Timer: from 0 to 999 seconds
- Operating voltage: 12V (10V - 16V)
- Trigger voltage: 4V - 20V
- Consumption: 20 mA - 50 mA
- Relay specifications: 30VDC - 250VAC, 10A.
