Product details

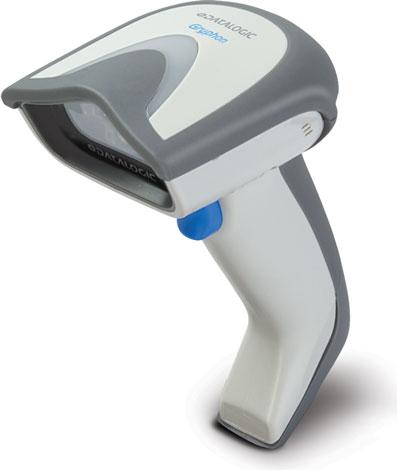

With extensive features and model options, the Gryphon series scanners from Datalogic ADC represent the top tier of data capture devices for universal use. The Gryphon I Linear Imager delivers advanced reading and decoding performance for a wide range of applications.
The Gryphon GD4100's ability to capture barcodes from direct contact up to over 1.0 m enhances productivity and improves ergonomics for users. The wide scan angle allows for the reading of very wide codes. The improved decoding performance increases throughput and speeds up the capture of poorly readable or damaged codes. These features, combined with the ability to decode low-resolution barcodes down to 3 mils, establish the Gryphon GD4100 as an extremely powerful data capture solution.
Scanner type | Hand-held scanner |
Connections | RS-232, USB |
Signal transmission | Cable |
Item number | 3484092 |
Manufacturer | Datalogic |
Category | Barcode scanners |
Manufacturer no. | GD4130-WH |
Release date | 18.12.2014 |
External links |
Colour | White |
Exact colour description | White |
Scanner type | Hand-held scanner |
Barcode Scanner Version | Scanner only |
Scanning method | Imagers |
Barcode Scanner Features | Keyboard inscription |
Connections | RS-232, USB |
Signal transmission | Cable |
Protection type (IP code) | IP52 |
Max. Drop height | 1.80 m |
Scanner functions | 1D barcodes |
Minimum print contrast | 15 % |
read indicators | Beeper, Datalogic "Green Spot" read confirmation, Good Read LED |
Max- Scan distance | 100 cm |
Scan performance | 325 Scans/s |
Stack codes | All GS1 DataBar Codes, EAN/JAN |
Read angle lengthwise max. | 65° |
Read angle cross max. | 65° |
CO₂-Emission | |
Climate contribution |
Scope of delivery | USB cable |
Length | 181 mm |
Width | 100 mm |
Height | 71 mm |
Weight | 169 g |
Length | 20.80 cm |
Width | 10.60 cm |
Height | 9.50 cm |
Weight | 264 g |
Specifications may include unverified machine translations.
