Product details

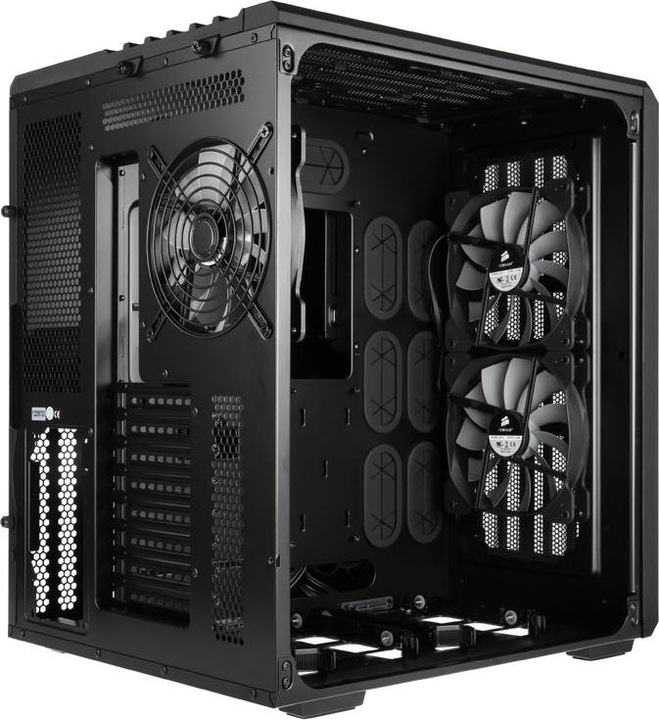

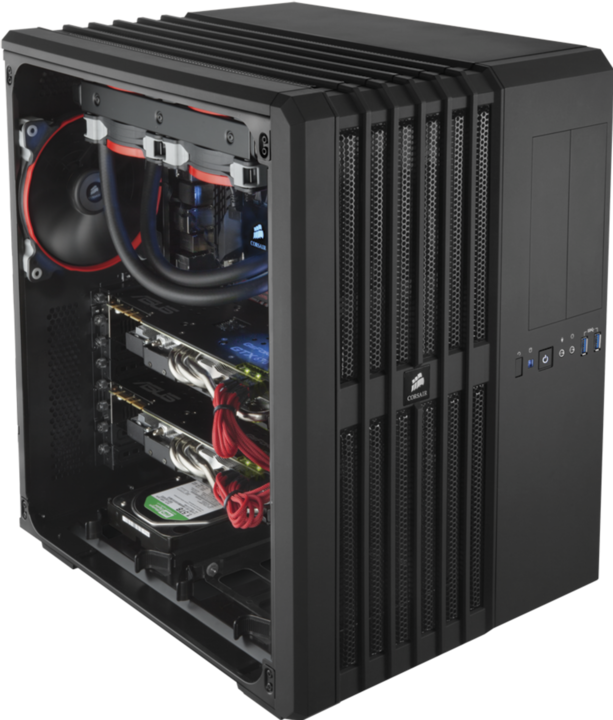

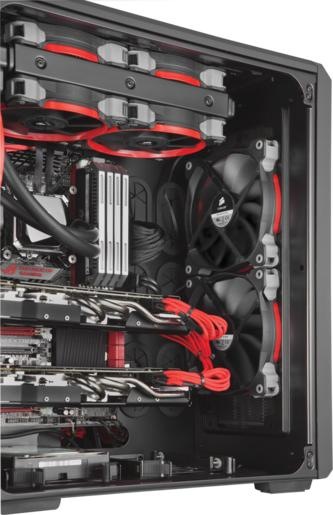

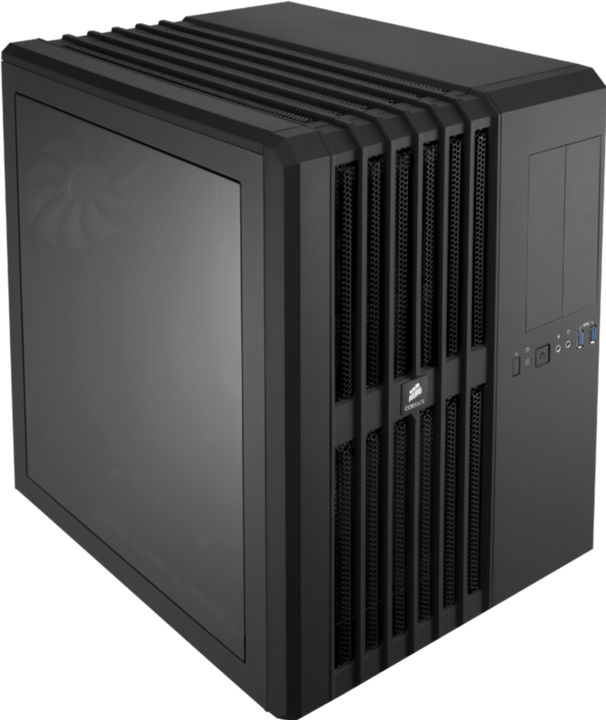

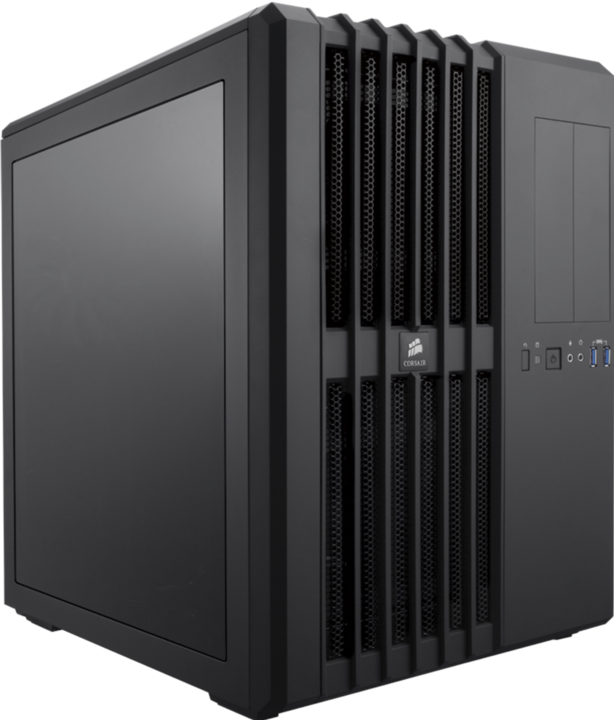

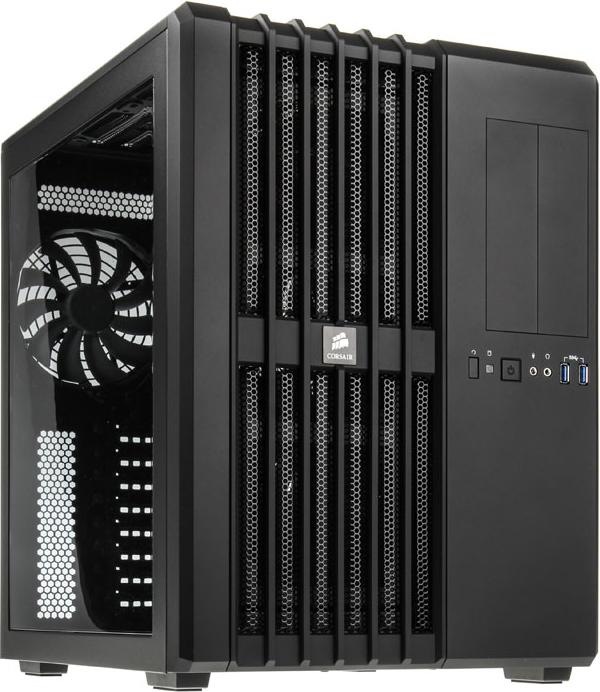

The Corsair Carbide Air 540 is a versatile cube case designed for optimal cooling and user-friendly handling. It supports various motherboard formats, including Mini-ITX, microATX, ATX, and E-ATX, providing ample space for high-performance components. With a sleek black design and a windowed side panel, it allows for an appealing presentation of the hardware. The thoughtful interior architecture promotes effective cable management, ensuring a tidy appearance. The case is equipped with multiple fans that ensure high airflow and offers space for additional cooling options, including water cooling. Dust filters contribute to the longevity of the components by minimizing dust ingress. The Corsair Carbide Air 540 is thus an excellent choice for anyone looking for a powerful and aesthetically pleasing PC case.
- Supports various motherboard formats up to E-ATX
- Optimized cooling with multiple pre-installed fans

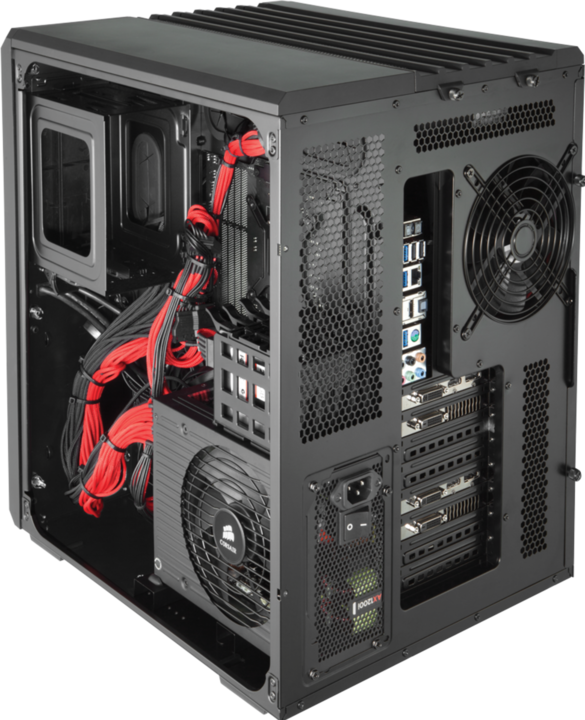

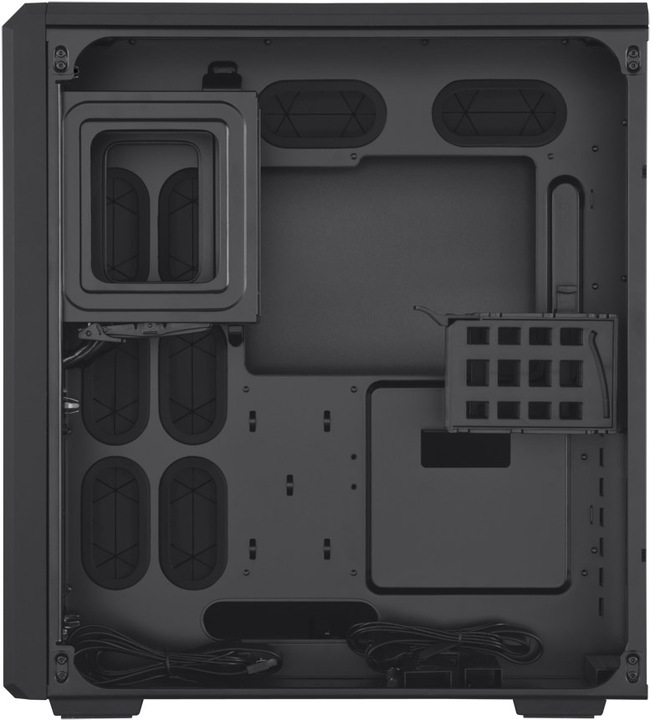

- Efficient cable management for a clean interior view
- Integrated dust filters for better component protection

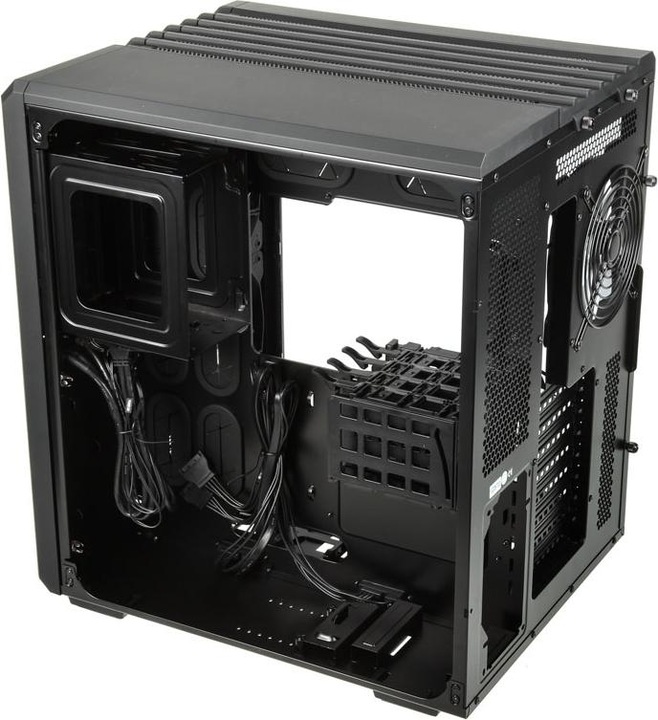

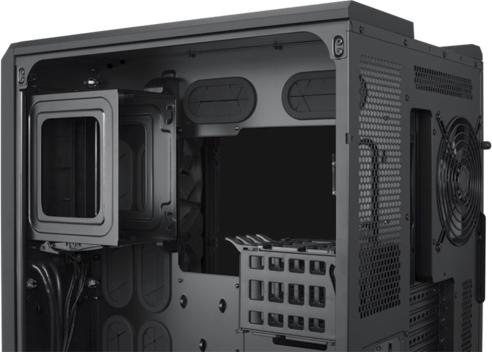

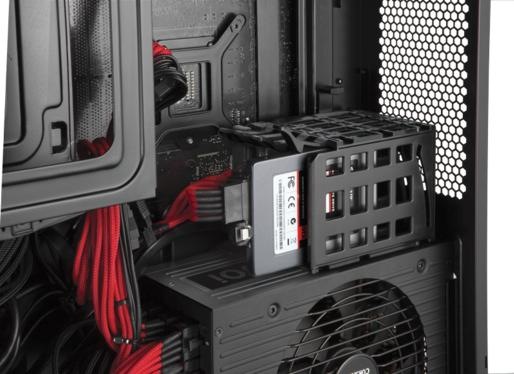

- Modular HDD cage for flexible storage options.
PC case design | Cube housing |
Number of 3.5" drive slots (internal) | 2 x |
"Number of 5.25"" drive slots" | 2 x |
Max. length graphics card | 320 mm |

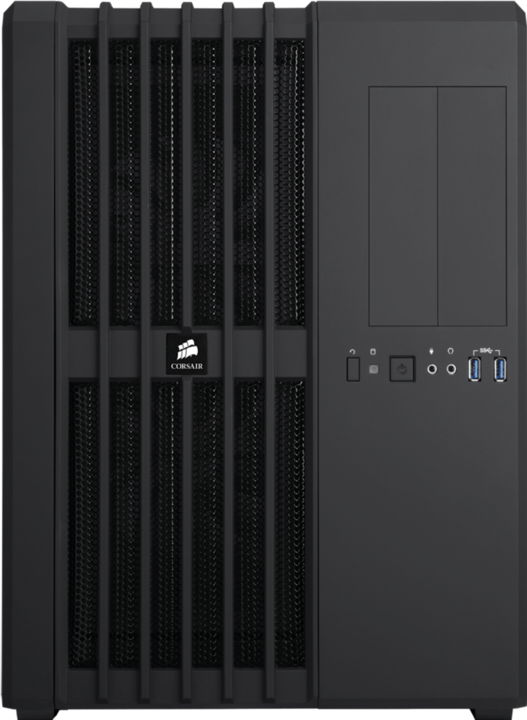

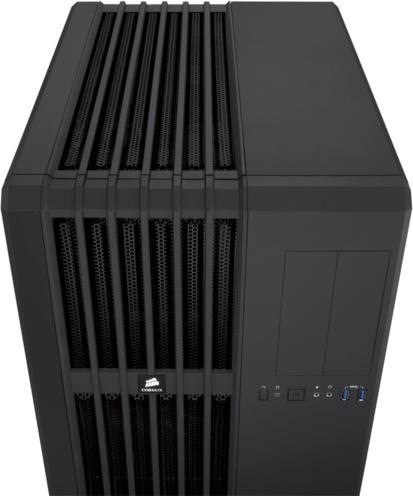

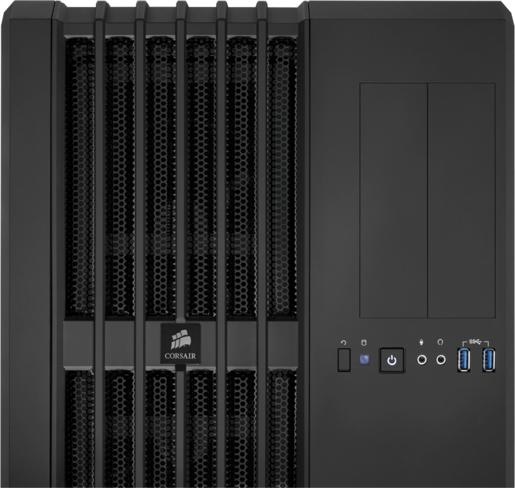

Front connectors | Headphones, Microphone, USB 3.0 |
PC case features | Modular HDD cage, Side windows |
Max. height CPU cooler | 170 mm |
Item number | 452863 |
Manufacturer | Corsair |
Category | PC case |
Manufacturer no. | CC-9011030-WW |
Release date | 19.7.2013 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Steel |
PC case design | Cube housing |
Form factor | ATX, E-ATX, Micro ATX (mATX), Mini-ITX |
"Number of 5.25"" drive slots" | 2 x |
Number of 3.5" drive slots (external) | 2 x |
Number of 3.5" drive slots (internal) | 2 x |
"Number of 2.5""/3.5"" combination slots" | 2 x |
"Number of 2.5"" drive slots" | 4 x |

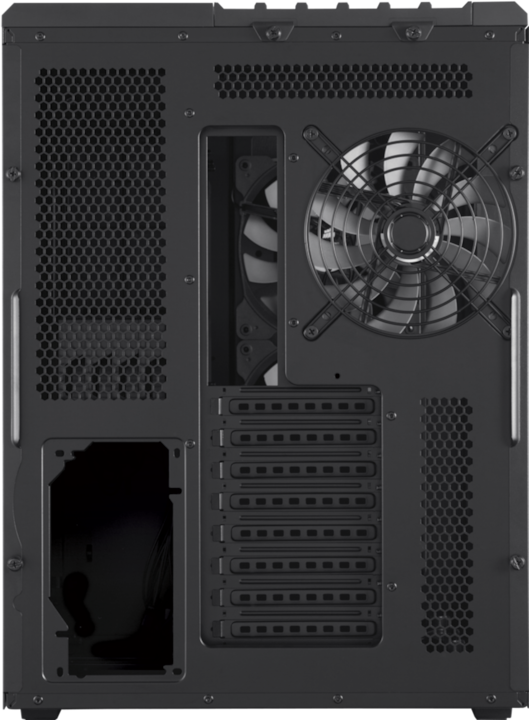

Number of expansion card slots | 8 x |
Max. length graphics card | 320 mm |
Max. height CPU cooler | 170 mm |
Max length of power supply | 200 mm |
PC case features | Modular HDD cage, Side windows |
Front connectors | Headphones, Microphone, USB 3.0 |
Number of fans | 3 x |
Number of fan slots | 6 x |
Fan location | Front side, Rear side, Top side |
Number of radiator mounts | 2 |
Radiator locations | Front side, Top side |

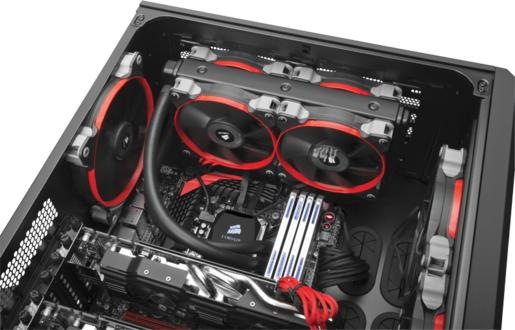

Cooling properties | Water cooling possible |

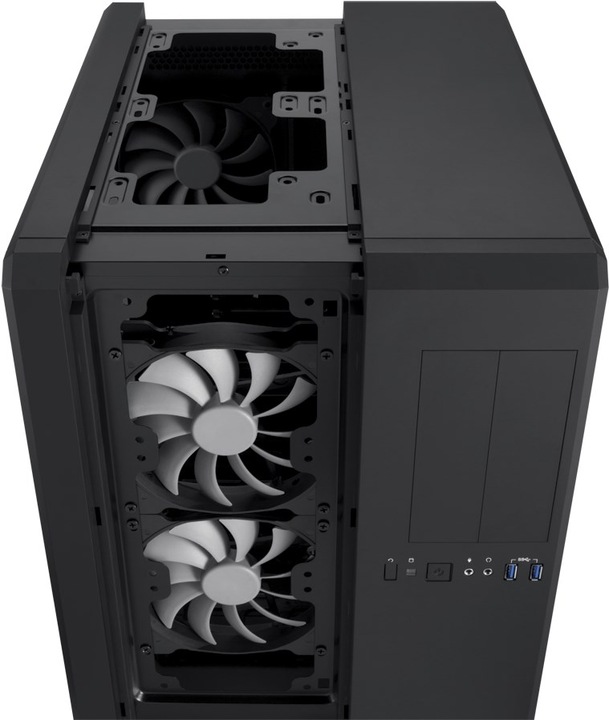

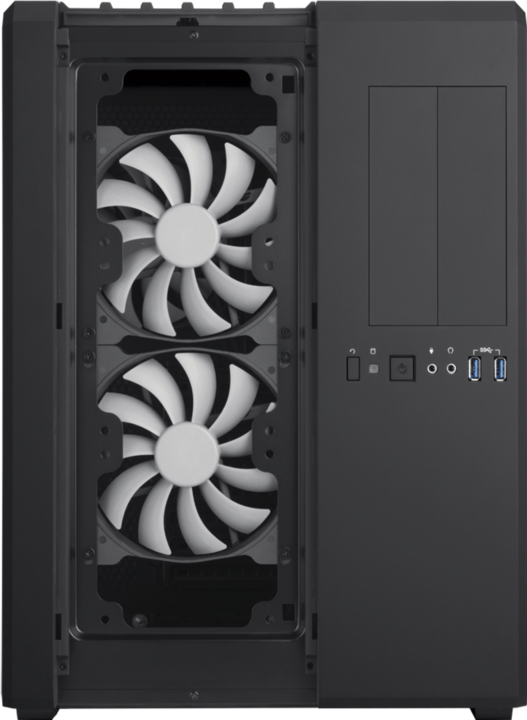

Fans included | 2x 140mm |
Fan mount locations | 2x 140mm, 3x 120mm |
Radiator mount locations | 1x max. 120/140mm, 1x max. 240/280/360mm |
Fans included | 1x 140mm |
Fan mount locations | 1x 120mm, 1x 140mm |
Radiator mount locations | No mounting possible |
Fans included | Optional fan |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x max. 120/140mm, 1x. max. 240/280mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation material |
Height | 45.80 cm |
Length | 41.50 cm |
Width | 33.20 cm |
Weight | 7.20 kg |
Length | 51 cm |
Width | 48.50 cm |
Height | 40.50 cm |
Weight | 8.98 kg |
