Cooltek G3

ATX, mATX
Currently out of stock

Product details

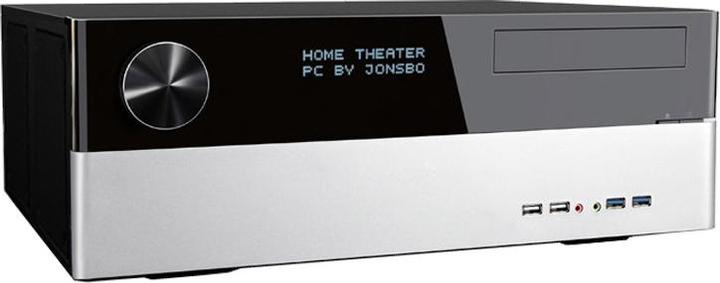

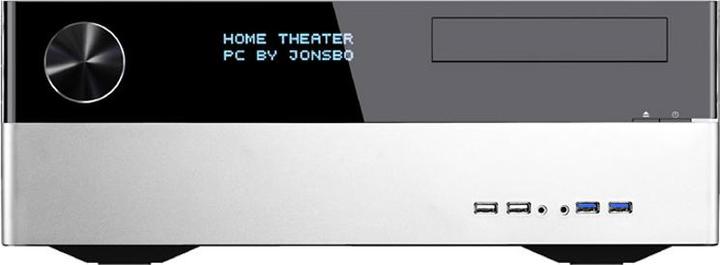

The G3 is a fully-fledged HTPC case with a depth of just 351 mm. This makes it roughly the same dimensions as a typical receiver, allowing it to blend seamlessly into any HiFi environment. The front features a mirrored acrylic surface and a prominent volume control, giving the case a particularly elegant appearance.

Focusing on home entertainment use, the case includes a single drive bay. With a flip-down cover, any CD-ROM/DVD/BluRay drive is discreetly integrated into the uniform design, ensuring that the overall visual impression remains intact even when using drives of different colors.

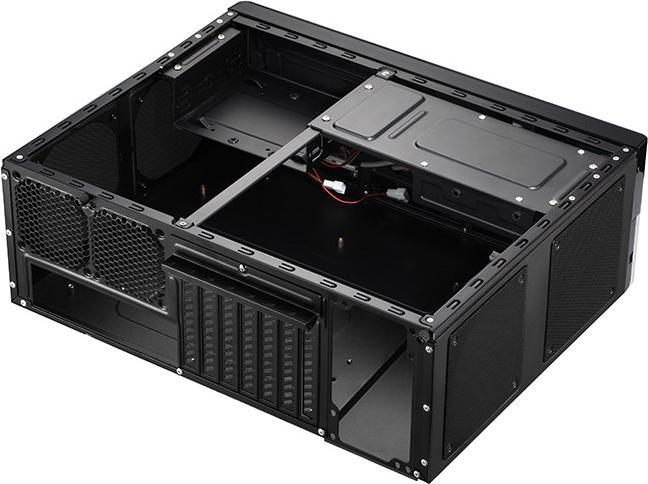

The case is made from 0.8 mm thick SECC steel. The use of high-quality materials provides the G3 with exceptional stability. A brace connecting the front to the back of the case further enhances its remarkable durability. This makes it easy to position additional HiFi components on the G3 without risking dents in the case top.

Key specifications

PC case design
Desktop housingHTPC Case
Number of 3.5" drive slots (internal)
3 x
"Number of 5.25"" drive slots"
1 x
Max. length graphics card
315 mm
Front connectors
2x USB 2.02x USB 3.0HeadphonesMicrophone
Max. height CPU cooler
135 mm
Documents
Item number
8990661

General information

Manufacturer
Cooltek
Category
PC case
Manufacturer no.
600046495
Release date
20.6.2018

Colour

Colour
BlackWhite
Exact colour description
BlackWhite

Material

Material group
Metal
Material
Stainless steel

PC case properties

PC case design
Desktop housingHTPC Case
Form factor
ATXMicro ATX (mATX)
"Number of 5.25"" drive slots"
1 x
Number of 3.5" drive slots (external)
0 x
Number of 3.5" drive slots (internal)
3 x
"Number of 2.5""/3.5"" combination slots"
3 x
"Number of 2.5"" drive slots"
0 x
External Hard Drive Dock 3.5'''
0 x
Hard drive dock external 2.5''
0 x
Number of expansion card slots
7 x
Max. length graphics card
315 mm
Max. height CPU cooler
135 mm

Connections

Front connectors
2x USB 2.02x USB 3.0HeadphonesMicrophone

Cooling properties

Number of fans
1 x
Number of fan slots
5 x
Fan location
AspectRear side

Rear side

LED colour
without LED
Fan mount locations
2x 80mm

Side

LED colour
without LED
Fan mount locations
3x 120mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
16 cm
Length
35.10 cm
Width
44 cm
Weight
5.25 kg

Package dimensions

Length
54 cm
Width
46 cm
Height
26 cm
Weight
5.60 kg
