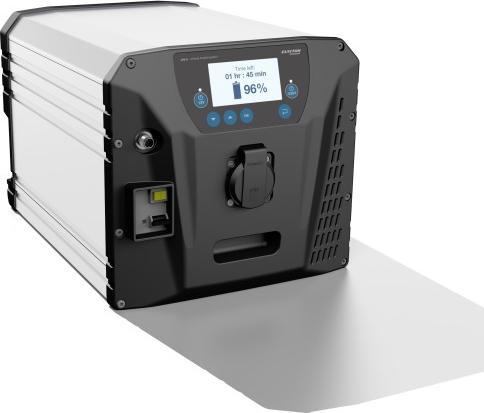

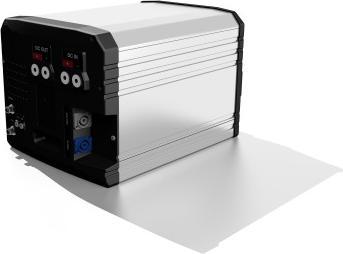

Clayton Power Energy Box LPS II 2500

All-in-one lithium power supply. The powerful and compact LPS provides power to your 230 VAC and 12 VDC devices straightforwardly, without additional equipment.

Charging via alternator. The integrated booster enables regeneration with 500 W from any alternator.

Charging via solar panels. Connect solar panels directly. The integrated solar charge controller additionally enables regeneration by sunlight with 400 W.

Charging via mains. Connect to the mains; the built-in intelligent charger regenerates with 750 W.

All-in-one and everything integrated. The following is integrated in the LPS II 2500: 1 kWh lithium-ion battery, 230 V sine wave inverter, booster (charging via alternator), 400 W MPPT charge controller (charging via solar panels), intelligent charger (charging via mains), relay, etc.

Technical data:

Battery type: Rechargeable Li-Ion battery system
Chemistry: LiFePO4
Capacity: 100 Ah (1280 Wh)
Usable capacity: 80 Ah (1020 Wh)
Number of cycles: 2000
Self-discharge per month: < 5%

AC input:
Voltage: 207-253 VAC
Frequency: 45-65 Hz
Power: 720 W
Plug type: NAC3 FCA

AC output:
Voltage (+- 10 %): 230 VAC pure sine wave
Frequency: 50 Hz
Power - continuous (@ 25 °C): 2000 W
Power - 10 min: 2500 W
Peak power: 4000 W
Power - AC-In connected: 3000 W
Efficiency (at 1000 W): 94 %
Power factor: 0.77
No-load consumption: 30 W
Fault current (rms): 30 mA
Plug type: NAC3 FCB

DC input:
Voltage: 11.5-32 VDC
Current: 45 A
Starting: 40 A/5 min
Plug type: Terminal - M8

Solar input:
Voltage: 15-50 VDC
Min. solar power: 5 W
Max. solar current: 15 A

General specification:
Cooling: Forced air
Operating temperature discharge: -20 ~ 50 °C
Operating temperature charge: 0 ~ 50 °C
IP classification: IP20
Protection class: I
Maximum altitude: 2000 m
Product weight: 23.5 kg
Dimensions (H x W x L): 256 x 277 x 409 mm
Instructions: Energy Box LPS II Quick Reference Energy Box LPS II.
