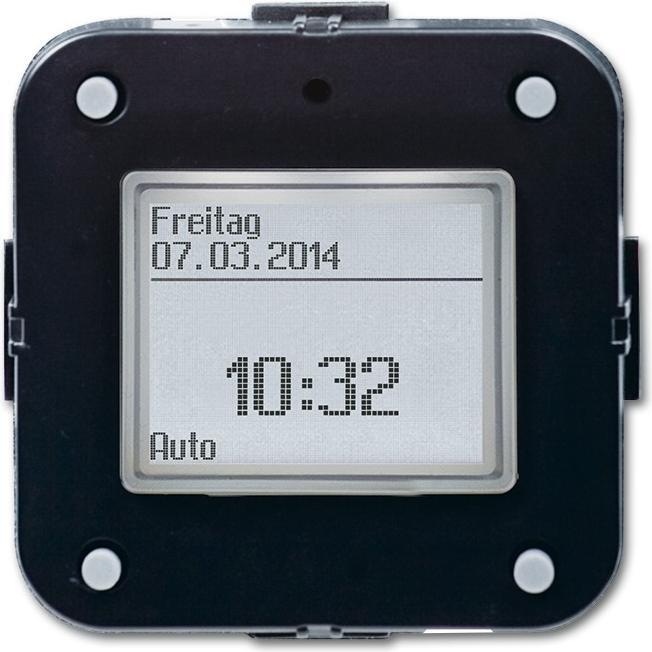

Busch-Jaeger Busch-Timer operating element 6456-101 Standard Busch-Timer

Busch-Jaeger Busch-Timer operating element 6456-101

Manufacturer: Busch-Jaeger
Designation: Busch-Timer operating element
Standard Type: 6456-101
Composition: Operating top
Integrated timer: Yes
With Astro programme: Yes
Random generator: Yes
Lock-out protection: Yes
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Suitable for protection class (IP): IP20
Power reserve: 63,000 hours
Mounting type: Clamp mounting

More details:
For manual and time-controlled switching of shutters and blinds. Features an astro programme with individual astro shift and astro blocking time. Manual operation of the shades is possible at any time. Simple setting via a high-resolution display with backlighting. Switching times, date, and time can be preset. Factory preset switching times with individual adjustment possible. Automatic summer/winter time changeover (can be switched off). Switching times and programmes are stored in a power-failure-proof memory. Power reserve for time and date exceeds 10 years. Simple switchover for manual, automatic, or holiday operation. Programming is only possible with the operating element plugged in and live. Two switching times per day for each weekday are freely adjustable. Astro switching times and regular switching times can be combined. For blind basic insert 6418 U. See corresponding central plates 6435-xx. EAN: 4011395186640.
