Berker KNX radio time switch 85745239

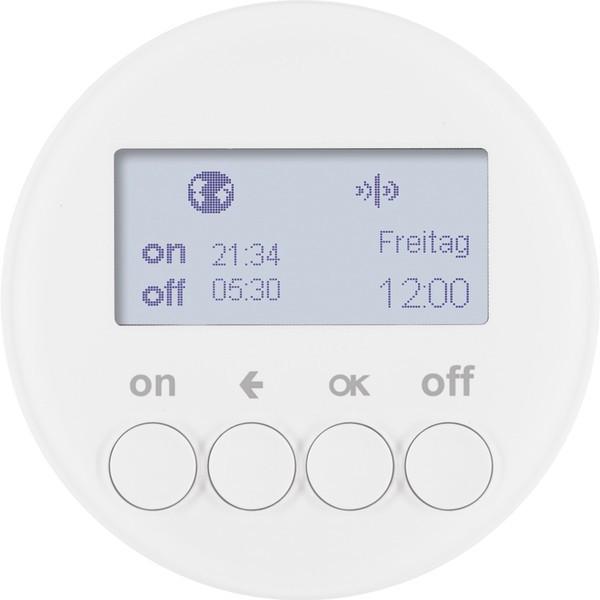

KNX wireless timer quicklink R.1/R.3 in polar white, glossy. The KNX wireless timer quicklink features a display that can be attached to compatible inserts. Integration is achieved via the KNX wireless media coupler AP into the KNX-TP system. The LC display lights up during operation and indicates the compatibility of the insert. The contrast of the LC display is adjustable.

The clock offers automatic summer/winter time switching (which can be disabled), a reset function (to factory settings), and configurable sending and/or receiving behavior. It includes a party function, does not execute automatic, wireless, and secondary commands (switching protection), has a key lock, and allows switching between manual and automatic operation.

An astro program enables switching at sunrise/sunset with city/country or coordinate input and is individually customizable. The standalone program does not execute wireless and secondary commands. The holiday program ensures random variation of switching times in automatic mode. There are two independent preset program memories that can be customized.

The menu can be set in German, English, or French. The quicklink functions include switching, two scenes, time control, push-button closing, and forced control. The easy additional function offers six scenes, dimming, a push-button control for on/off, and forced control. The ETS additional functions also include six scenes, on/off operating mode, scene time recall, time dimming value, push-button, and status display.
